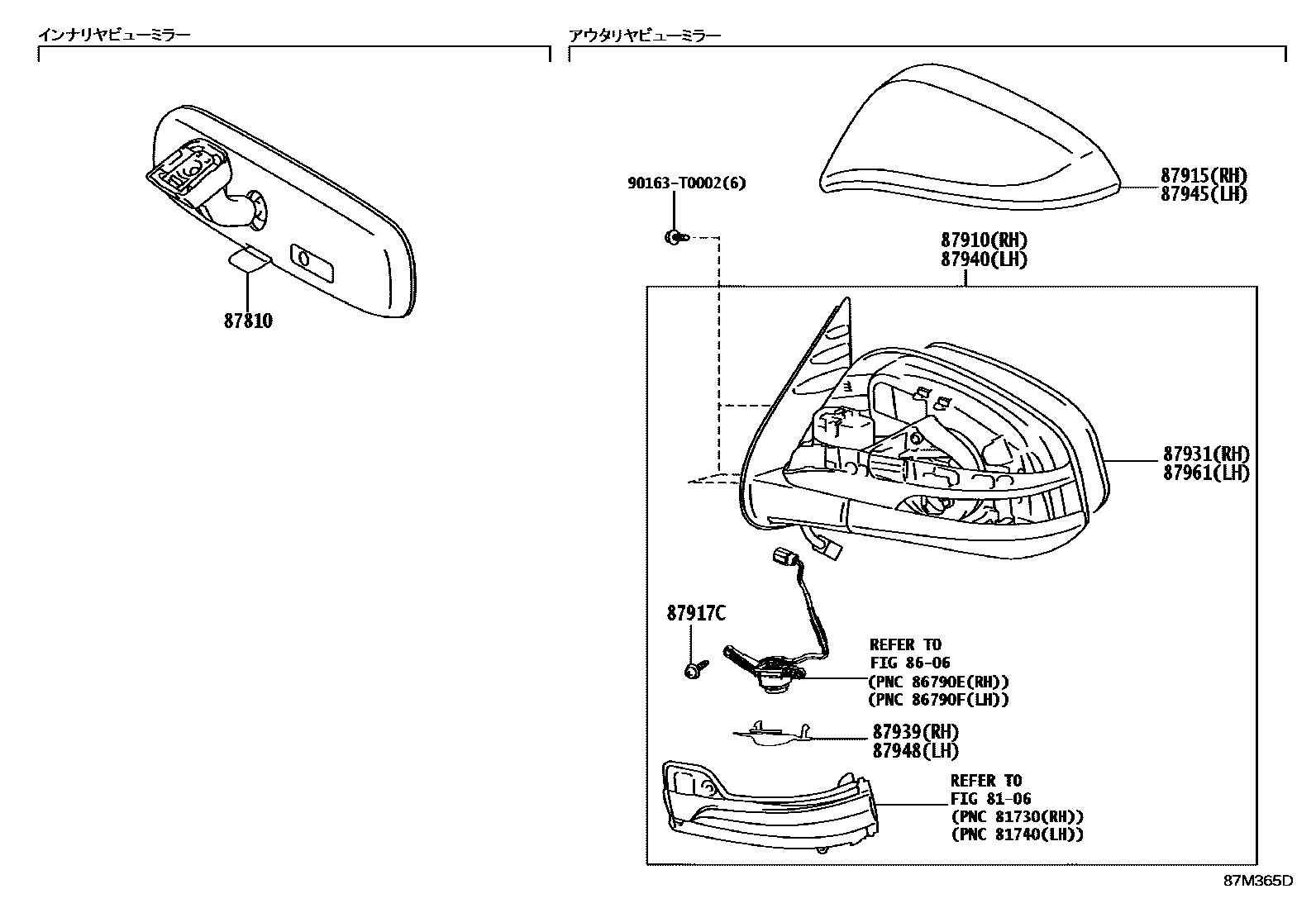

MIRROR

8106

8606

87810MIRROR ASSY, INNER REAR VIEW

main87810-06041iGUN125202308-202407

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0KP40iGUN125202308-202407

87915COVER, OUTER MIRROR, RH

main87915-0K400iGUN125202308-202407

main87915-0K420-C0iGUN125202308-202407

main87915-0K420-C2iGUN125202403-202407

87917CSCREW, OUTER MIRROR

main87917-0KM00×4iGUN125202308-202407

87931OUTER MIRROR, RH

main87931-0KC80iGUN125202308-202407

87939COVER, OUTER MIRROR HOLE, RH

main87939-0KM00iGUN125202308-202407

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0KP40iGUN125202308-202407

87945COVER, OUTER MIRROR, LH

main87945-0K400iGUN125202308-202407

main87945-0K420-C0iGUN125202308-202407

main87945-0K420-C2iGUN125202403-202407

87948COVER, OUTER MIRROR HOLE, LH

main87948-0KM00iGUN125202308-202407

87961MIRROR OUTER, LH

main87961-0KB40iGUN125202308-202407

90163T0002

main90163-T0002

13 parts on this diagram · 1 diagram in section
