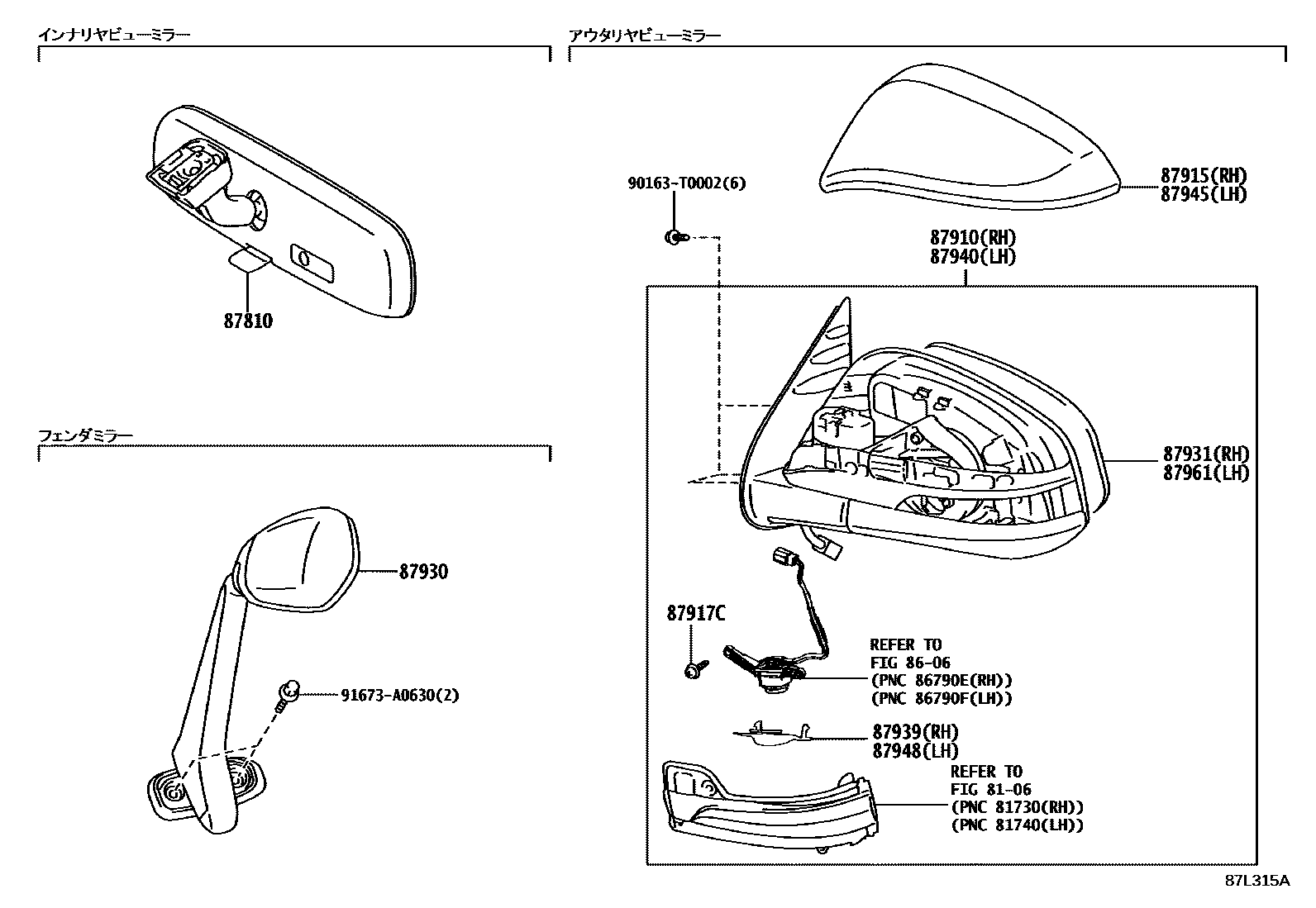

MIRROR

8106

8606

87810MIRROR ASSY, INNER REAR VIEW

main87810-06041iGUN125202208-202307

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0KP10iGUN125..X202208-202307

main87910-0KP40supersedes 87910-0KP01iGUN125..Z202208-202307

87915COVER, OUTER MIRROR, RH

main87915-0K390iGUN125..X202208-202307

main87915-0K400iGUN125..Z202208-202307

main87915-0K420-C0iGUN125..Z202208-202307

main87915-0K420-C2iGUN125..Z202208-202307

87917CSCREW, OUTER MIRROR

main87917-0KM00×4iGUN125..Z202208-202307

87930DEVICE ASSY, FRONT FENDER SIDE VIEW, LH

main87930-0K010-A0iGUN125202208-202307

SUPER WHITE 2,040

main87930-0K010-B0iGUN125202208-202307

SILVER ME.,1D6

main87930-0K010-C0iGUN125202208-202307

ATTITUDE BLACK MC.,218

main87930-0K010-G0iGUN125202208-202307

OXIDE BRONZE ME.,6X1

main87930-0K010-J1iGUN125202208-202307

DK. BLUE MC.,8X8

87931OUTER MIRROR, RH

main87931-0KC80iGUN125202208-202307

87939COVER, OUTER MIRROR HOLE, RH

main87939-0KM00iGUN125..Z202208-202307

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0KP10iGUN125..X202208-202307

main87940-0KP40supersedes 87940-0KP01iGUN125..Z202208-202307

87945COVER, OUTER MIRROR, LH

main87945-0K390iGUN125..X202208-202307

main87945-0K400iGUN125..Z202208-202307

main87945-0K420-C0iGUN125..Z202208-202307

main87945-0K420-C2iGUN125..Z202208-202307

87948COVER, OUTER MIRROR HOLE, LH

main87948-0KM00iGUN125..Z202208-202307

87961MIRROR OUTER, LH

main87961-0KB40iGUN125202208-202307

90163T0002

main90163-T0002

91673A0630

main91673-A0630

15 parts on this diagram · 1 diagram in section
