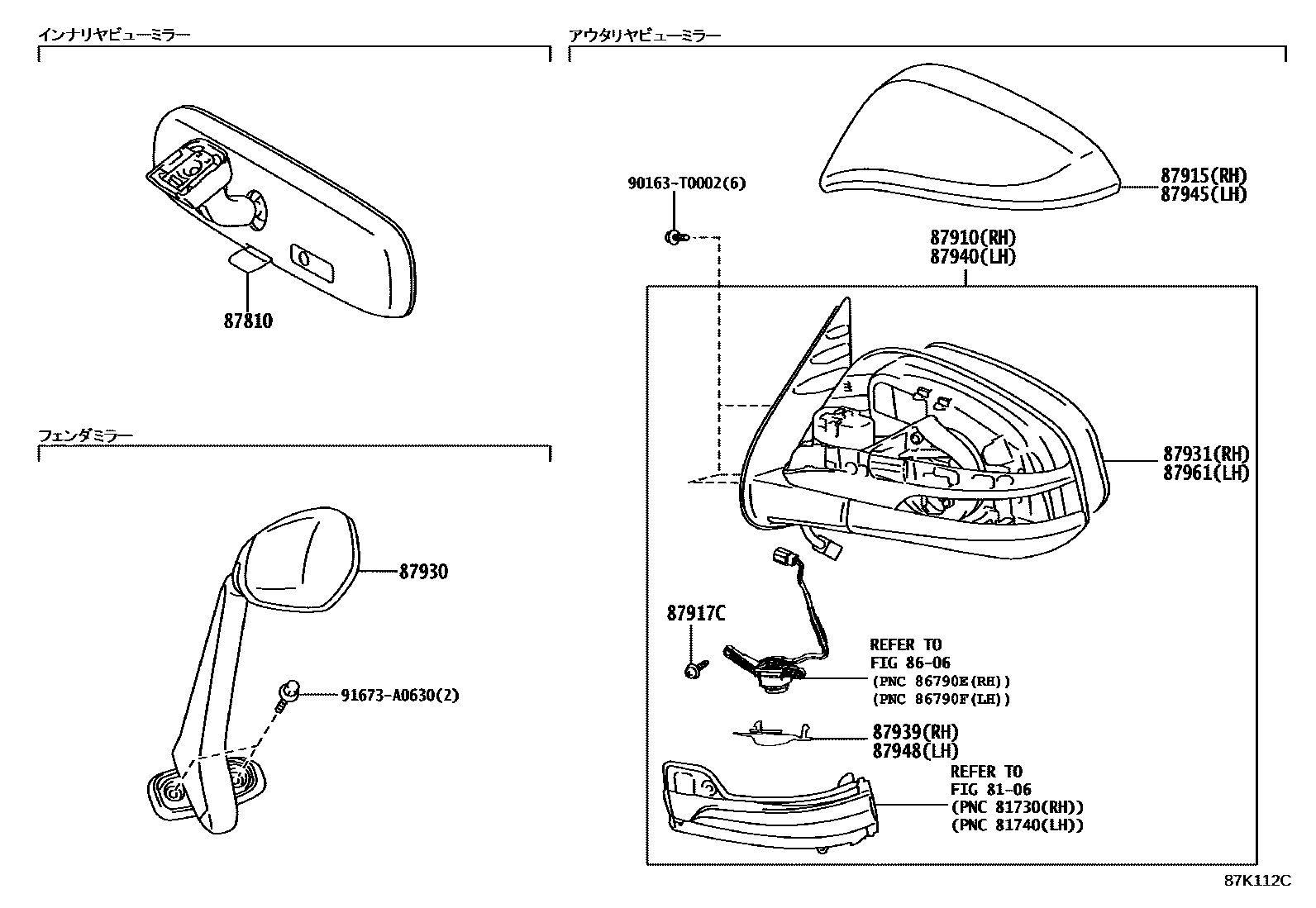

MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
�h���s�v
�h���s�v
87915COVER, OUTER MIRROR, RH
�h���s�v,�u���b�N
���b�L,���b�q
87917CSCREW, OUTER MIRROR
87930DEVICE ASSY, FRONT FENDER SIDE VIEW, LH
SUPER WHITE 2,040
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
OXIDE BRONZE ME.,6X1
DK. BLUE MC.,8X8
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
�h���s�v
�h���s�v
87945COVER, OUTER MIRROR, LH
�h���s�v,�u���b�N
���b�L,���b�q
87948COVER, OUTER MIRROR HOLE, LH
87961MIRROR OUTER, LH
90163T0002
main90163-T0002
91673A0630
15 parts on this diagram · 1 diagram in section
