MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0E020i2GDFTV..GUN125202108-202207

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0E010i2GDFTV..GUN125202108-202207

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0L021i2GDFTV..GUN125202108-202207

main12361-30171i2GDFTV..GUN125202108-202207

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0L210i2GDFTV..GUN125202108-202207

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90105-T0174i2GDFTV..GUN125202108-202207

main90910-03003i2GDFTV..GUN125202108-202207

12381STABILIZER, ENGINE MOUNTING

main12381-0L081i2GDFTV..GUN125202108-202207

main12381-30091i2GDFTV..GUN125202108-202207

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-0L010i2GDFTV..GUN125202108-202207

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-0E011i2GDFTV..GUN125202108-202207

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-0E010i2GDFTV..GUN125202108-202207

90105T0073

main90105-T0073

90119T0134

main90119-T0134

90119T0219

main90119-T0219

90119T0301

main90119-T0301

90119T0511

main90119-T0511

90178T0015

main90178-T0015

90178T0087

main90178-T0087

9415121241

main94151-21241

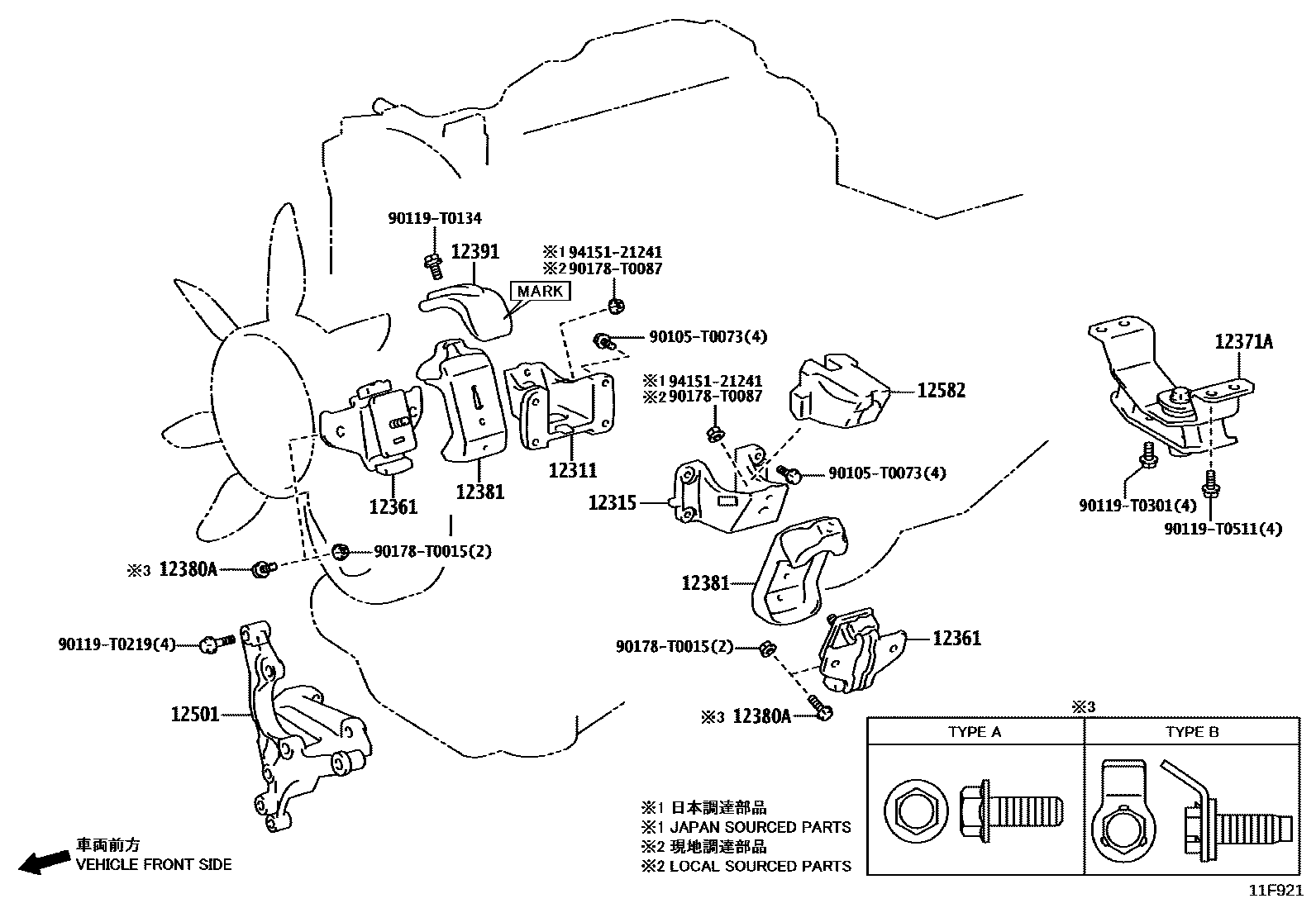

17 parts on this diagram · 1 diagram in section
