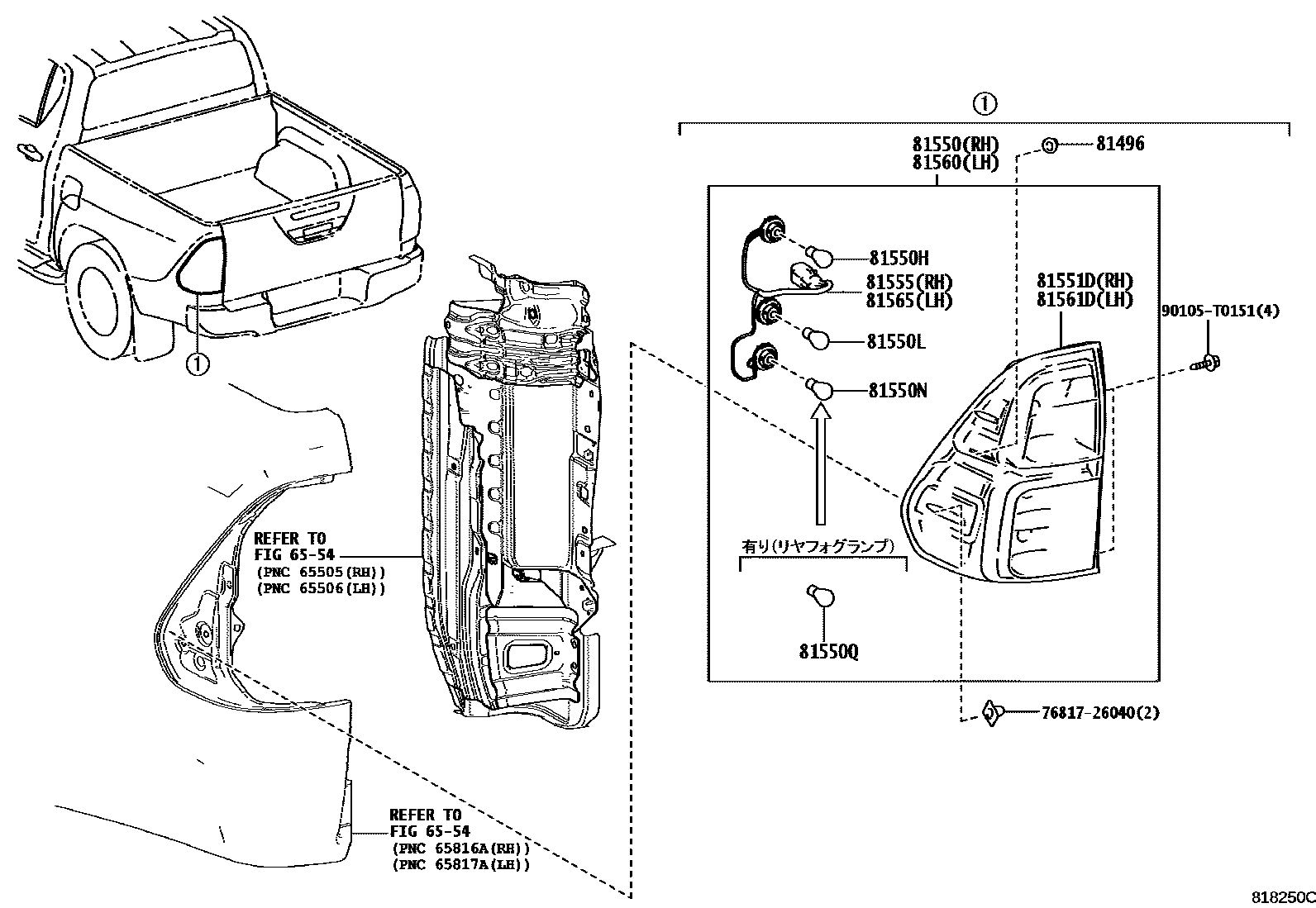

REAR COMBINATION LAMP

6554

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040iGUN125201708-202005

main81496-52020iGUN125¥70201708-202005

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K271iGUN125¥26,400201708-201807

main81550-0K570iGUN125¥29,100201808-202005

81550HBULB, TAIL & STOP LAMP

main90981-13094iGUN125¥400201708-202005

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15028iGUN125¥350201708-202005

81550NBULB, BACK UP LAMP

main90981-13093iGUN125¥160201708-202005

81550QBULB, REAR FOG LAMP, NO.1

main90981-13093iGUN125¥160201708-202005

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K271iGUN125¥24,400201708-201807

main81551-0K570iGUN125¥26,900201808-202005

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K270iGUN125¥1,540201708-202005

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K261iGUN125¥21,100201708-201807

main81560-0K570iGUN125¥21,100201808-202005

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K261iGUN125¥19,000201708-201807

main81561-0K570iGUN125¥19,000201808-202005

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K260iGUN125¥1,540201708-202005

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040¥110

90105T0151

main90105-T0151¥60

14 parts on this diagram · 1 diagram in section
