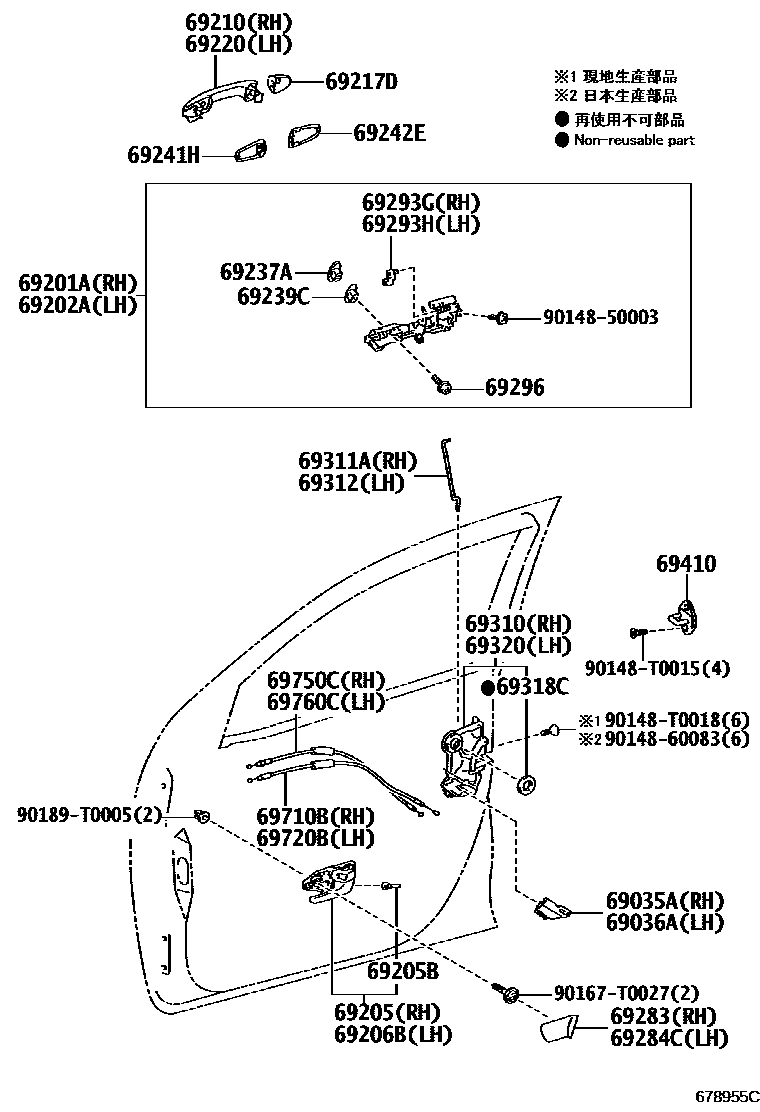

FRONT DOOR LOCK & HANDLE

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02040iGUN125201708-202005

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02040iGUN125201708-202005

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0K061iGUN125201708-202005

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0K061iGUN125201708-202005

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0K100-C1iGUN125..X201708-202005

BLACK,TRIM2#

main69205-0K110-C0iGUN125..Z201708-202005

BLACK,TRIM2#,4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iGUN125201708-202005

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0K090-C1iGUN125..X201708-202005

BLACK,TRIM2#

main69206-0K100-C0iGUN125..Z201708-202005

BLACK,TRIM2#,4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0K060iGUN125..Z201708-202005

main69210-0K210iGUN125..X201708-202005

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-0K370iGUN125..Z201708-202005

main69217-0K380iGUN125..Z201708-202005

main69217-0K430iGUN125..X201708-202005

main69217-0K440iGUN125..X201708-202005

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0K060iGUN125..Z201708-202005

main69210-0K210iGUN125..X201708-202005

69237ANUT, FRONT DOOR HANDLE

main69237-0E010iGUN125201708-201907

main69237-0K040iGUN125201907-202005

69239CBUSH, FRONT DOOR HANDLE

main69239-0K080iGUN125201708-202005

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0K041iGUN125201708-202005

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0K030iGUN125201708-202005

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-0K050-C0iGUN125..X201708-202005

BLACK,TRIM2#

main69283-0K050-C0iGUN125..X201708-202005

BLACK,TRIM2#,4#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-0K030-C0iGUN125..X201708-202005

BLACK,TRIM2#

main69284-0K030-C0iGUN125..X201708-202005

BLACK,TRIM2#,4#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iGUN125201708-202005

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iGUN125201708-202005

69296SCREW, DOOR INSIDE HANDLE

main69296-0M010iGUN125201708-202005

69310LOCK ASSY, FRONT DOOR, RH

main69030-02470iGUN125201708-202005

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0K120iGUN125201708-202005

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0K120iGUN125201708-202005

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iGUN125201708-202005

69320LOCK ASSY, FRONT DOOR, LH

main69040-02470iGUN125..Z201708-202005

main69040-02550iGUN125..X201708-202005

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0K070iGUN125201708-202005

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0K160iGUN125201708-202005

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0K160iGUN125201708-202005

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0K160iGUN125201708-202005

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0K160iGUN125201708-202005

9014850003

main90148-50003

9014860083

main90148-60083

90148T0015

main90148-T0015

90148T0018

main90148-T0018

90167T0027

main90167-T0027

90189T0005

main90189-T0005

35 parts on this diagram · 1 diagram in section
