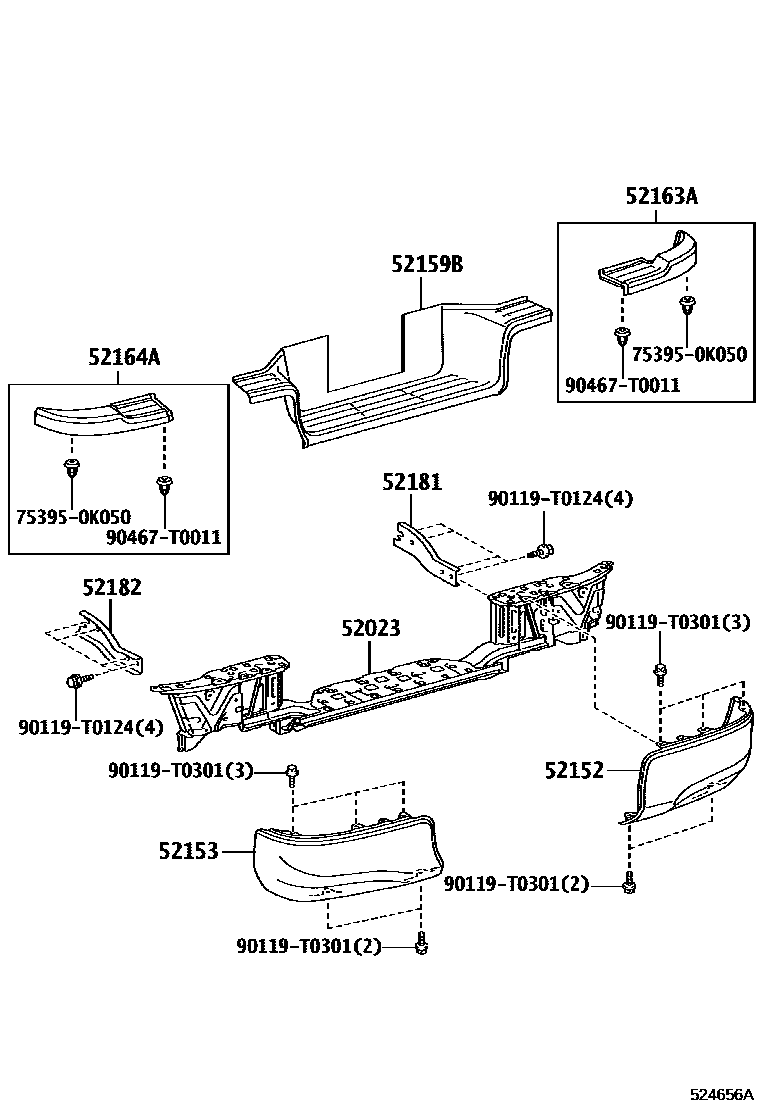

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0K100iGUN125201708-201905

main52023-0K101iGUN125201906-202005

52152BAR, REAR BUMPER, RH

main52151-0K060iGUN125..X201708-202005

main52151-0K170iGUN125..Z201708-202005

52153BAR, REAR BUMPER, LH

main52152-0K060iGUN125..X201708-202005

main52152-0K170iGUN125..Z201708-202005

52159BPLATE, REAR BUMPER

main52159-0K620iGUN125201708-202005

sub52159-0K621

52163APLATE, REAR BUMPER, RH

main52163-0K030iGUN125201708-202005

52164APLATE, REAR BUMPER, LH

main52164-0K030iGUN125201708-202005

52181ARM, REAR BUMPER, RH

main52181-0K060iGUN125201708-202005

52182ARM, REAR BUMPER, LH

main52182-0K060iGUN125201708-202005

753950K050CLIP, BACK DOOR MOULDING, NO.1

main75395-0K050

90119T0124

main90119-T0124

90119T0301

main90119-T0301

90467T0011

main90467-T0011

12 parts on this diagram · 1 diagram in section
