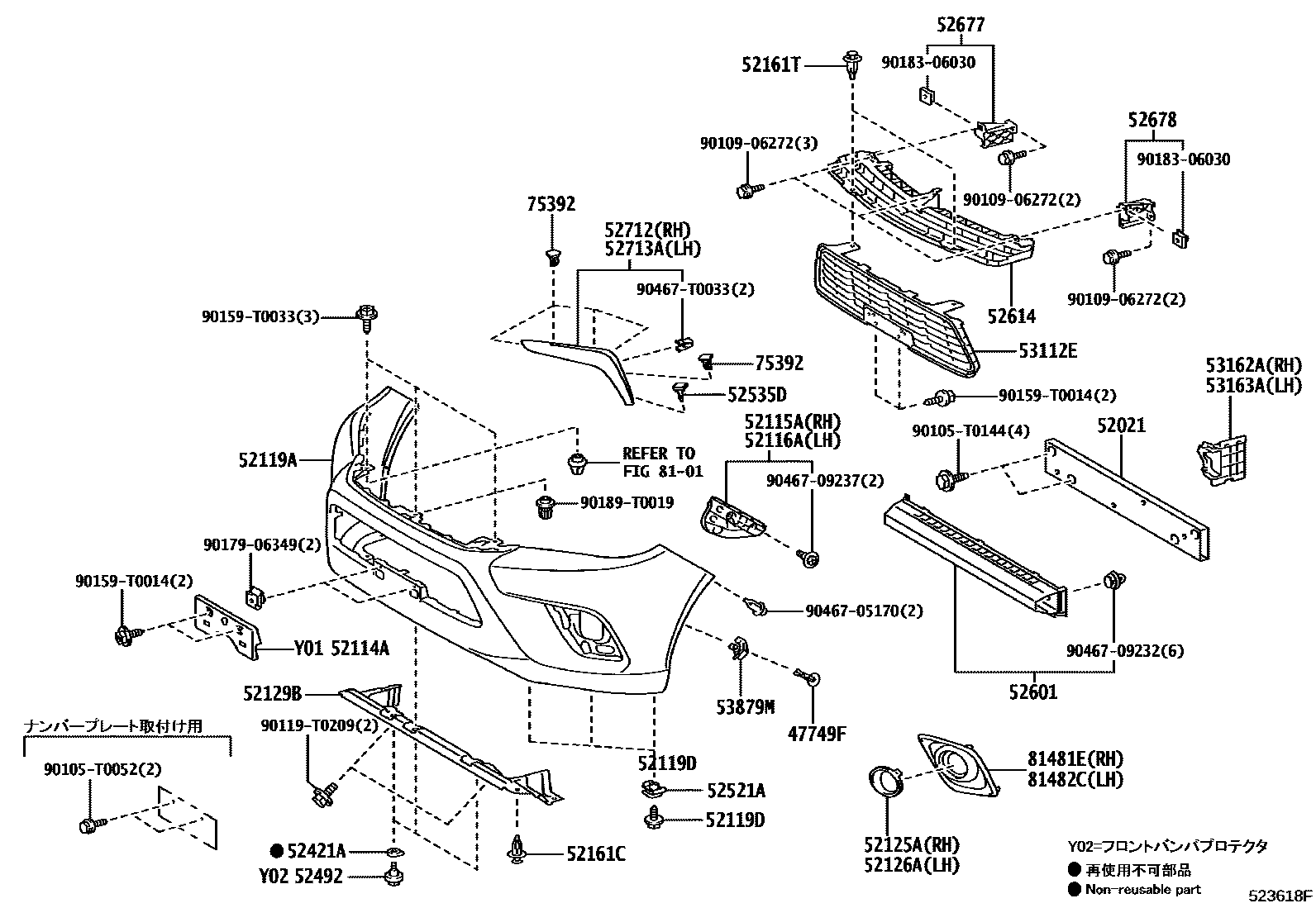

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
SUPER WHITE 2,040
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
NEBULA BLUE ME.,8X2
SUPER WHITE 2,040
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
NEBULA BLUE ME.,8X2
52119DSCREW, NO.1
52125ABRACKET, FOG LAMP MOUNTING, RH
52126ABRACKET, FOG LAMP MOUNTING, LH
52129BCOVER, FRONT BUMPER, LOWER
52161CPIECE, FRONT BUMPER
52161TPIECE, FRONT BUMPER
52421APAD, FRONT BUMPER
52492BOLT, BUMPER PAD, NO.2
52521ACLIP(FOR FRONT BUMPER RETAINER)
52535DRETAINER, FRONT BUMPER SIDE
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52712MOULDING, FRONT BUMPER SIDE, RH
52713AMOULDING, FRONT BUMPER SIDE, LH
53112EGRILLE, RADIATOR, LOWER NO.1
53162ADEFLECTOR, FRONT BUMPER STONE, RH
53163ADEFLECTOR, FRONT BUMPER STONE, LH
53879MRETAINER, FRONT FENDER LINER
75392RETAINER, OUTSIDE MOULDING
8101
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
90105T0052
main90105-T0052
90105T0144
main90105-T0144
9010906272
main90109-06272
90119T0209
main90119-T0209
90159T0014
main90159-T0014
90159T0033
main90159-T0033
9017906349
main90179-06349
9018306030
main90183-06030
90189T0019
main90189-T0019
9046705170
main90467-05170
9046709232
main90467-09232
9046709237
main90467-09237
90467T0033
main90467-T0033
43 parts on this diagram · 2 diagrams in section
