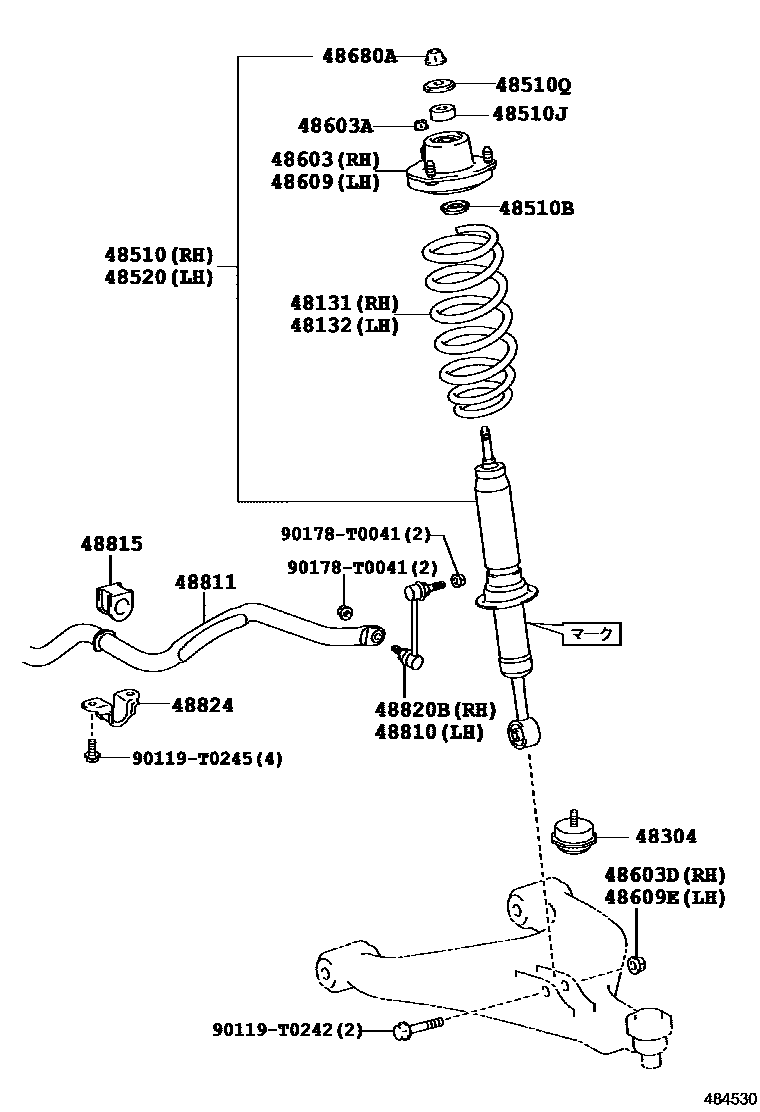

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0KC20iGUN125¥11,300201708-202005

48132SPRING, FRONT COIL, LH

main48131-0KC20iGUN125¥11,300201708-202005

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K041iGUN125¥1,540201708-202005

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z205iGUN125¥16,000201708-202005

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-T2003iGUN125201708-202005

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1013iGUN125¥300201708-202005

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-T2004iGUN125201708-202005

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-8Z205iGUN125¥16,000201708-202005

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K070iGUN125¥2,910201708-202005

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050iGUN125201708-202005

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iGUN125201708-202005

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K070iGUN125¥2,910201708-202005

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iGUN125201708-202005

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-T0015iGUN125201708-202005

48810LINK ASSY, FRONT STABILIZER, LH

main48810-0K010iGUN125¥4,390201708-202005

48811BAR, STABILIZER, FRONT

main48811-0K170iGUN125¥14,200201708-202005

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K090iGUN125¥850201708-202005

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K030iGUN125¥4,390201708-202005

48824BRACKET, STABILIZER, FRONT

main48824-KK010iGUN125¥1,170201708-202005

90119T0242

main90119-T0242¥310

90119T0245

main90119-T0245¥120

90178T0041

main90178-T0041

22 parts on this diagram · 1 diagram in section
