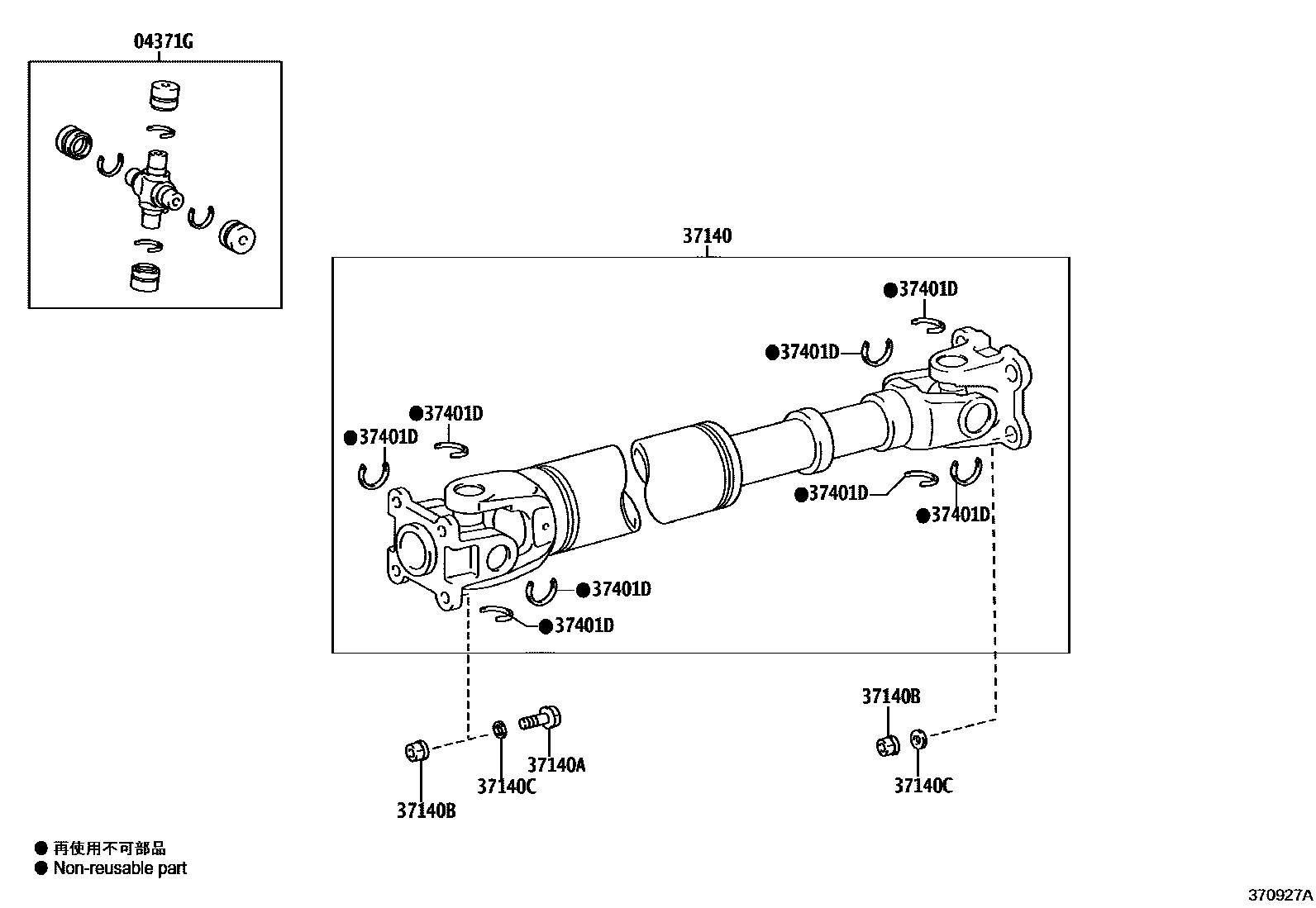

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1���� 0002 1��

04371GSPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT

main04371-0K110iGUN125201708-202005

37140SHAFT ASSY, PROPELLER, FRONT

main37140-0K010iGUN125201708-202005

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90105-T0084iGUN125201708-202005

37140BNUT (F0R FRONT PROPELLER SHAFT)

main90178-T0024iGUN125201708-202005

37140CWASHER (F0R FRONT PROPELLER SHAFT)

main90201-T0003iGUN125201708-202005

sub90201-11013

37401DRING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEARING)

main90520-T0007iGUN125201708-202005

main90520-T0008iGUN125201708-202005

main90520-T0009iGUN125201708-202005

main90520-T0010iGUN125201708-202005

main90520-T0011iGUN125201708-202005

main90520-T0012iGUN125201708-202005

main90520-T0013iGUN125201708-202005

main90520-T0014iGUN125201708-202005

main90520-T0015iGUN125201708-202005

main90520-T0016iGUN125201708-202005

main90520-T0017iGUN125201708-202005

main90520-T0018iGUN125201708-202005

main90520-T0019iGUN125201708-202005

main90520-T0020iGUN125201708-202005

main90520-T0021iGUN125201708-202005

main90520-T0022iGUN125201708-202005

main90520-T0023iGUN125201708-202005

main90520-T0024iGUN125201708-202005

main90520-T0025iGUN125201708-202005

main90520-T0026iGUN125201708-202005

6 parts on this diagram · 2 diagrams in section
