TRANSFER ASSEMBLY & GASKET KIT

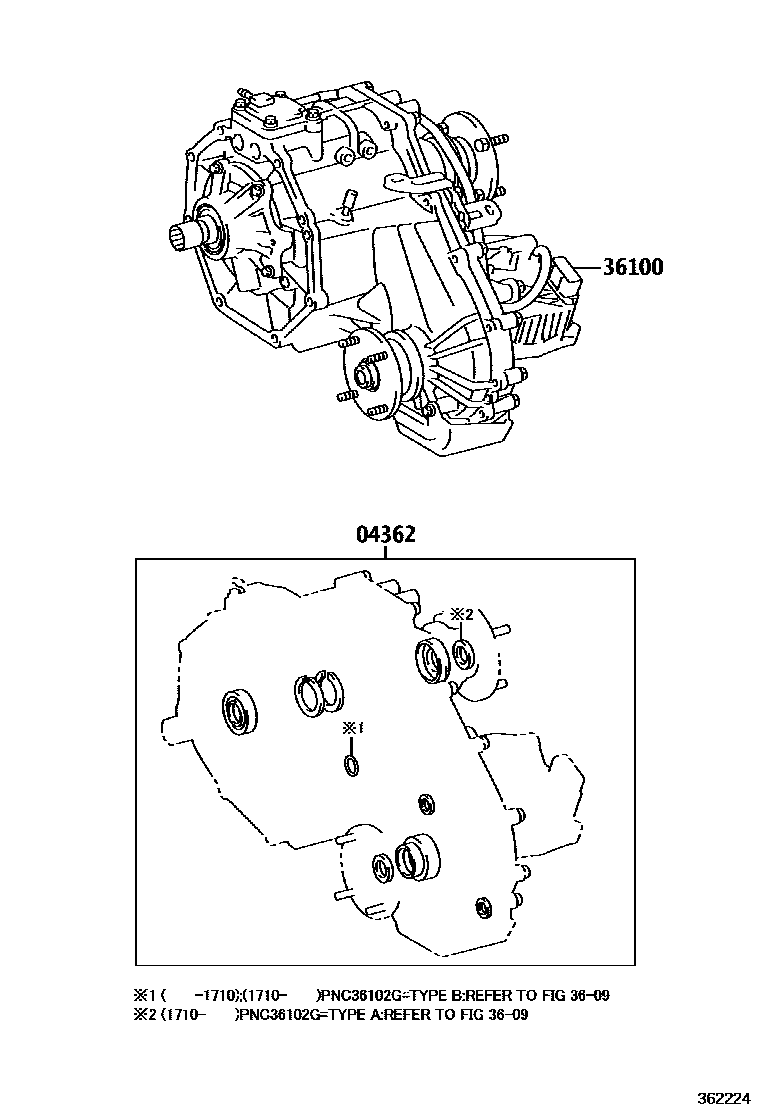

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-0K020i201708-202005

main04362-71130i201708-201710

main04362-71170i201710-202005

36100TRANSFER ASSY

main36100-0K460i201708-202005

main36100-71460i201708-202005

2 parts on this diagram · 1 diagram in section
