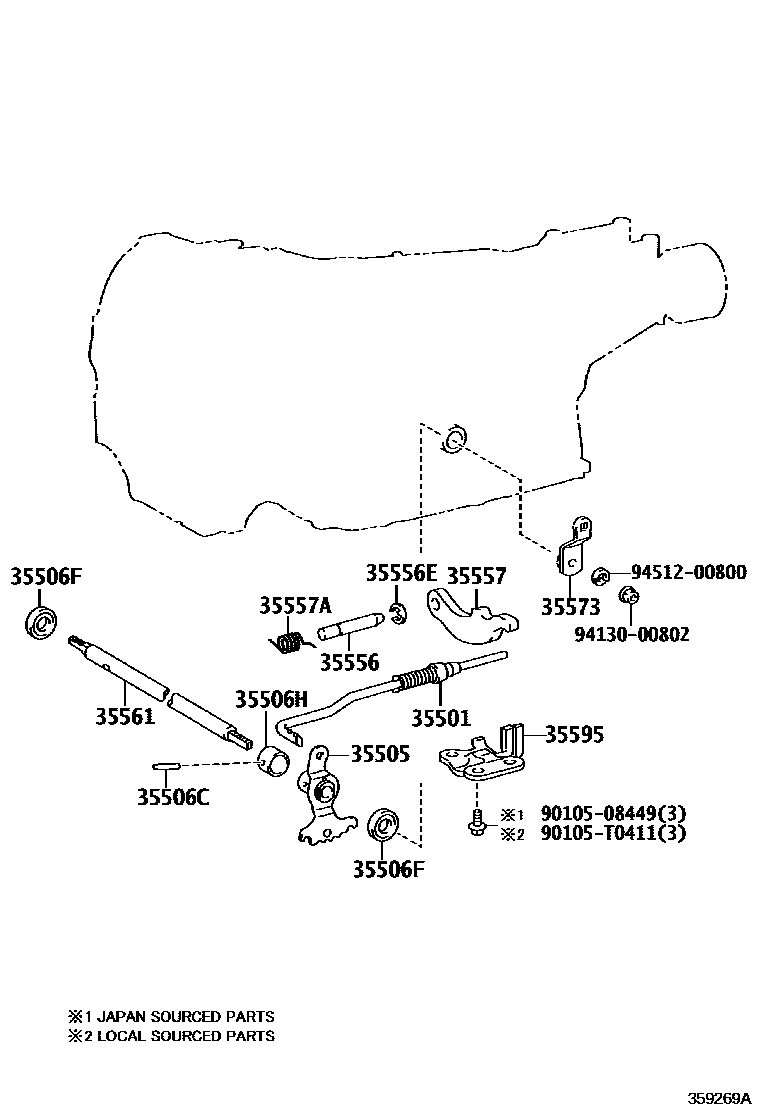

THROTTLE LINK & VALVE LEVER (ATM)

35501ROD SUB-ASSY, PARKING LOCK

main35501-71020iGUN125¥1,610201708-202005

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-71020iGUN125¥1,430201708-202005

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGUN125¥160201708-202005

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-T0093iGUN125¥190201708-202005

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iGUN125¥210201708-202005

35556SHAFT, PARKING LOCK PAWL

main35556-60020iGUN125¥380201708-202005

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGUN125¥110201708-202005

35557PAWL, PARKING LOCK

main35557-71010iGUN125¥2,810201708-202005

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iGUN125¥120201708-202005

35561SHAFT, MANUAL VALVE LEVER

main35561-60030iGUN125¥1,860201708-202005

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-0K010iGUN125201912-202005

main35573-71010iGUN125¥510201708-201912

main35573-71010iGUN125¥510201912-202005

35595BRACKET, PARKING LOCK PAWL

main35595-71010iGUN125¥800201708-202005

9010508449

main90105-08449¥80

90105T0411

main90105-T0411

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

16 parts on this diagram · 1 diagram in section
