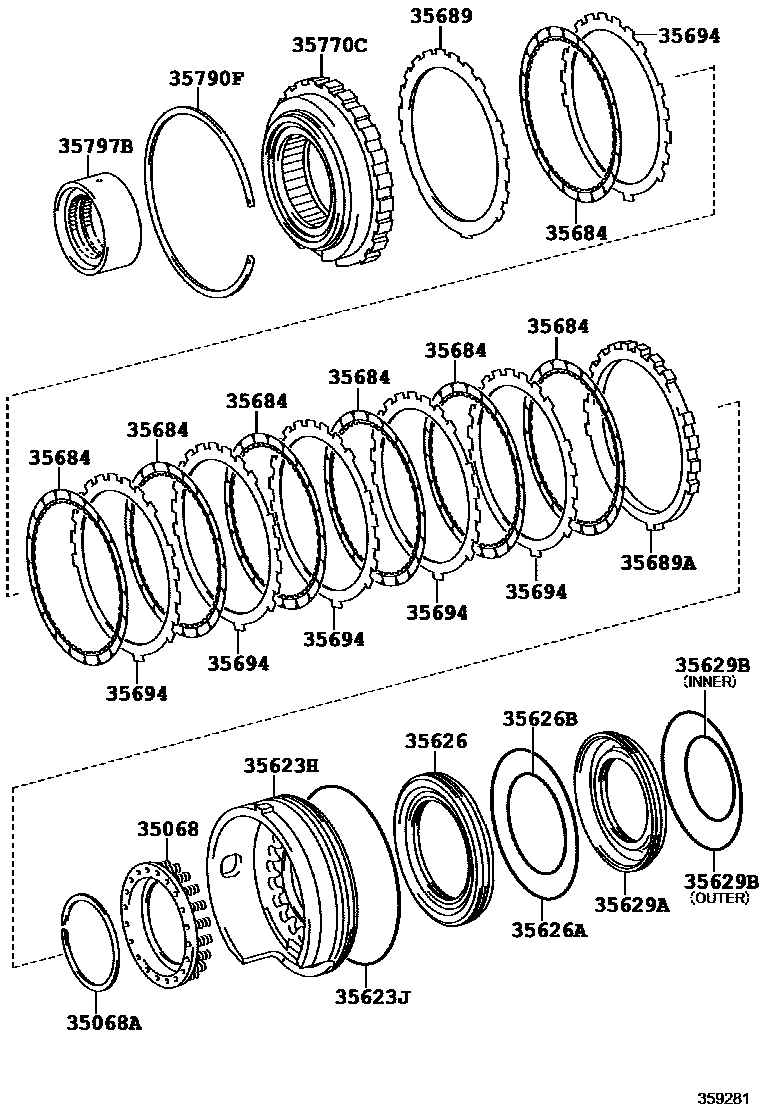

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-0K010iGUN125201912-202005

main35068-60010iGUN125201708-201911

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001iGUN125201708-202005

35623HPISTON, 1ST & REVERSE BRAKE

main35623-0K010iGUN125201708-202005

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-T0072iGUN125201708-202005

35626SLEEVE, BRAKE REACTION

main35626-50010iGUN125201708-202005

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-T0073iGUN125201708-202005

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-T0074iGUN125201708-202005

35629APISTON, BRAKE, NO.4

main35629-50020iGUN125201708-202005

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-T0075iGUN125201708-202005

main90301-T0076iGUN125201708-202005

35684DISC, BRAKE, NO.4

main35684-0K010×7iGUN125201708-202005

35689FLANGE, BRAKE, NO.4

main35689-60270iGUN125201708-202005

main35689-60280iGUN125201708-202005

main35689-60290iGUN125201708-202005

main35689-60300iGUN125201708-202005

main35689-60310iGUN125201708-202005

main35689-60320iGUN125201708-202005

main35689-60330iGUN125201708-202005

main35689-60340iGUN125201708-202005

main35689-60350iGUN125201708-202005

main35689-60360iGUN125201708-202005

main35689-60370iGUN125201708-202005

35689AFLANGE, BRAKE, NO.4

main35689-71010iGUN125201708-202005

35694PLATE, BRAKE, NO.4

main35694-0K010×6iGUN125201708-202005

35770CCLUTCH ASSY, 1WAY NO.3

main35770-0K010iGUN125201708-201911

main35770-0K020iGUN125201912-202005

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90521-99131iGUN125201708-202005

35797BRACE, 1 WAY CLUTCH, INNER

main35797-60020iGUN125201708-202005

16 parts on this diagram · 1 diagram in section
