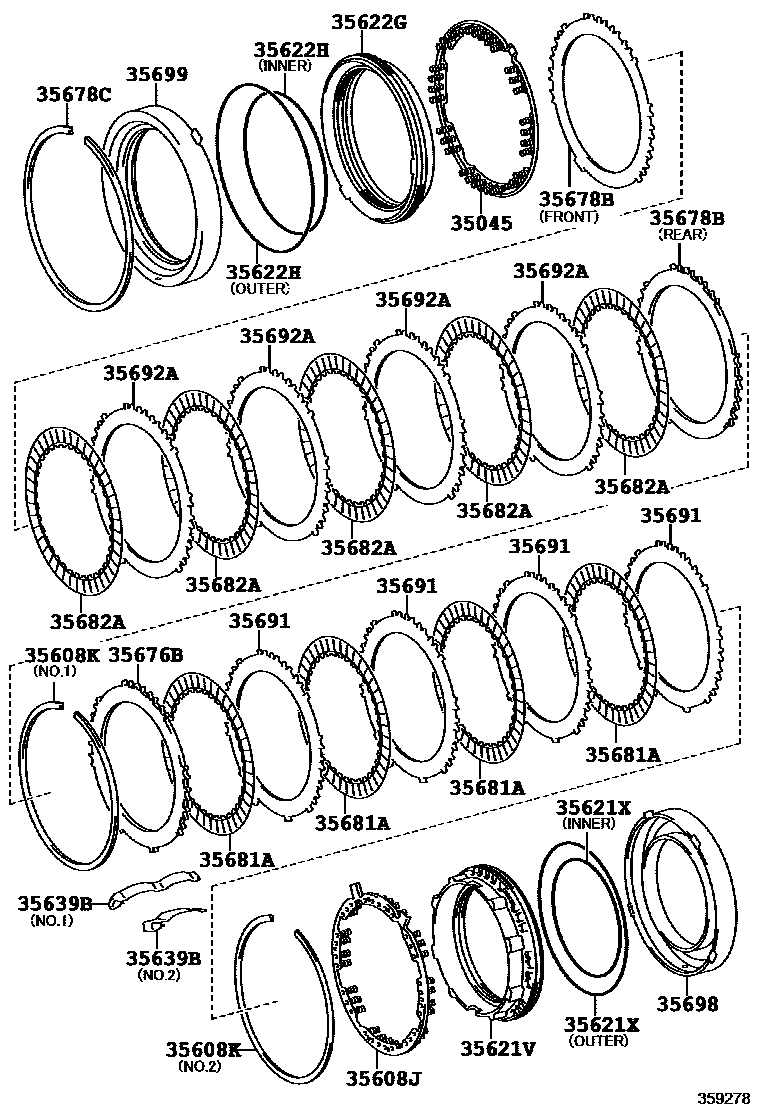

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35621VPISTON, BRAKE, NO.1
35621XRING, O (FOR BRAKE PISTON NO.1)
35622GPISTON, BRAKE, NO.2
35622HRING, O (FOR BRAKE PISTON NO.2)
35639BSPRING, BRAKE PLATE STOPPER
35676BFLANGE, BRAKE, NO.1
35678BFLANGE, BRAKE, NO.2
35678CRING, SNAP (FOR BRAKE NO.2)
35681ADISC, BRAKE, NO.1
35682ADISC, BRAKE, NO.2
35691PLATE, BRAKE, NO.1
35692APLATE, BRAKE, NO.2
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
17 parts on this diagram · 1 diagram in section
