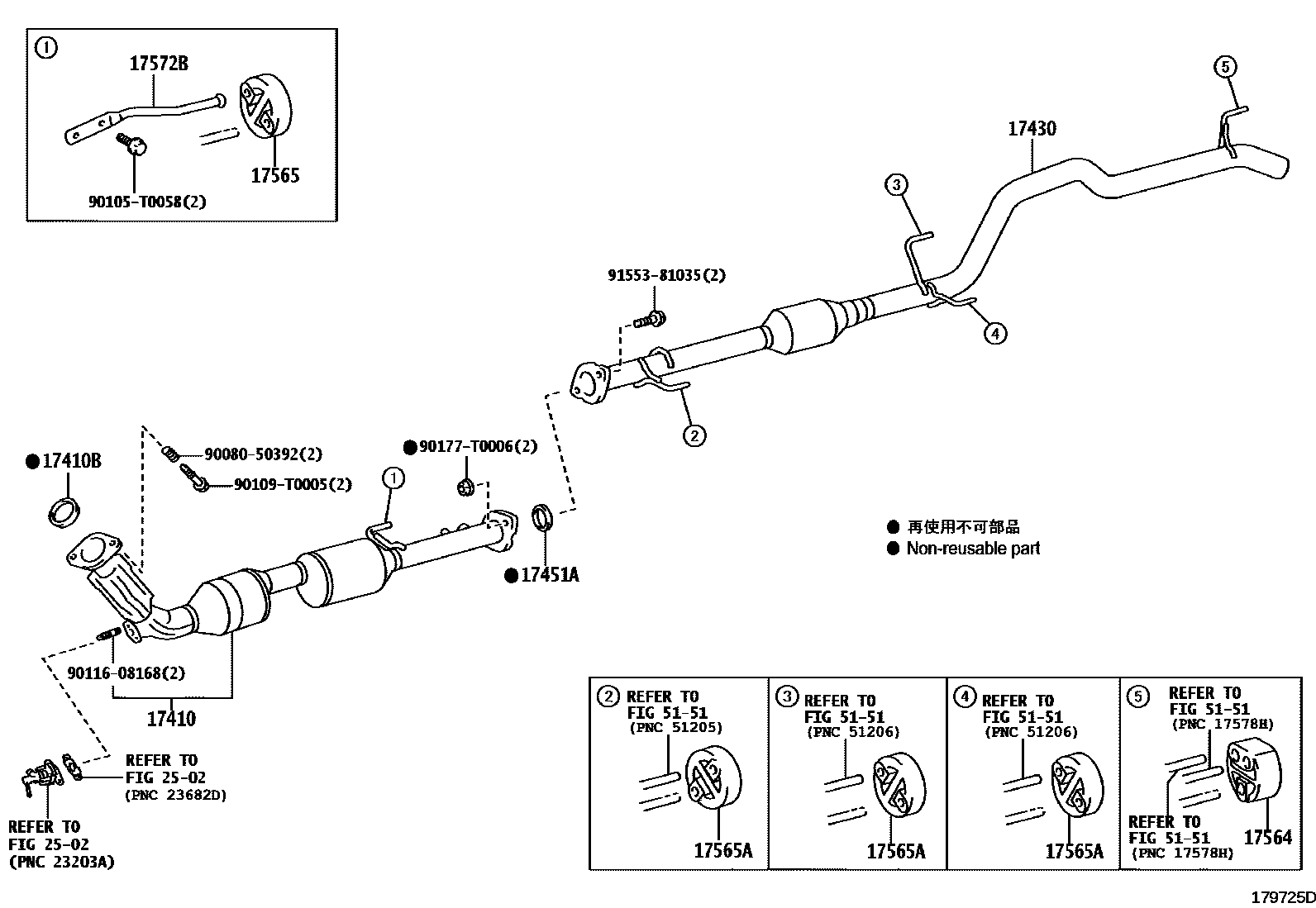

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17401-0L270i2GDFTV..GUN125201708-202005

17410BGASKET, EXHAUST PIPE

main17451-0L050i2GDFTV..GUN125201708-202005

17430PIPE ASSY, EXHAUST, TAIL

main17430-0L100i2GDFTV..GUN125201708-202005

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06076i2GDFTV..GUN125201708-202005

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0L100i2GDFTV..GUN125201708-202002

main17565-0L100i2GDFTV..GUN125202002-202005

main17565-0L120i2GDFTV..GUN125202002-202005

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0P240i2GDFTV..GUN125201708-202005

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0L080i2GDFTV..GUN125202002-202005

main17565-0P240i2GDFTV..GUN125201708-202002

main17565-0P240i2GDFTV..GUN125202002-202005

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-0L040i2GDFTV..GUN125201708-202005

2502

5151

9008050392

main90080-50392

90105T0058

main90105-T0058

90109T0005

main90109-T0005

9011608168

main90116-08168

90177T0006

main90177-T0006

9155381035

main91553-81035

16 parts on this diagram · 1 diagram in section
