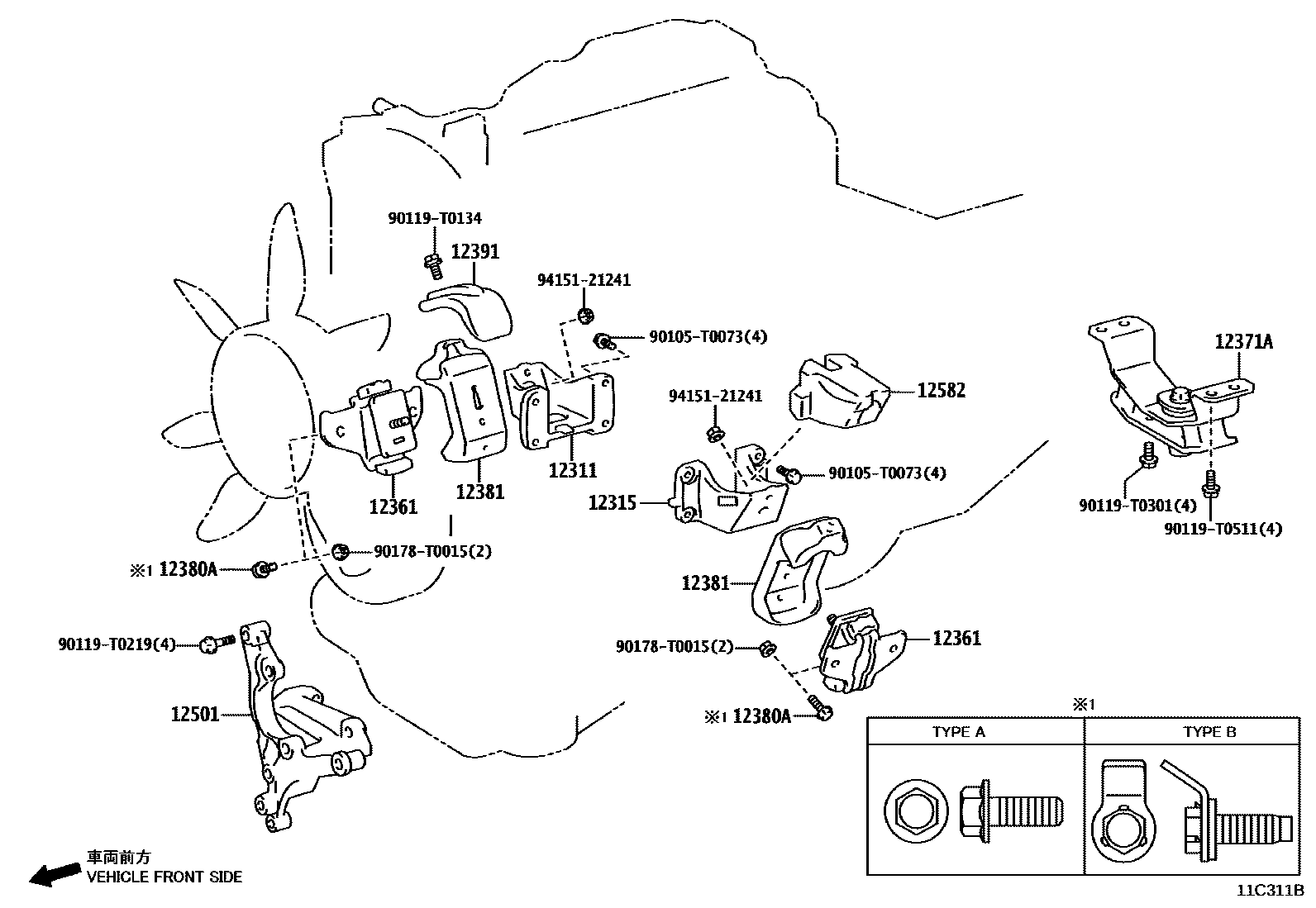

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0E020i2GDFTV..GUN125201708-202005

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0E010i2GDFTV..GUN125201708-202005

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-0L020×2i2GDFTV..GUN125201708-202005

sub12361-0L021

sub12381-0L081

main12361-30170×2i2GDFTV..GUN125201708-202005

sub12361-30171

sub12381-30091

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0L210i2GDFTV..GUN125201708-202005

12380ABOLT(FOR ENGINE MOUNTING INSURATOR)

main90105-T0174×4i2GDFTV..GUN125201708-202005

main90910-03003×4i2GDFTV..GUN125201708-202005

12381STABILIZER, ENGINE MOUNTING

main12381-0L080×2i2GDFTV..GUN125201708-202005

main12381-30090×2i2GDFTV..GUN125201708-202005

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-0L010i2GDFTV..GUN125201708-202005

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-0E010i2GDFTV..GUN125201708-201903

main12501-0E011i2GDFTV..GUN125201904-202005

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-0E010i2GDFTV..GUN125201708-202005

90105T0073

main90105-T0073

90119T0134

main90119-T0134

90119T0219

main90119-T0219

90119T0301

main90119-T0301

90119T0511

main90119-T0511

90178T0015

main90178-T0015

9415121241

main94151-21241

16 parts on this diagram · 1 diagram in section
