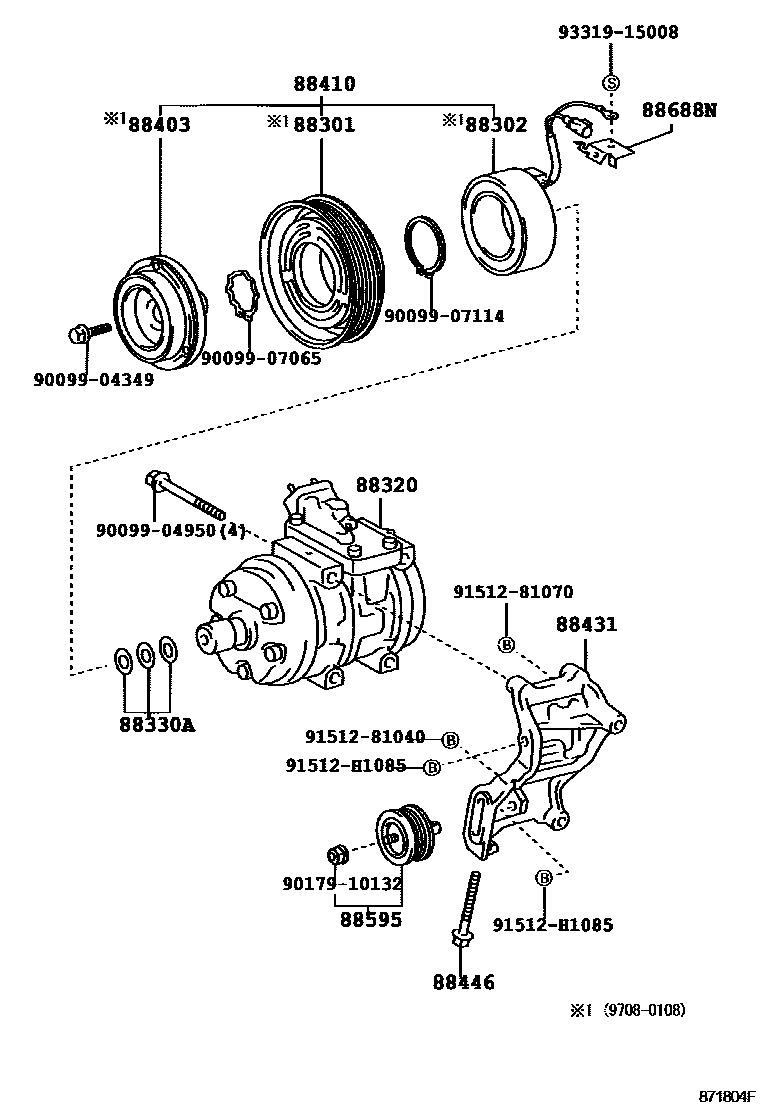

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iRZN147,152,16#,174199708-200108

main88412-30430iLN147,16#,17#199708-200108

sub88412-2A060

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iLN147,16#,17#,RZN147,152,16#,174199708-200108

88320COMPRESSOR ASSY, COOLER

main88320-35620iLN147,167,172199708-200407

sub88320-35H92

main88320-35640iRZN147,152,169,174199708-200308

sub88320-35H92

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iLN147,16#,17#,RZN147,152,16#,174199708-200407

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iLN147,16#,17#,RZN147,152,16#,174199708-200108

88410CLUTCH ASSY, MAGNET

main88410-22480iLN165,170199708-200407

main88410-34040iRZN167199708-200308

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-35200iRZN147,152,16#,174199708-200308

main88431-60180iLN147,16#,17#199708-200407

88446BOLT, IDLE PULLEY

main88446-35010iRZN147,152,169,174199708-200308

main88446-60020iLN147,16#,17#199708-200407

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-35030iLN147,167,172..T1,TW1199708-200407

main88440-35080iRZN147,152,169,174199708-200308

88688NBRACKET, COOLER

main88688-25200iRZN147,152,169,174199708-200308

main88688-2D770iLN147,167,172199708-200407

9009904349

main90099-04349

9009904950

main90099-04950

9009907065

main90099-07065

9009907114

main90099-07114

9017910132

main90179-10132

9151281040

main91512-81040

9151281070

main91512-81070

91512H1085

main91512-H1085

9331915008

main93319-15008

19 parts on this diagram · 2 diagrams in section
