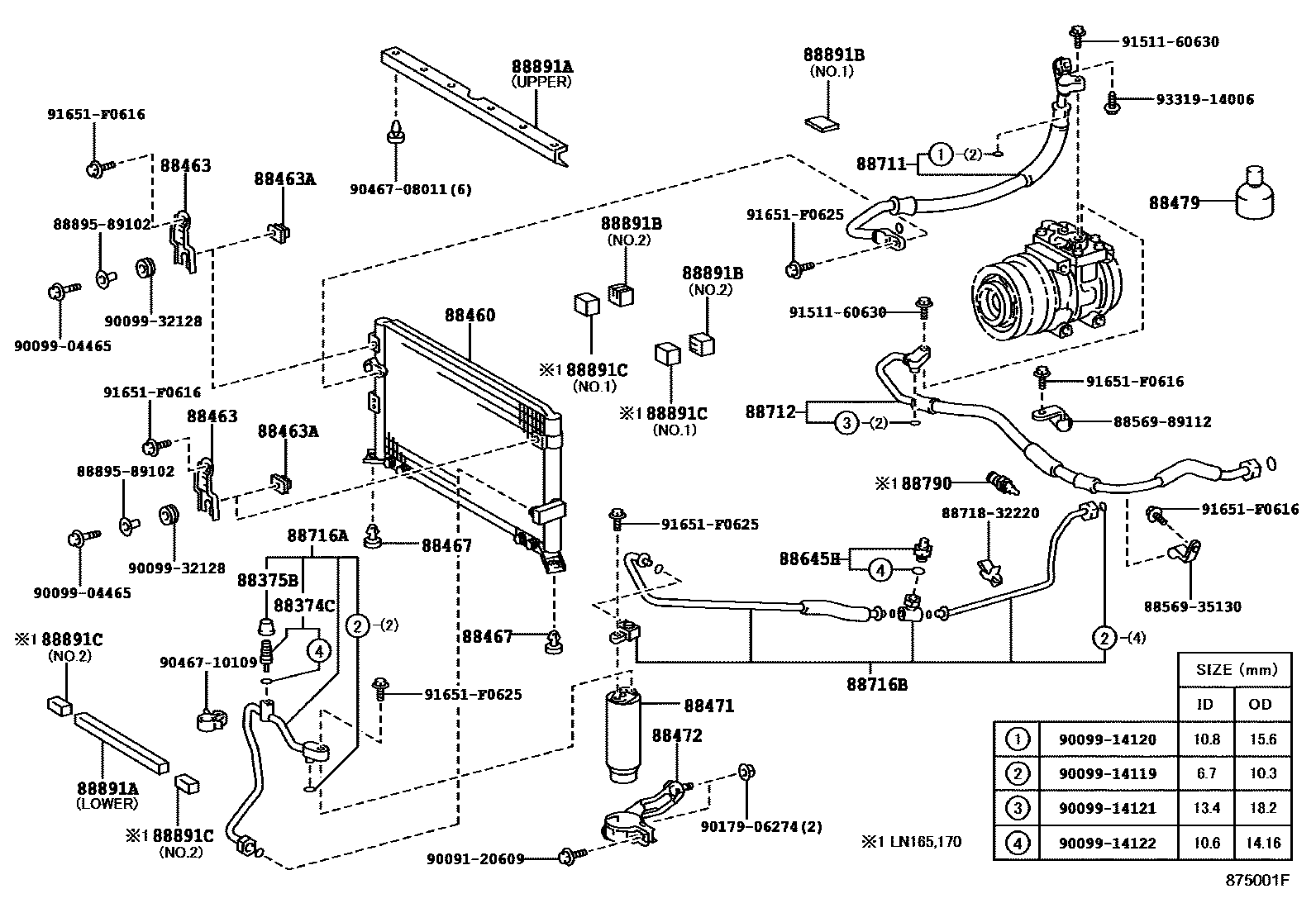

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1���-�- ������ 0009 1 0010 1

88374CVALVE, SERVICE, NO.2

main88374-30010iLN147,16#,17#,RZN147,152,16#,174199708-200108

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iLN147,16#,17#,RZN147,152,16#,174199708-200108

88460CONDENSER ASSY, COOLER

main88460-35190iLN147,167,RZN147200108-200407

main88460-35210iLN147,167,172,RZN147,152,169,174199708-200108

main88460-35210iLN147..T3200108-200407

main88460-35270iLN172,RZN152,169,174200108-200407

88463BRACKET, COOLER CONDENSER, NO.1

main88463-35090iLN147,16#,17#,RZN147,152,16#,174199708-200108

main88463-35090iLN147,167,RZN147200108-200407

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-35100iLN147,167,172,RZN147,152199908-200407

main88463-35120iLN147,167,172,RZN147,152,169,174199708-200407

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12100iLN147,16#,17#,RZN147,152,16#,174199708-200407

main88467-35030iLN172,RZN152,169,174200108-200407

88471TANK, RECEIVER AIR CONDITIONER

main88471-34010iLN165,170,RZN167199708-200407

88472BRACKET, RECEIVER TANK, NO.1

main88472-35030iLN147,16#,17#,RZN147,152,16#,174199708-200108

main88472-35030iLN147,167,RZN147200108-200407

main88472-35050iLN172,RZN152,169,174200108-200407

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02008iLN147..T3200108-200407

main90986-02008iLN165,170,RZN167199708-200108

88645HSWITCH, PRESSURE NO.1

main88645-34010iLN147,16#,17#,RZN147,152,16#,174199708-200108

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-35510iRZN147199708-200308

main88711-35520iLN147,16#,17#199708-200108

sub88720-35400

main88711-35590iRZN152,169,174200108-200308

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-35490iRZN147,152,16#,174199708-200108

sub88720-35370

main88712-35500iLN147,16#,17#199708-200407

sub88720-35380

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-35360iLN147,16#,17#,RZN147,152,16#,174199708-200407

main88716-35590iLN172,RZN152,169,174200108-200407

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88726-35030iLN147,16#,17#,RZN147,167199708-199908

main88726-35120iLN147,167,172,RZN147,152,169,174199908-200108

88790VALVE ASSY, MAGNET

main88790-60060iLN165,170199708-199908

88891APACKING A (FOR COOLER)

main53381-35030iLN147,16#,17#,RZN147,152,16#,174199708-200407

main88578-35130iRZN169,174200108-200308

main88578-35130iRZN147,152,16#,174199708-200108

main88578-89119iLN147,167,172,RZN147,152200108-200407

main88578-89119iLN147,16#,17#,RZN147,152,16#,174199708-200108

88891BPACKING B (FOR COOLER)

main88578-35110iLN147,16#,17#199708-199908

main88578-35120iLN147,16#,17#199708-199908

main88578-35120iLN147,167,172,RZN147,152,169,174199908-200108

main88578-35120iLN147,167,172,RZN147,152,169,174200108-200407

88891CPACKING C (FOR COOLER)

main88578-89103iLN165,170,RZN147,167199708-199908

main88578-89111iLN165,170,RZN147,167199708-199908

main88578-89111iRZN147,152,169,174199908-200308

8856935130CLAMP (FOR COOLER RELAY)

main88569-35130

8856989112CLAMP (FOR COOLER RELAY)

main88569-89112

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

8889589102HOLDER, FUSE

main88895-89102

9009120609

main90091-20609

9009904465

main90099-04465

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9009932128

main90099-32128

9017906274

main90179-06274

9046708011

main90467-08011

9046710109

main90467-10109

9151160630

main91511-60630

91651F0616

main91651-F0616

91651F0625

main91651-F0625

9331914006

main93319-14006

36 parts on this diagram · 10 diagrams in section
