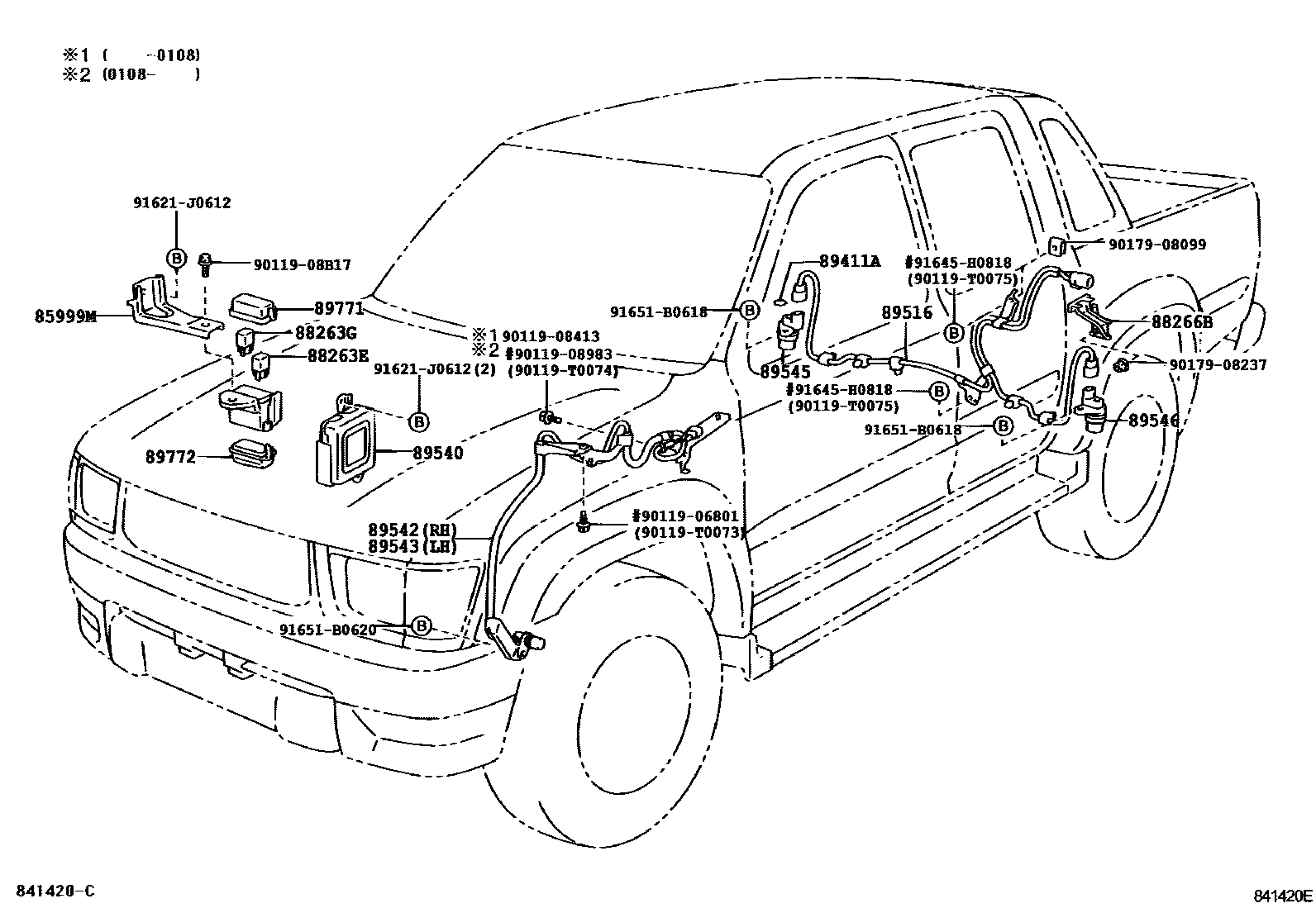

ABS & VSC

0001 1 0002 1

85999MBRACKET, RELAY

main85999-35100iRZN147,152,169,174199708-200407

88263ERELAY, SKID CONTROL NO.2

main88263-24030iLN147,16#,17#,RZN147,152,16#,174199708-200407

88263GRELAY, SKID CONTROL

main88263-14110iLN147,16#,17#,RZN147,152,16#,174199708-200407

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-35600iLN147,16#,RZN147199708-200407

89411ARING, O (FOR SPEED SENSOR)

main96723-19021iLN147,16#,RZN147199708-200407

89516WIRE, SKID CONTROL SENSOR

main89516-35050iRZN147,152199708-200407

main89516-35060iLN167,172199708-200407

89540COMPUTER ASSY, SKID CONTROL

main89540-35140iRZN147,152199708-200407

main89540-35150iLN167,172199708-200407

main89540-35160iLN167,172,RZN167199708-200407

89542SENSOR, SPEED, FRONT RH

main89542-35080iLN147,RZN147,152199708-200407

main89542-35090iLN16#,17#,RZN16#,174199708-200407

89543SENSOR, SPEED, FRONT LH

main89543-35080iLN147,RZN147,152199708-200407

main89543-35090iRZN169,174199708-200407

89545SENSOR, SPEED, REAR RH

main89545-35020iLN147,16#,17#,RZN147,152,16#,174199708-200407

89546SENSOR, SPEED, REAR LH

main89546-35020iLN147,16#,RZN147199708-200407

89771COVER, ABS RELAY BLOCK, UPPER

main89771-12010iLN147,16#,17#,RZN147,152,16#,174199708-200407

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12010iLN147,16#,17#,RZN147,152,16#,174199708-200407

9011906801

main90119-06801

9011908413

main90119-08413

9011908983

main90119-08983

9011908B17

main90119-08B17

90119T0073

main90119-T0073

90119T0074

main90119-T0074

90119T0075

main90119-T0075

9017908099

main90179-08099

9017908237

main90179-08237

91621J0612

main91621-J0612

91645H0818

main91645-H0818

91651B0618

main91651-B0618

91651B0620

main91651-B0620

26 parts on this diagram · 2 diagrams in section
