83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLN147,16#,17#,RZN147,152,167199708-200407

main83420-20040iRZN169,174199908-200308

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iRZN147,152,16#,174199803-200308

main83530-30060iLN147,16#,17#199708-199803

sub83530-60030

main83530-60020iRZN147,167199708-199803

main83530-60030iLN147,16#,17#199803-200407

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLN147,167,172,RZN147,167..MTM199708-200407

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35090iLN16#,17#,RZN16#,174199708-200407

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35060iLN16#,17#,RZN16#,174199708-200407

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35080iLN16#,17#,RZN16#,174199708-200108

84222ESWITCH, DIFFERENTIAL LOCK INDICATOR

main84222-12010iLN167,172,RZN167199708-200407

89421DSENSOR, TURBO PRESSURE

main89420-35090iLN147,167,172199708-200407

89429SENSOR, OIL TEMPERATURE

main89422-20010iLN147,167,172199708-200407

89491SENSOR, ENGINE OIL LEVEL

main89491-26111iLN147199708-200407

subS8346-01580

main89491-35011iLN167,172199708-200407

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iLN147,167,172199708-200407

8271135610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35610

9043012221

main90430-12221

9043018008

main90430-18008

9046106423

main90461-06423

91611B0614

main91611-B0614

9165160614

main91651-60614

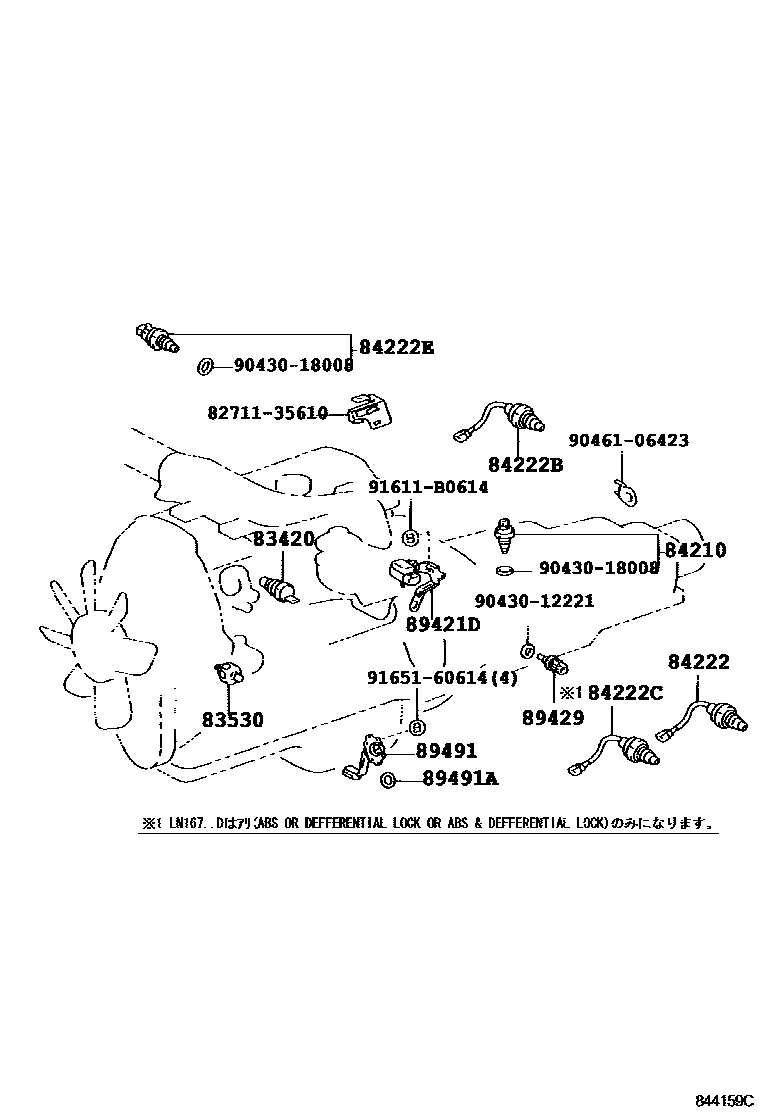

17 parts on this diagram · 9 diagrams in section
