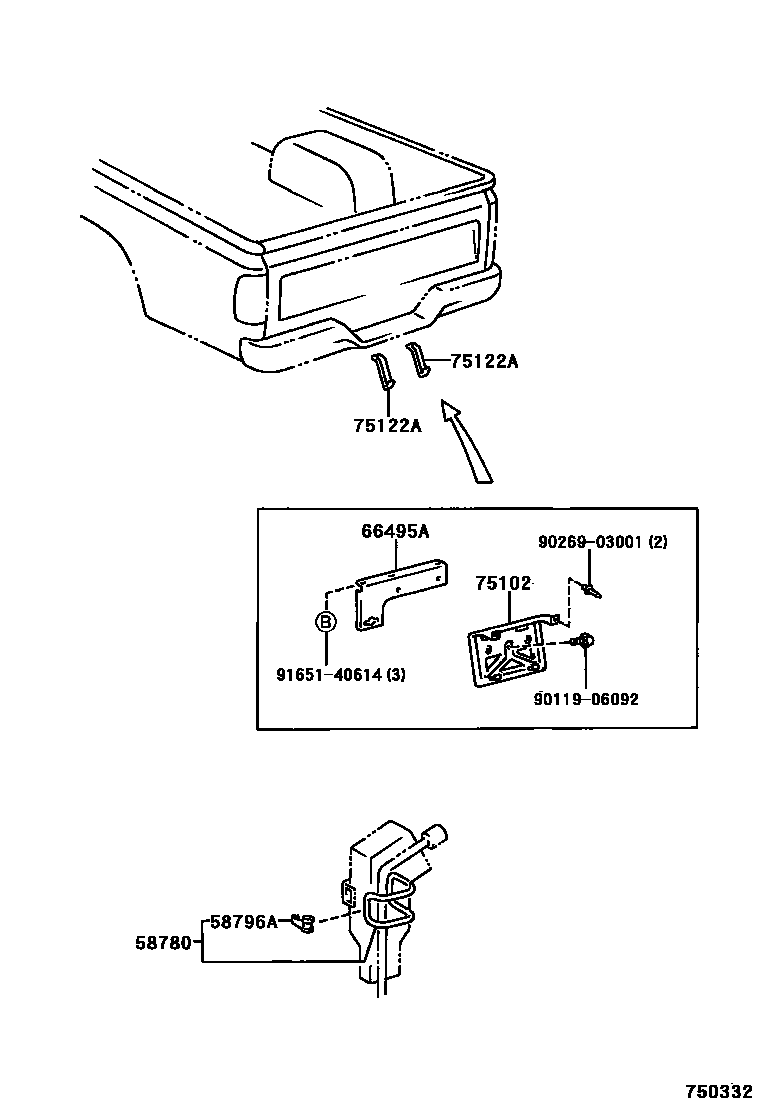

TOOL BOX & LICENSE PLATE BRACKET

58780BAND ASSY, TOOL BOX

main58780-89102iLN147,16#,17#,RZN147,152,16#,174199708-200407

main58780-89103iRZN152,174199908-200108

VW BRAND

main58780-89103iLN172200002-200108

58796AHOOK, JACK CLAMP

main58796-20012iRZN147,152,169,174199708-200407

66495ABRACKET, LICENSE HANGER

main66495-35010iLN147,RZN147..T3199708-200407

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-89117iLN147,RZN147..T3199708-200407

75122ABRACKET, REAR LICENSE PLATE, NO.2

main75122-89106iLN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU199708-200407

9011906092

main90119-06092

9026903001

main90269-03001

9165140614

main91651-40614

8 parts on this diagram · 1 diagram in section
