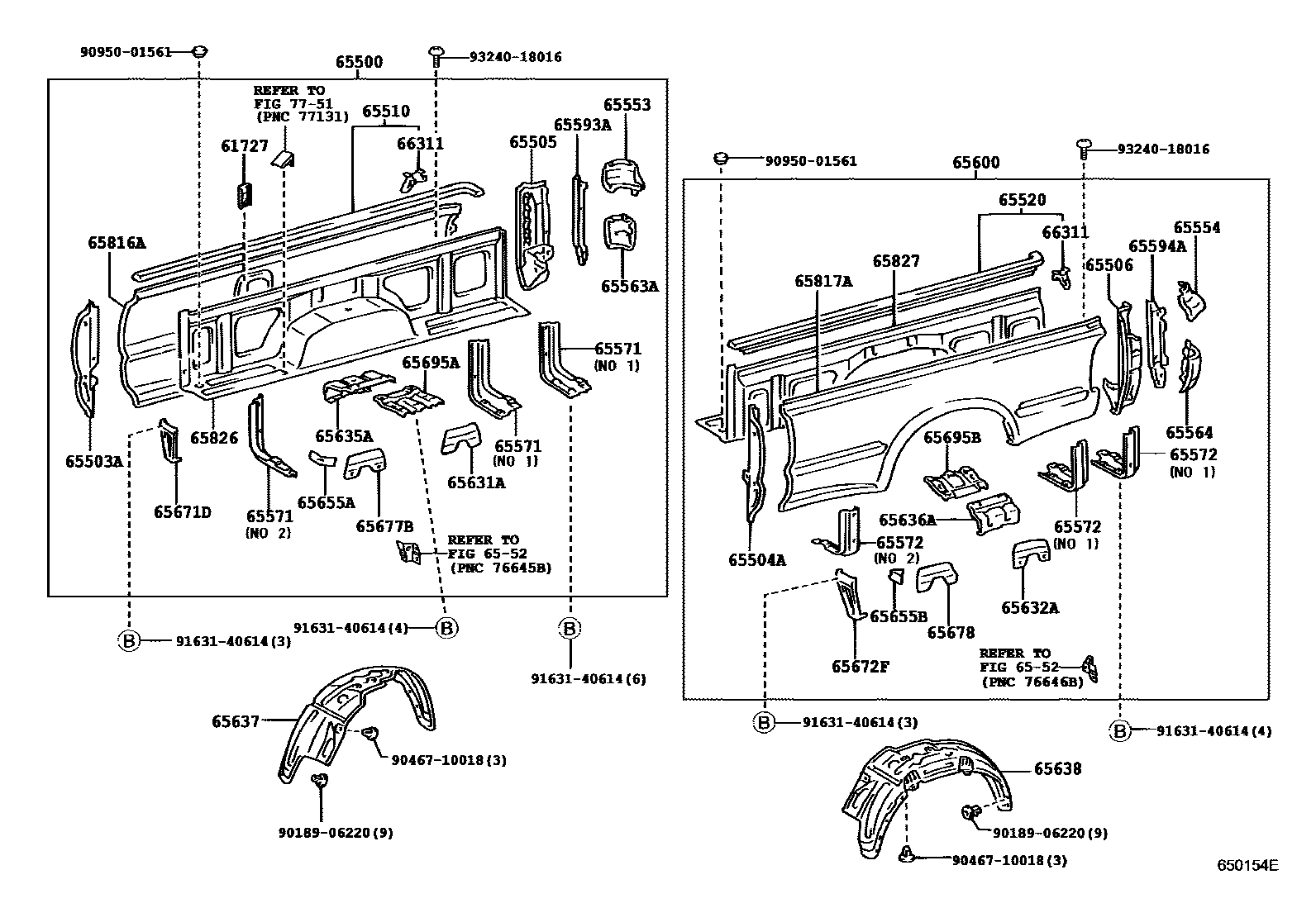

REAR BODY SIDE PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

61727PLATE, FUEL INLET BOX SHIELD

main61727-35010iLN147,167,17#,RZN147,152,174..T1..CBU199708-200407

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-35530iRZN147..Q199708-200108

main65500-35570iLN16#,RZN167..NOB..Q199708-200108

main65500-35580iLN165,RZN169..WIB199708-200308

main65500-35640iRZN152199908-200108

sub65500-35880

main65500-35690iLN17#,RZN174199711-200407

main65500-35710iLN167..TW1..D199708-200407

main65500-35720iLN147..TW1199708-200407

main65500-35800iRZN147..ATM199708-200308

main65500-35810iLN167..T1199708-200407

main65500-35830iLN147,RZN147..T1..MTM..CBU199708-200407

main65500-35880iRZN152200108-200308

main65500-3D110iLN172,RZN174199711-200407

main65500-3D130iLN147,RZN147..T3199708-200407

65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH

main65503-35030iLN16#,RZN147,16#..Q199708-200308

main65503-35050iLN17#,RZN152,174199711-200407

main65551-35040iLN147,167..TW1..D199708-200407

main65551-35050iLN147,167..T1..CBU199708-200407

65504APOST SUB-ASSY, SIDE PANEL FRONT END, LH

main65504-35030iLN165,RZN167199708-200308

main65504-35050iLN172,RZN152,174199711-200407

main65552-35040iLN147,167..TW1..D199708-200407

main65552-35050iRZN147..CBU199708-200407

65505POST SUB-ASSY, SIDE PANEL REAR END, RH

main65505-35010iLN167..D;RZN147..ATM..D199708-200407

main65505-35030iLN172199708-200407

main65505-35040iRZN147..MTM..CBU199708-200407

65506POST SUB-ASSY, SIDE PANEL REAR END, LH

main65506-35010iRZN147..ATM199708-200407

main65506-35030iLN172199708-200407

main65506-35040iLN147..(T1,TW1)..CBU199708-200407

65510RAIL ASSY, SIDE PANEL TOP, RH

main65510-35020iLN147,167..TW1..D199708-200407

main65510-89145iLN147,167,RZN147..T1..CBU199708-200407

6552

65520RAIL ASSY, SIDE PANEL TOP, LH

main65520-35020iLN147,167..TW1..D199708-200407

main65520-89145iRZN147..CBU199708-200407

65553PLATE, SIDE PANEL REAR END POST, UPPER RH

main65553-35010iLN167199708-200407

main65553-35020iRZN147..MTM..CBU199708-200407

65554PLATE, SIDE PANEL REAR END POST, UPPER LH

main65554-35010iLN167..D;RZN147..ATM..D199708-200407

main65554-35020iRZN147..MTM..CBU199708-200407

65563APLATE, SIDE PANEL REAR END POST, LOWER RH

main65563-35010iLN167199708-200407

main65563-35020iRZN147..CBU199708-200407

65564PLATE, SIDE PANEL REAR END POST, LOWER LH

main65564-35010iLN167199708-200407

main65564-35020iRZN147..CBU199708-200407

65571FRAME, SIDE PANEL, FRONT RH

main65571-35010iLN147,RZN147..T1..MTM..CBU199708-200407

main65572-35010iLN147,RZN147..T1..MTM..CBU199708-200407

65572FRAME, SIDE PANEL, FRONT LH

main65571-35010iRZN147,152,169,174..CBU199708-200407

main65572-35010iLN170199708-200407

65593APLATE, SIDE PANEL REAR END POST INSIDE, RH

main65593-35020iRZN147..ATM199708-200407

main65593-35030iRZN152199708-200407

main65593-35040iLN147,RZN147..(T1,TW1)..MTM..CBU199708-200407

65594APLATE, SIDE PANEL REAR END POST INSIDE, LH

main65594-35020iRZN147..ATM199708-200407

main65594-35030iRZN152,169,174199708-200407

main65594-35040iRZN147..MTM..CBU199708-200407

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-35450iRZN147..Q199708-200108

main65600-35490iLN16#,RZN167..NOB..Q199708-200108

main65600-35500iRZN169199708-200308

main65600-35550iRZN152199908-200108

sub65600-35740

main65600-35580iLN17#,RZN174199711-200407

main65600-35600iLN167..TW1199708-200407

main65600-35610iLN147..TW1199708-200407

main65600-35690iRZN147..ATM..D199708-200308

main65600-35700iLN167..T1199708-200407

main65600-35710iLN147,RZN147..T1..MTM..CBU199708-200407

main65600-35740iRZN152200108-200308

main65600-35850iLN17#,RZN174199711-200407

main65600-35860iLN147,RZN147..T3199708-200407

65631APLATE, REAR WHEEL HOUSE, FRONT RH

main65631-89113iLN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU199708-200407

65632APLATE, REAR WHEEL HOUSE, FRONT LH

main65632-89112iLN147,167,172..(T1,TW1)..CBU199708-200407

65635APANEL, WHEEL HOUSE, REAR RH

main65635-35010iLN147,16#,RZN147,16#..TW1199708-200407

main65635-35020iRZN152199708-200407

65636APANEL, WHEEL HOUSE, REAR LH

main65636-35010iLN165,RZN167199708-200407

main65636-35020iLN147,167,172..T1..CBU199708-200407

65637LINER, REAR WHEEL HOUSE, RH

main65637-35030iRZN147,152,174..CBU199708-200407

main65637-35040iRZN169199708-200407

65638LINER, REAR WHEEL HOUSE, LH

main65638-35030iLN147,167,17#,RZN147,152,174..T1..CBU199708-200407

main65638-35040iLN147,16#,RZN147,16#..TW1199708-200407

65655ABRACKET, WHEEL HOUSE SEAL, FRONT

main65655-89103iLN147,167,17#,RZN147,152,174..T1..CBU199708-200407

65655BBRACKET, WHEEL HOUSE SEAL, FRONT

main65655-89103iRZN147,152,174..CBU199708-200407

65671DBRACE, SIDE PANEL SKIRT, FRONT RH

main65671-35010iLN147,167,17#,RZN147,152,174..T1..CBU199708-200407

65672FBRACE, SIDE PANEL SKIRT, FRONT LH

main65672-35010iLN147,167,17#,RZN147,152,174..T1..CBU199708-200407

65677BPATCH, WHEEL HOUSE, REAR RH

main65677-35010iLN147,167,17#,RZN147,152,174..T1..CBU199708-200407

65678PATCH, WHEEL HOUSE, REAR LH

main65678-35010iLN147,167,17#,RZN147,152,174..T1..CBU199708-200407

65695ABRACKET, WHEEL HOUSE BRACE, NO.2

main65695-35020iRZN152199708-200407

65695BBRACKET, WHEEL HOUSE BRACE, NO.2

main65695-35020iLN165,170,RZN167199708-200407

65816APANEL, REAR BODY SIDE, RH

main65816-35060iRZN147..Q199708-200108

main65816-35090iLN16#,RZN167..NOB..Q199708-200108

main65816-35100iLN165,RZN169..WIB199708-200308

main65816-35120iRZN152199908-200308

main65816-35140iLN172199711-200407

main65816-35150iLN147,167..TW1..D199708-200407

main65816-35160iRZN147..CBU199708-200407

main65816-35200iLN172199711-200407

65817APANEL, REAR BODY SIDE, LH

main65817-35060iRZN147..Q199708-200108

main65817-35090iLN165,RZN167..NOB199708-200108

main65817-35100iRZN169199708-200308

main65817-35120iRZN152199908-200308

main65817-35140iLN170199711-200407

main65817-35150iLN147,167..TW1..D199708-200407

main65817-35160iLN147,167,RZN147..T1..CBU199708-200407

main65817-35200iLN172199711-200407

65826PANEL, REAR BODY SIDE, INNER RH

main65826-35060iLN16#,RZN147,16#..Q199708-200308

main65826-35090iRZN152,174199711-200407

main65826-35120iLN147,167..TW1..D199708-200407

main65826-89111iLN147,167,RZN147..T1..CBU199708-200407

65827PANEL, REAR BODY SIDE, INNER LH

main65827-35060iRZN169199708-200308

main65827-35090iRZN152,174199711-200407

main65827-35120iLN147,167..TW1199708-200407

main65827-89111iLN147,167..T1..CBU199708-200407

66311HOOK, ROPE

main66311-89109iLN147,167..TW1..D199708-200407

7751

9018906220

main90189-06220

9046710018

main90467-10018

9095001561

main90950-01561

9163140614

main91631-40614

9324018016

main93240-18016

43 parts on this diagram · 5 diagrams in section
