ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1��(�-� �-�)

63111PANEL, ROOF

main63111-35150iLN147,167,RZN147..SCB¥24,200199708-200407

main63111-35190iLN17#,RZN152,174¥26,400199711-200407

main63111-35200iLN17#,RZN152,174¥26,400199711-200407

main63111-35220iLN147,16#,RZN147,16#..TW1¥34,400199708-200407

main63111-35240iLN16#,RZN147,16#..Q¥34,400199708-200308

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-35030iRZN147,152,169,174¥2,330199708-200407

63132PANEL, WINDSHIELD HEADER, INNER

main63132-35030iLN147,16#,17#,RZN147,152,16#,174¥5,100199708-200407

63135BPANEL, BACK WINDOW, UPPER INNER

main63135-04040iLN17#,RZN152,174¥4,210199711-200407

main63135-35070iRZN147¥4,210199708-200407

main63135-35090iLN147,16#,RZN147,16#..TW1¥4,210199708-200407

64111APANEL, BACK

main64101-35050iLN147,167,RZN147..SCB¥34,200199708-200407

main64101-35080iLN17#,RZN152,174¥31,200199711-200407

main64101-35100iLN16#,RZN147,16#..Q¥31,200199708-200108

sub64101-35130¥31,200

main64101-35120iLN147,167..TW1¥31,200199708-200407

main64101-35130iRZN169¥31,200200108-200308

64811GLASS, BACK WINDOW

main64811-35010iRZN147¥23,000199708-200407

64812CWEATHERSTRIP, BACK WINDOW GLASS

main64812-35030iLN147,167,RZN147..D¥6,200199708-200407

main64812-35040iRZN152,169,174¥6,200199708-200407

9095001865

main90950-01865¥100

9095001867

main90950-01867¥230

9095001882

main90950-01882¥140

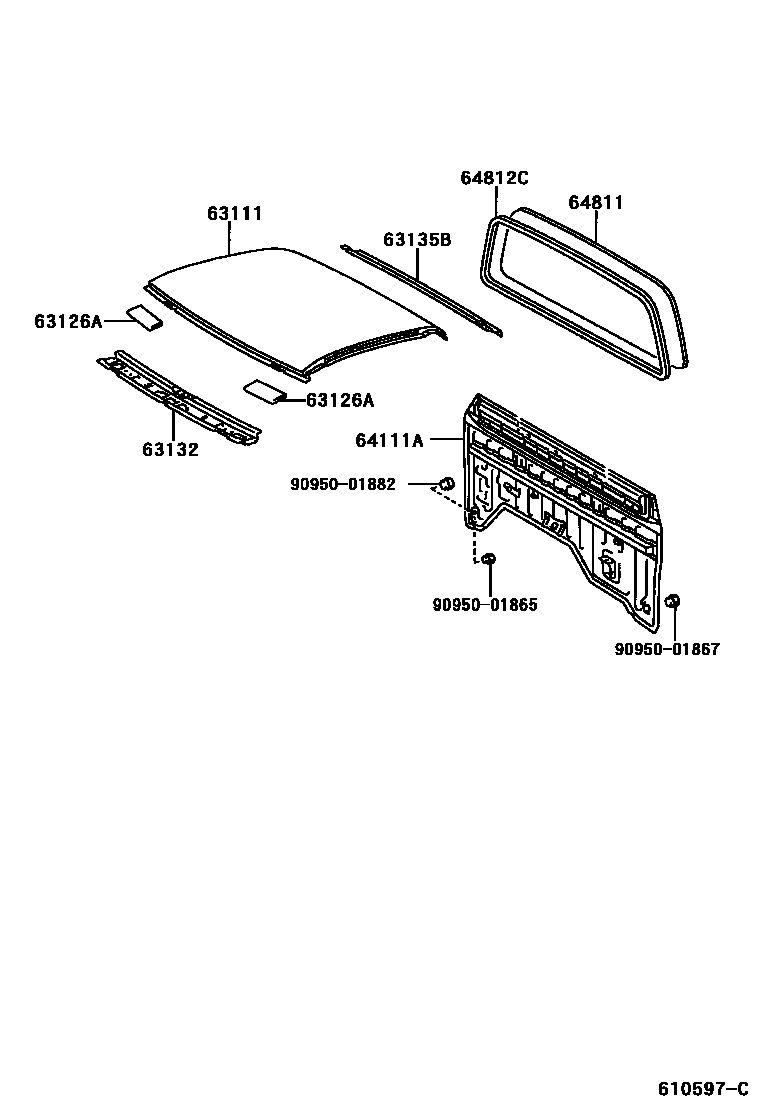

10 parts on this diagram · 3 diagrams in section
