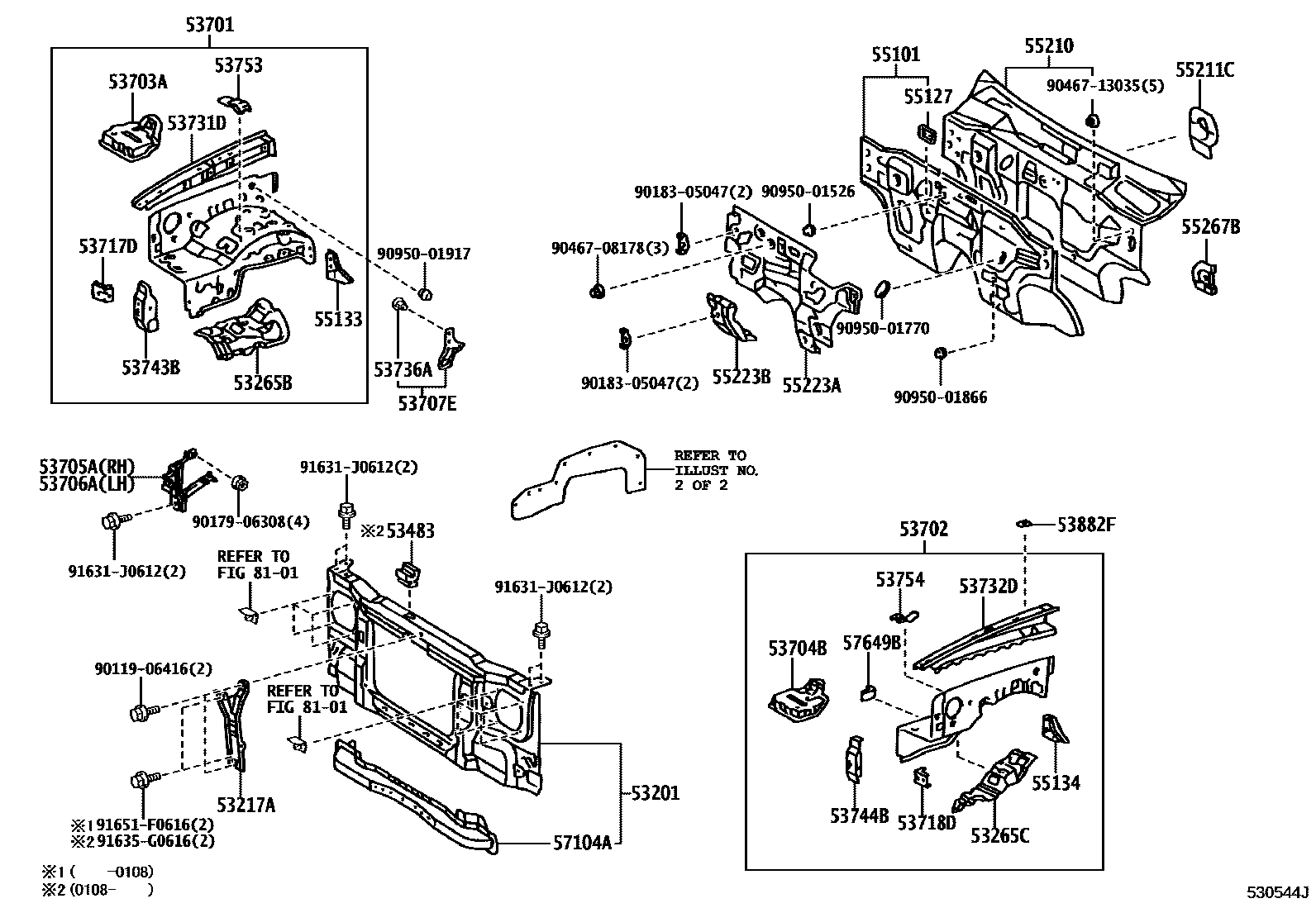

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1��������� ��������

53201SUPPORT SUB-ASSY, RADIATOR

main53201-35130iRZN147199708-200407

main53201-35200iRZN152,169,174200108-200407

53217ABRACE, HOOD LOCK SUPPORT

main53217-35030iLN147,16#,17#,RZN147,152,16#,174199708-200407

main53217-35050iLN172200108-200407

53265BBRACKET, BATTERY CARRIER MOUNTING, NO.1 RH

main53265-35040iLN147,167,172199708-200407

53265CBRACKET, BATTERY CARRIER MOUNTING, NO.1 LH

main53266-35030iLN147,16#,17#,RZN147,152,16#,174199708-200407

53483PROTECTOR, HOOD SUPPORT ROD

main53483-35010iRZN152,169,174200108-200407

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-35660iRZN147..D199708-199908

sub53701-35661

main53701-35670iRZN147,167199708-199908

sub53701-35671

main53701-35720iLN147,167..D199708-199908

sub53701-35721

main53701-35740iLN147,16#199708-199908

sub53701-35741

main53701-35740iLN17#199711-199908

sub53701-35741

main53701-3D110iRZN147..D199908-200308

main53701-3D120iRZN147199908-200308

main53701-3D180iLN147,167..D199908-200407

main53701-3D190iLN147,167,172199908-200407

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-35620iLN147,167..D199708-199908

sub53702-35622

main53702-35630iLN16#,17#..Q199708-199908

main53702-35660iRZN147199708-199908

sub53702-35662

main53702-35670iRZN167199708-199908

sub53702-35672

main53702-35690iLN147,167..D199708-199908

sub53702-35692

main53702-35700iLN16#,17#..Q199708-199908

sub53702-35630

main53702-35880iRZN147,152199908-200009

sub53702-35881

main53702-35881iRZN147,152200009-200308

main53702-35890iRZN169,174199908-200009

sub53702-35891

main53702-35891iRZN169,174200009-200308

main53702-3D040iLN147,167..D199908-200407

sub53702-3D050

main53702-3D050iLN147,167..D199908-200108

main53702-3D050iLN147,167200108-200407

main53702-3D060iLN172199908-200407

sub53702-3D330

main53702-3D070iLN167,172..Q199908-200108

main53702-3D070iLN172200108-200407

53703ASUPPORT SUB-ASSY, BATTERY, RH

main53703-35030iLN147,167,172199708-200407

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-35060iRZN147,152,169,174199708-200407

53705ABRACE SUB-ASSY, FENDER APRON, RH

main53705-35040iLN147,16#,17#,RZN147,152,16#,174199708-200407

main53705-35070iRZN152,169,174200108-200407

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-35040iLN147,16#,17#,RZN147,152,16#,174199708-200407

main53706-35070iRZN152,169,174200108-200407

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-35010iLN147,16#,17#,RZN147,152,16#,174199708-199909

sub53707-35020

main53707-35020iLN147,167,172,RZN147,152,169,174199909-200407

53717DGUSSET, FENDER APRON, RH

main53717-35010iLN147,16#,17#,RZN147,152,16#,174199708-200407

53718DGUSSET, FENDER APRON, LH

main53718-35010iLN147,16#,17#,RZN147,152,16#,174199708-200407

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-35050iLN147,16#,17#,RZN147,152,16#,174199708-200407

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-35050iLN147,16#,17#,RZN147,152,16#,174199708-200407

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10186iLN167..D199909-200407

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-35020iLN147,16#,17#,RZN147,152,16#,174199708-200407

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-35020iLN147,167,172199708-200407

53753BRACKET, RELAY BOX MOUNTING, NO.2

main53753-35020iLN147,16#,17#,RZN147,167199708-200407

53754BRACKET, RELAY BOX MOUNTING, NO.2

main53754-35020iRZN147,152,16#,174199708-200308

53882FSEAL, FRONT FENDER

main53882-16030iLN147,16#,17#,RZN147,152,16#,174199708-200407

55101PANEL SUB-ASSY, DASH

main55101-3D690iLN167..D199708-199805

sub55101-3N690

main55101-3G180iRZN167199708-199908

sub55101-3G670

main55101-3G190iRZN167199708-199908

sub55101-3G670

main55101-3G350iLN165,170199708-199908

sub55101-3M902

main55101-3G510iLN167..D199708-199805

sub55101-3M060

main55101-3G530iRZN147..ATM199708-200308

sub55101-3G550

main55101-3G540iRZN147,152..Q199708-200308

sub55101-3G670

main55101-3G620iLN147,RZN147..MTM199708-200407

sub55101-3N690

main55101-3G640iLN167199805-200407

sub55101-3G670

main55101-3G670iLN172199708-200407

sub55101-3M903

main55101-3G880iLN172199708-200407

sub55101-3G670

main55101-3N530iRZN169,174199908-200308

sub55101-3G670

main55101-3N580iLN147..TW1200108-200407

sub55101-3N680

55127REINFORCEMENT, PARKING BRAKE

main55127-35020iRZN147,152,169,174199708-200407

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-35010iRZN147,152,169,174199708-200407

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-35010iLN147,16#,17#,RZN147,152,16#,174199708-200407

55210INSULATOR ASSY, DASH PANEL

main55210-35180iLN167,172200108-200407

main55210-35180iRZN147..Q;LN16#,17#,RZN152,16#,174199708-200308

main55210-35210iRZN147..D199708-200307

sub55210-35211

main55210-35211iRZN147200307-200308

main55210-35320iLN147199708-200407

55211CCOVER, DASH PANEL INSULATOR

main55211-35040iRZN147..D199708-200308

main55211-35060iRZN147..Q;LN147,16#,17#,RZN152,16#,174199708-200407

55223AINSULATOR, DASH PANEL, OUTER

main55223-35020iLN16#,17#..Q199708-199908

sub55223-35050

main55223-35050iLN167,172..Q199908-200101

sub55223-35051

main55223-35051iLN167,172..Q200101-200407

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55225-35100iLN147,16#,17#,RZN147,167199708-199908

sub55225-35101

main55225-35101iLN147,167,172,RZN147,152,169,174199908-200407

55267BCOVER, DASH PANEL INSULATOR, NO.3

main55267-35010iRZN147..Q;LN147,16#,17#,RZN152,16#,174199708-200407

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-35040iLN147,16#,17#,RZN147,152,16#,174199708-200104

sub57104-35041

main57104-35041iLN147,167,172,RZN147,152,169,174200104-200407

57649BBRACKET, WIRING HARNESS

main57649-35010iLN147,16#,17#,RZN147,152,16#,174199708-200407

8101

9011906416

main90119-06416

9017906308

main90179-06308

9018305047

main90183-05047

9046708178

main90467-08178

9046713035

main90467-13035

9095001526

main90950-01526

9095001770

main90950-01770

9095001866

main90950-01866

9095001917

main90950-01917

91631J0612

main91631-J0612

91635G0616

main91635-G0616

91651F0616

main91651-F0616

46 parts on this diagram · 2 diagrams in section
