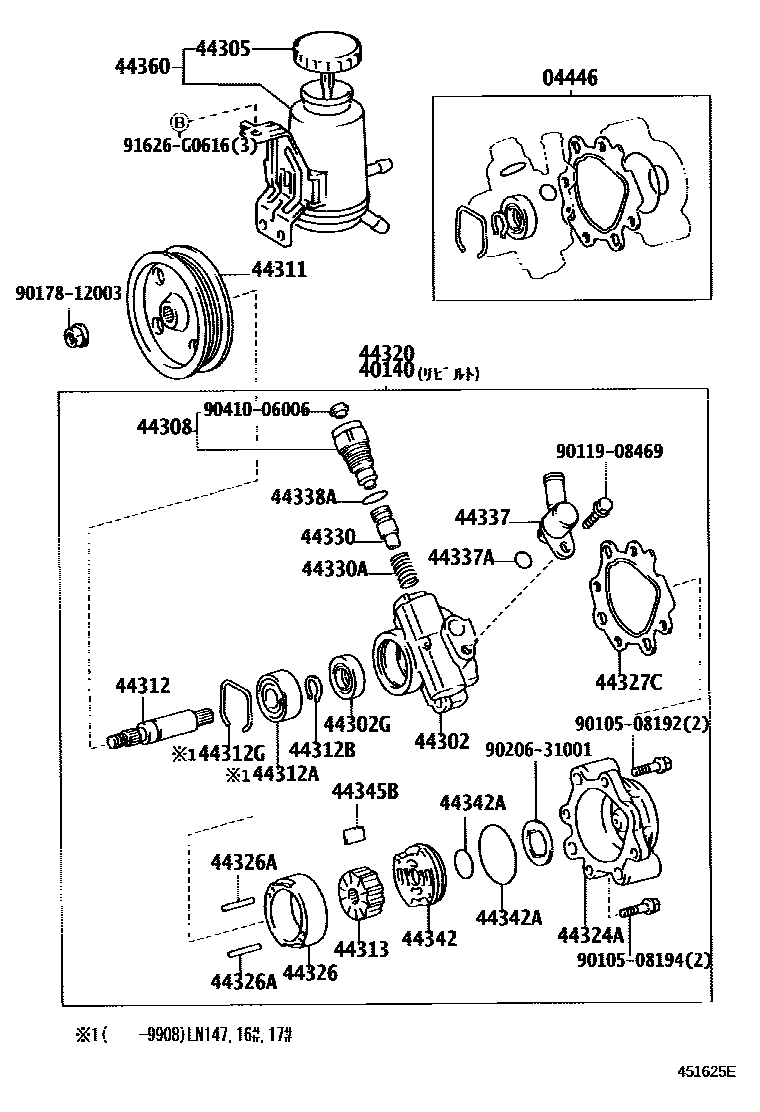

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-30120iRZN147,152,169,174¥2,530199708-200308

main04446-53030iLN147,167,172¥1,360200108-200407

40140PUMP ASSY,VANE REBUILT

main40140-35520iLN147,16#,17#¥57,300199708-199908

sub44320-35520¥81,600

main40140-35521iLN147,167,172¥57,200199908-200108

sub44320-35521¥81,700

main40140-35540iRZN147,152¥57,200199708-200108

sub44320-35540¥81,700

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-26012iLN147,16#,17#,RZN167¥19,900199708-200308

main44302-26030iLN147,167,172¥19,900199908-200407

main44302-34010iRZN169,174¥19,900199908-200308

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17007iLN147,16#,17#,RZN167¥190199708-200308

main90311-18015iLN147,167,172¥210199908-200407

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iRZN169,174¥1,940199908-200308

sub44305-22060¥1,940

main44305-35020iLN147,167,172¥1,490199708-200407

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26041iLN147,167,172¥1,690199708-200407

44311PULLEY, VANE PUMP

main44311-26010iRZN147,152¥7,100199708-200308

main44311-26040iLN147,16#,17#¥7,100199708-199908

main44311-26060iLN147,167,172¥2,980199908-200407

main44311-34020iRZN169,174¥7,100199908-200207

main44311-35070iRZN169,174¥7,500200208-200308

44312SHAFT, VANE PUMP

main44312-26010iRZN147,152,169,174¥1,720199708-200308

main44312-32020iLN147,167,172¥1,300199908-200407

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17013iLN147,16#,17#,RZN167¥1,240199708-200308

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iLN147,167,172¥140199908-200407

main90520-15005iLN147,16#,17#¥80199708-200308

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90521-44002iRZN147,167¥580199708-200308

44313ROTOR, VANE PUMP

main44313-26060iLN147,167,172¥7,700199708-200407

main44313-26070iLN147,167,172¥7,700199708-200407

main44313-26080iLN147,167,172¥7,700199708-200407

main44313-26090iRZN167¥7,700199708-200407

main44313-26100iLN147,167,172¥7,700199708-200407

44320PUMP ASSY, VANE

main44320-35520iLN147,16#,17#¥81,600199708-199908

main44320-35521iLN147,167,172¥81,700199908-200407

main44320-35540iRZN147,152¥81,700199708-200308

main44320-35560iRZN169,174¥93,800199908-200308

44324AHOUSING, PUMP, REAR

main44324-26031iRZN147,152¥4,180199708-200308

main44324-28030iLN147,167,172¥2,510199908-200407

main44324-34010iRZN169,174¥4,090199908-200308

44326RING, CAM(FOR VANE PUMP)

main44325-32270iLN147,167,172¥6,700199708-200407

main44325-32280iRZN147,152,169,174¥6,700199708-200407

main44325-32290iLN147,167,172¥6,700199708-200407

main44325-32300iRZN147,152,169,174¥6,700199708-200407

main44325-32310iRZN147,152,169,174¥6,700199708-200407

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04071iRZN167¥110199708-200407

44327CGASKET, VANE PUMP HOUSING

main44327-26010iRZN167¥460199708-200407

44330VALVE ASSY, FLOW CONTROL

main44330-26071iLN147,167,172,RZN169,174¥8,500199908-200407

main44330-26081iRZN169,174¥8,500199908-200407

main44330-26091iRZN169,174¥8,500199908-200407

main44330-26101iLN147,167,172,RZN169,174¥8,500199908-200407

main44330-26111iLN147,167,172,RZN169,174¥8,500199908-200407

main44330-26121iRZN169,174¥8,500199908-200407

main44330-28011iRZN167¥8,700199708-200308

main44330-28021iRZN167¥8,700199708-200308

main44330-28031iRZN147,152¥8,700199708-200308

main44330-28041iRZN147,152¥8,700199708-200308

main44330-28051iRZN147,152¥8,700199708-200308

main44330-28061iRZN147,152¥8,700199708-200308

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-13034iRZN167¥160199708-200407

44337UNION, POWER STEERING SUCTION PORT

main44337-20050iRZN147,152¥1,870199708-200308

main44337-35070iLN147,167,172¥1,030199908-200407

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iRZN167¥140199708-200407

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iRZN147,167¥300199708-199711

sub90301-19013¥260

main90301-19018iRZN147,167¥240199708-200407

44342PLATE, VANE PUMP SIDE, REAR

main44342-26020iRZN147,152,169,174¥1,530199708-200407

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-18007iRZN147,152,169,174¥110199708-200407

main90301-47001iLN147,167,172¥170199708-200407

44345BPLATE, VANE PUMP

main44345-26010iLN147,167,172¥700199708-200407

main44345-26020iRZN167¥700199708-200407

main44345-26030iRZN167¥700199708-200407

main44345-26040iRZN167¥700199708-200407

main44345-26050iRZN147,152,169,174¥700199708-200407

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-35250iRZN169,174¥10,200199908-200308

main44360-35140iLN165,170,RZN167¥10,300199708-200407

9010508192

main90105-08192¥130

9010508194

main90105-08194¥130

9011908469

main90119-08469¥80

9017812003

main90178-12003¥160

9020631001

main90206-31001¥160

9041006006

main90410-06006¥200

91626G0616

main91626-G0616¥110

33 parts on this diagram · 2 diagrams in section
