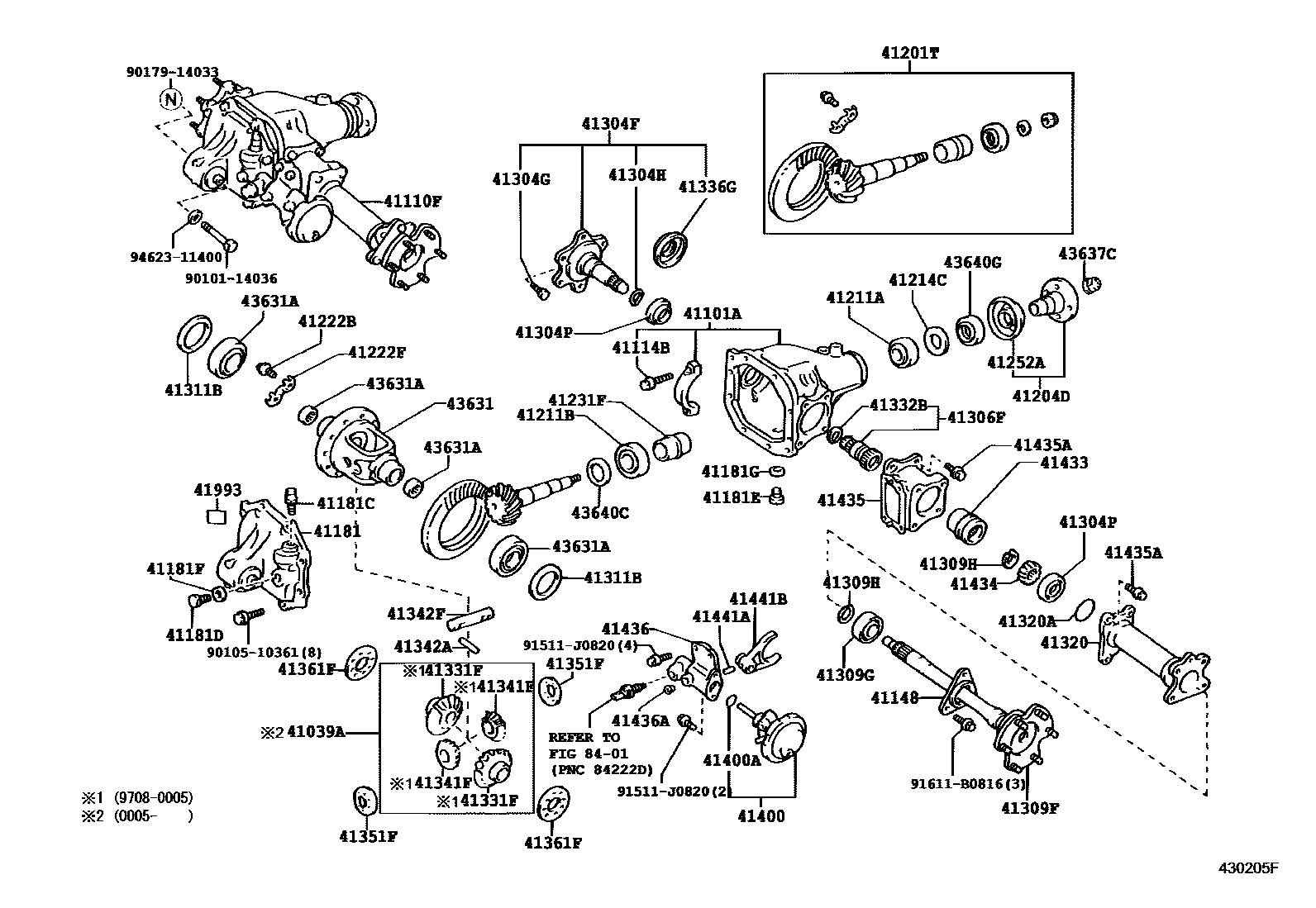

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41148RETAINER, DIFFERENTIAL BEARING
41181COVER, FRONT DIFFERENTIAL CARRIER
41181CPLUG, BREATHER (FOR FRONT DIFFERENTIAL CARRIER COVER)
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304GBOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER
41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41309GBEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
41320TUBE ASSY, FRONT DIFFERENTIAL
41320ARING, O (FOR FRONT DIFFERENTIAL TUBE)
41331FGEAR, FRONT DIFFERENTIAL SIDE
sub41331-14041
41332BRING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT)
41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)
41341FPINION, FRONT DIFFERENTIAL
sub41341-30050
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41400ACTUATOR ASSY, DIFFERENTIAL VACUUM
41400ARING, O (FOR DIFFERENTIAL VACUUM ACTUATOR)
41433SLEEVE, DIFFERENTIAL CLUTCH
41434HUB, DIFFERENTIAL CLUTCH
sub41434-35021
41435CASE, DIFFERENTIAL CLUTCH
sub41035-35010
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
41436COVER, FRONT DIFFERENTIAL CLUTCH CASE
41436APLUG (FOR FRONT DIFFERENTIAL CLUTCH CASE)
41441APIN, SLOTTED SPRING (FOR DIFFERENTIAL SHIFT FORK)
41441BFORK, DIFFERENTIAL SHIFT
41993LABEL, DIFFERENTIAL OIL INFORMATION
43631ABEARING, FRONT AXLE DIFFERENTIAL
43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
43640CSPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
8401
9010114036
main90101-14036
9010510361
main90105-10361
9017914033
main90179-14033
91511J0820
main91511-J0820
91611B0816
main91611-B0816
9462311400
main94623-11400
62 parts on this diagram · 6 diagrams in section
