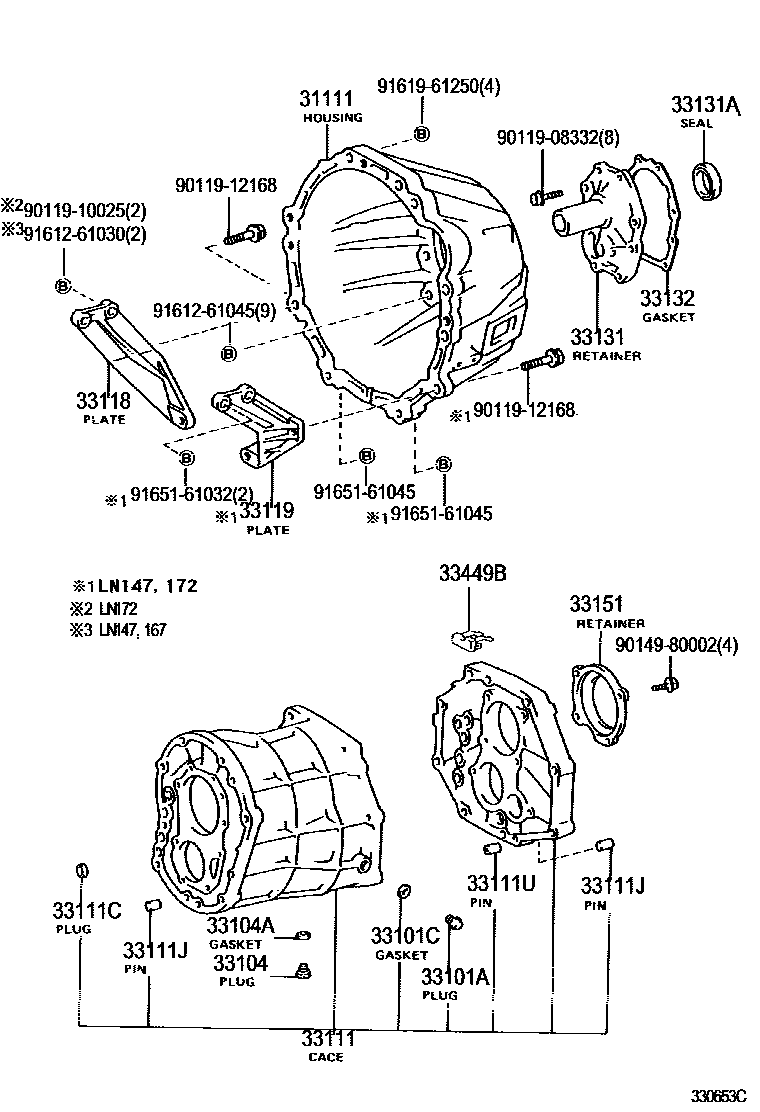

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G52 0002 1G54

31111HOUSING, CLUTCH

main31111-22114iLN147199708-200407

main31111-26032iRZN147,167..MTM199708-200308

main31111-35032iLN167,172199708-200407

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iLN147,167,172,RZN147,167..MTM199708-200407

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iLN147,167,172,RZN147,167..MTM199708-200407

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iLN147,167,172,RZN147,167..MTM199708-200407

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iLN147,167,172,RZN147,167..MTM199708-200407

33111CASE, MANUAL TRANSMISSION

main33101-35050iLN147,167,172,RZN147,167..MTM199708-200407

sub33101-35051

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLN147,167,172,RZN147,167..MTM199708-200407

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLN147,167,172,RZN147..MTM199708-200407

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iLN147,167,172,RZN147..MTM199708-200407

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLN147199708-200407

main33118-26011iRZN147,167..MTM199708-200311

main33118-35060iLN167,172199708-200407

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLN147,172199708-200407

main33119-26021iRZN147..MTM199708-200311

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iLN147,167,172,RZN147,167..MTM199708-200407

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLN147,167,172,RZN147,167..MTM199708-200407

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iRZN167199708-200407

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35030iLN147,167,172,RZN147,167..MTM199708-200407

33449BMAGNET, TRANSMISSION

main33449-26010iLN147,167,172,RZN147,167..MTM199708-200407

9011908332

main90119-08332

9011910025

main90119-10025

9011912168

main90119-12168

9014980002

main90149-80002

9161261030

main91612-61030

9161261045

main91612-61045

9161961250

main91619-61250

9165161032

main91651-61032

9165161045

main91651-61045

25 parts on this diagram · 2 diagrams in section
