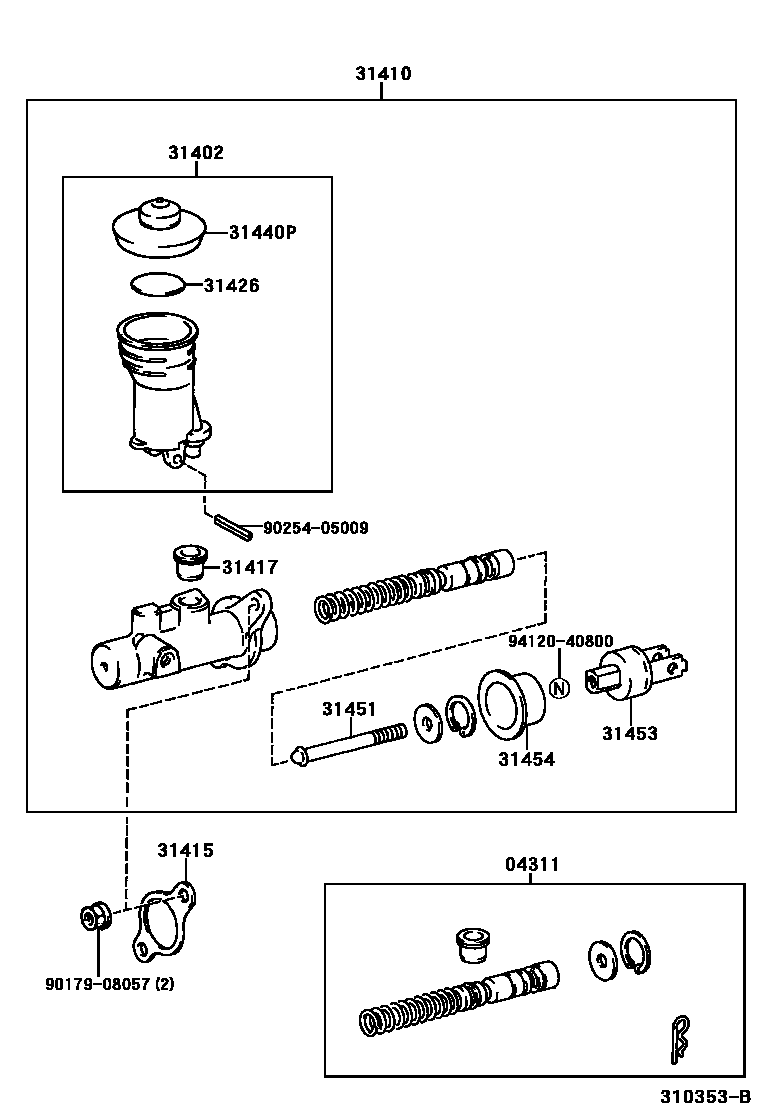

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-26070iLN147,167,172,RZN147,167..MTM199708-200504

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35120iLN147,167,172,RZN147,167..MTM199708-200407

31410CYLINDER ASSY, CLUTCH MASTER

main31410-34012iLN147,167,172,RZN147,167..MTM199708-200407

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iLN147,167,172,RZN147,167..MTM199708-200407

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iLN147,167,172,RZN147,167..MTM199708-200407

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iLN147,167,172,RZN147,167..MTM199708-200407

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iLN147,167,172,RZN147,167..MTM199708-200407

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35080iLN147,167,172,RZN147,167..MTM199708-200407

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iLN147,167,172,RZN147,167..MTM199708-200407

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iLN147,167,172,RZN147,167..MTM199708-200407

9017908057

main90179-08057

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
