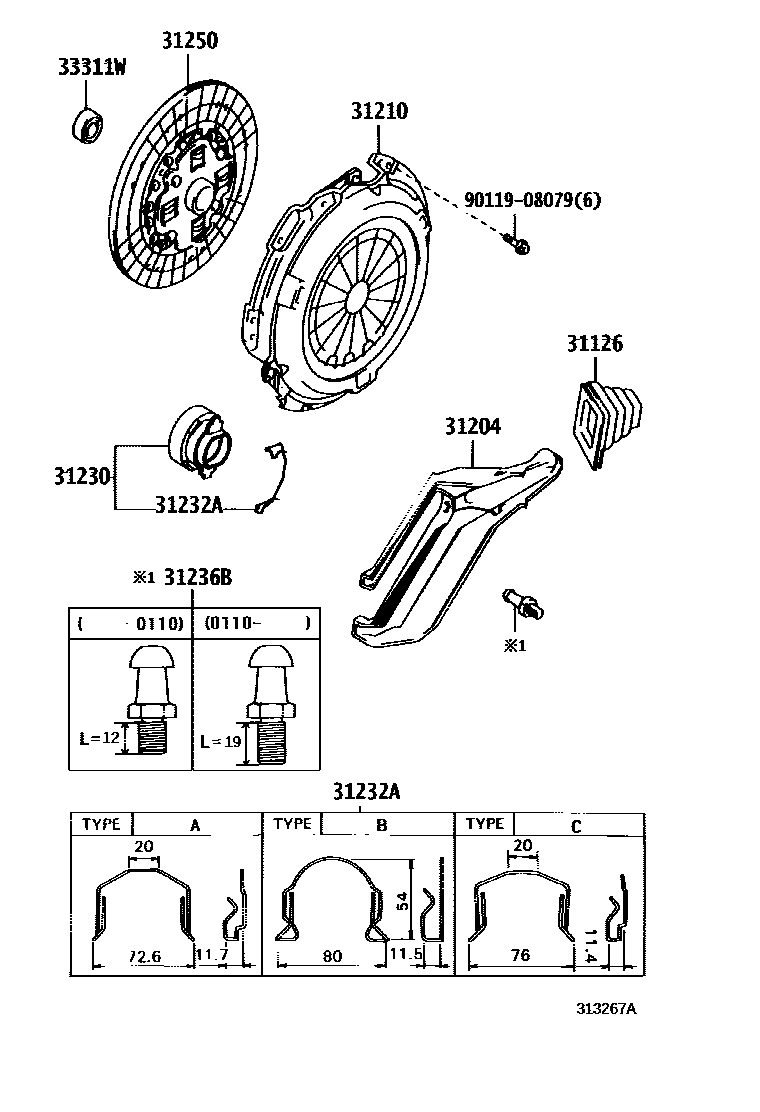

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iLN147,167,172199708-200407

main31126-26020iRZN147,167..MTM199708-200308

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZN147,167..MTM199708-200308

main31204-35050iLN147,167,172199708-200407

31210COVER ASSY, CLUTCH

main31210-26110iRZN147..MTM199708-200308

sub31210-26120

main31210-35121iLN147199708-200102

sub31210-35122

main31210-35122iLN147200102-200407

sub31210-26160

main31210-35181iLN167,172199708-200407

sub31210-35330

31230BEARING ASSY, CLUTCH RELEASE

main31230-22091iLN167,172199708-200407

main31230-35060iLN147200108-200407

sub31230-35061

main31230-35061iLN147199708-200108

main31230-35090iRZN167199708-199908

sub31230-35091

main31230-35091iRZN147..MTM199708-200308

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLN147,RZN147,167..MTM199708-200407

main31232-35030iLN167,172199708-200407

main31232-35040iLN167,172,RZN147,167..MTM199708-200407

31236BSUPPORT, RELEASE FORK

main31236-26010iLN147,167,172,RZN147..MTM200110-200407

main31236-30060iLN147,167,172,RZN147,167..MTM199708-200110

31250DISC ASSY, CLUTCH

main31250-26181iLN147199708-200012

sub31250-26182

main31250-26182iLN147200012-200407

main31250-35301iLN167,172199708-200012

sub31250-35302

main31250-35302iLN167,172200012-200109

sub31250-35303

main31250-35303iLN167,172200109-200407

sub31250-35490

main31250-35380iRZN147,167..MTM199708-199901

sub31250-35381

main31250-35381iRZN147..MTM199901-200308

sub31250-35382

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iLN147,167,172199708-200407

sub90363-12024

main90363-12018iRZN147..MTM200006-200108

main90363-12020iRZN147..MTM200108-200311

9011908079

main90119-08079

9 parts on this diagram · 1 diagram in section
