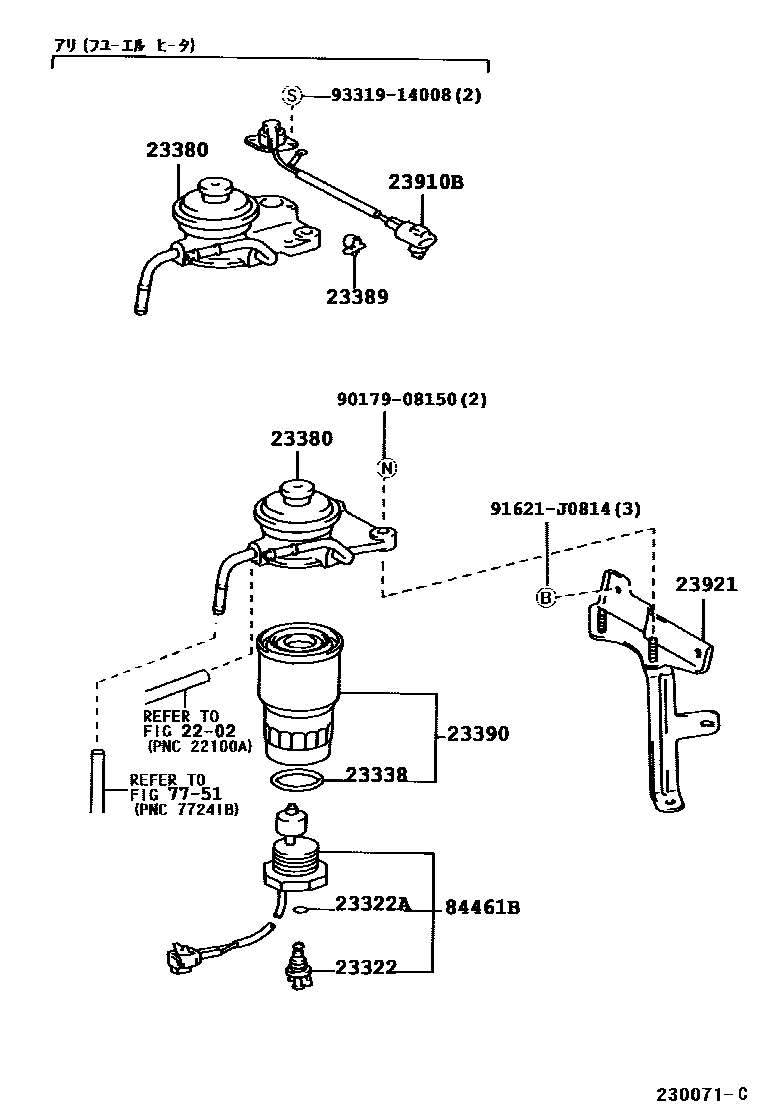

FUEL FILTER

2202

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i5L..LN147,167,172199708-200407

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2LTE,5L..LN147,16#,17#199708-200407

23338GASKET(FOR WARNING SWITCH)

main23344-64010i5L..LN147,167,172199708-200407

23380CAP ASSY, FUEL FILTER

main23380-5B100i2LTE,5L..LN147,16#,17#199708-200407

sub23380-5B101

main23380-5B120i2LTE,5L..LN147,16#,17#199708-200407

sub23380-5B121

23389CLAMP, FUEL FILTER

main23389-64490i2LTE,5L..LN147,16#,17#199708-200407

23390ELEMENT ASSY, FUEL FILTER

main23390-64450i2LTE,5L..LN147,16#,17#199708-200407

sub23390-33030

23910BHEATER ASSY, FUEL

main23910-54140i2LTE,5L..LN147,16#,17#199708-200407

23921SUPPORT, FUEL FILTER

main23921-54451i2LTE,5L..LN147,16#,17#199708-200407

7751

84461BSWITCH, LEVEL WARNING

main84461-28040iLN147,16#,17#199708-200407

sub84461-28041

9017908150

main90179-08150

91621J0814

main91621-J0814

9331914008

main93319-14008

14 parts on this diagram · 1 diagram in section
