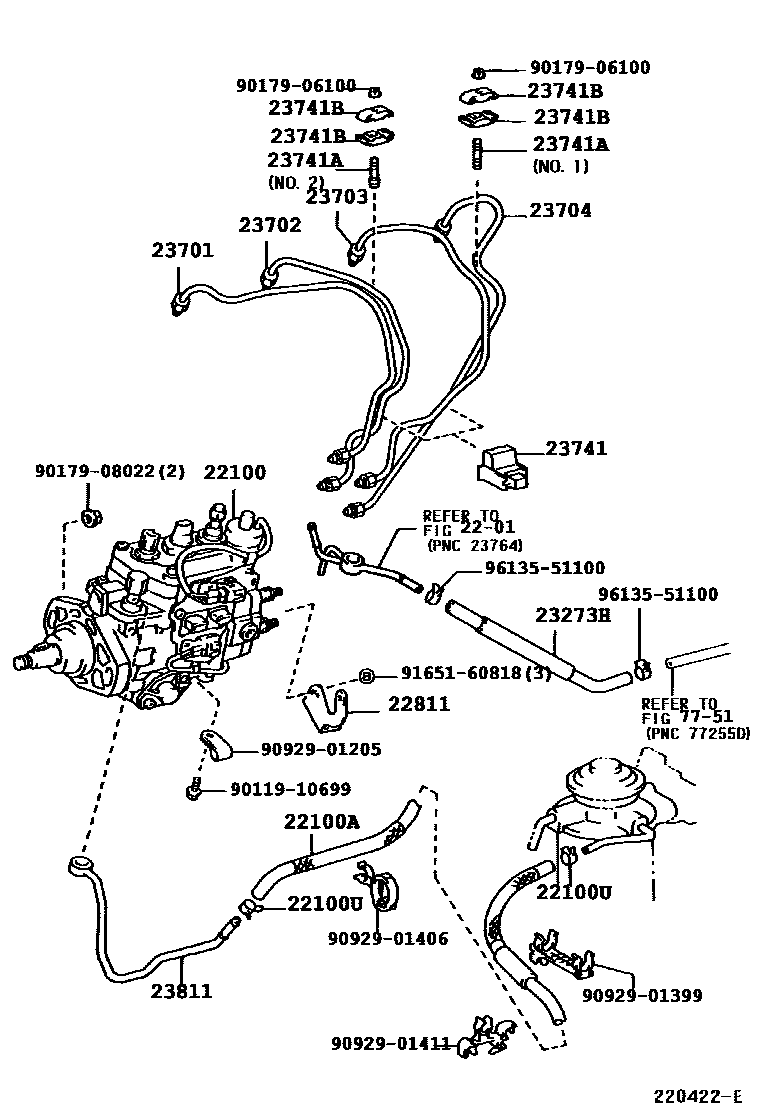

INJECTION PUMP ASSEMBLY

0001 1 0002 1

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5B440i2LTE..LN165,170199708-199908

main22100-5B680i5L..LN147,167,172199708-200407

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-54100i2LTE,5L..LN147,16#,17#199708-200407

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-13050i2LTE,5L..LN147,16#,17#199708-200108

sub96135-51300

main96135-51300i5L..LN147,167,172200108-200407

22811STAY, INJECTION PUMP, NO.1

main22811-54041i5L..LN147,167,172199708-199804

sub22811-54042

main22811-54042i5L..LN147,167,172199804-200407

main22811-54050i2LTE..LN165,170199708-199908

23273HHOSE, FUEL, NO.2

main23273-54050i2LTE,5L..LN147,16#,17#199708-199802

main23273-54060i2LTE,5L..LN147,16#,17#199802-200407

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54130i2LTE..LN165,170199708-199908

main23701-54140i5L..LN147,167,172199708-200407

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54140i5L..LN147,167,172199708-200407

main23702-54160i2LTE..LN165,170199708-199908

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i2LTE,5L..LN147,16#,17#199708-200407

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i2LTE,5L..LN147,16#,17#199708-200407

23741CLAMP, INJECTION PIPE, NO.1

main23741-54030i2LTE,5L..LN147,16#,17#199708-200407

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06041i2LTE..LN165,170199708-199908

sub90116-06095

main90116-06095i2LTE..LN165,170199708-199908

main90116-06095i5L..LN147,167,172199708-200407

23741BCLAMP, INJECTION PIPE

main23741-56010i2LTE,5L..LN147,16#,17#199708-200407

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-05022i5L..LN147,167,172200108-200312

main23811-54151i2LTE,5L..LN147,16#,17#199708-200407

main23811-54151i5L..LN147,167,172200108-200312

7751

9011910699

main90119-10699

9017906100

main90179-06100

9017908022

main90179-08022

9092901205

main90929-01205

9092901399

main90929-01399

9092901406

main90929-01406

9092901411

main90929-01411

9165160818

main91651-60818

9613551100

main96135-51100

24 parts on this diagram · 2 diagrams in section
