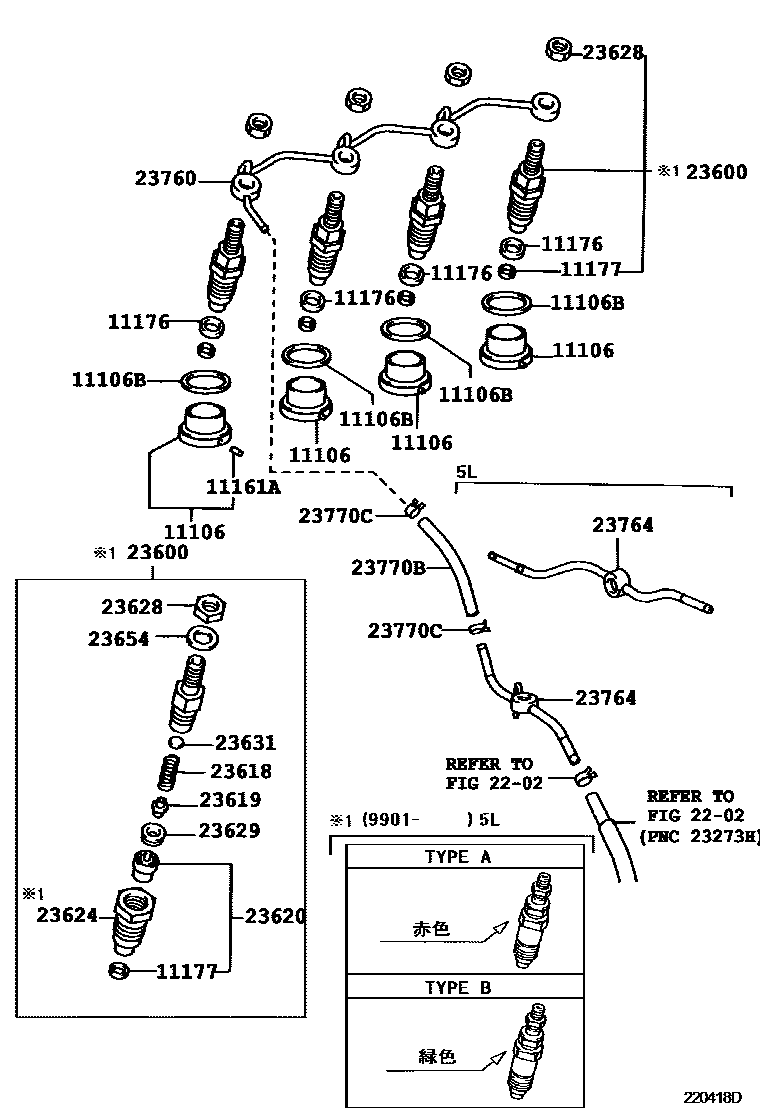

INJECTION NOZZLE

11106CHAMBER SUB-ASSY, COMBUSTION

main11106-54060i5L..LN147,167,172199708-199810

sub11106-54170

main11106-54110i2LTE..LN165,170199708-199908

main11106-54170i5L..LN147,167,172199810-199909

main11106-54171i5L..LN147,167,172199909-200407

sub11106-54170

11106BSHIM(FOR COMBUSTION CHAMBER)

main11165-54030i2LTE..LN165,170199708-200407

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046i2LTE,5L..LN147,16#,17#199708-200407

11176SEAT, INJECTION NOZZLE

main11176-05010i5L..LN147,167,172200301-200407

main11176-64010i5L..LN147,167,172200301-200407

main11176-64010i2LTE,5L..LN147,16#,17#199708-200301

11177GASKET, INJECTION NOZZLE SEAT

main11177-54020i5L..LN147,167,172199708-200407

2202

23600HOLDER & NOZZLE SET, NOZZLE

main23600-59235i2LTE..LN165,170199708-199908

main23600-59265i5L..LN147,167,172199708-199901

sub23600-59266

main23600-59266i5L..LN147,167,172200108-200407

main23600-59266i5L..LN147,167,172199901-200108

main23600-59315i5L..LN147,167,172199901-200108

main23600-59315i5L..LN147,167,172200108-200407

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-54090i2LTE..LN165,170199708-199908

main23618-54730i5L..LN147,167,172199708-200407

23619PIN, NOZZLE HOLDER PRESSURE

main23619-64010i2LTE,5L..LN147,16#,17#199708-200407

23620NOZZLE ASSY

main23620-59055i2LTE..LN165,170199708-199908

main23620-59115i5L..LN147,167,172199708-200407

23624NUT, NOZZLE RETAINING

main23624-64040i5L..LN172;5L..LN147,167..D199901-200108

sub23624-64041

main23624-64041i2LTE,5L..LN147,16#,17#199708-200407

main23624-64041i5L..LN172;5L..LN147,167..D199901-200108

23628NUT(FOR RING PACKING SETTING)

main23628-64010i2LTE,5L..LN147,16#,17#199708-200407

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-54080i2LTE,5L..LN147,16#,17#199708-200407

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-64010i2LTE,5L..LN147,16#,17#199708-200407

main23631-64012i5L..LN147,167,172199708-200407

main23631-64014i2LTE,5L..LN147,16#,17#199708-200407

main23631-64016i2LTE,5L..LN147,16#,17#199708-200407

main23631-64018i2LTE,5L..LN147,16#,17#199708-200407

main23632-64010i5L..LN147,167,172199708-200407

main23632-64012i5L..LN147,167,172199708-200407

main23632-64014i2LTE,5L..LN147,16#,17#199708-200407

main23632-64016i2LTE,5L..LN147,167,17#199708-200407

main23632-64018i5L..LN147,167,172199708-200407

main23633-64010i5L..LN147,167,172199708-200407

main23633-64012i2LTE,5L..LN147,16#,17#199708-200407

main23633-64014i2LTE,5L..LN147,16#,17#199708-200407

main23633-64016i2LTE,5L..LN147,16#,17#199708-200407

main23633-64018i5L..LN147,167,172199708-200407

main23634-64010i2LTE,5L..LN147,16#,17#199708-200407

main23634-64012i2LTE,5L..LN147,16#,17#199708-200407

main23634-64014i2LTE,5L..LN147,16#,17#199708-200407

main23634-64016i2LTE,5L..LN147,16#,17#199708-200407

main23634-64018i2LTE,5L..LN147,16#,17#199708-200407

main23635-64010i5L..LN147,167,172199708-200407

main23635-64012i2LTE,5L..LN147,16#,17#199708-200407

23654WASHER(FOR RING PACKING)

main23654-64010i2LTE,5L..LN147,16#,17#199708-200407

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-54030i2LTE,5L..LN147,16#,17#199708-200407

23764PIPE, NOZZLE LEAKAGE, NO.4

main23764-54071i2LTE..LN165,170199708-199908

main23764-54090i5L..LN147,167,172199708-200407

23770BHOSE, FUEL

main95333-04020i5L..LN147,167,172199708-200407

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main96132-30400i2LTE..LN165,170199708-199908

sub96132-51000

main96132-51000i5L..LN147,167,172200108-200407

main96133-41000i5L..LN147,167,172199708-200108

sub96132-51000

19 parts on this diagram · 1 diagram in section
