STARTER

0001 112V 1.0KW 0002 112V 1.4KW,����� ��� 0003 112V 2.2KW 0004 112V 2.7KW,����� ��� 0005 112V 1.2KW, 1.4KW 0006 112V 2.2KW 0007 112V 2.7KW,����� ���

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i1RZE..RZN147,152199708-200306

12V 1.0KW

main28011-54010i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

main28011-54260i5L..LN147,167,172199708-200407

12V 2.2KW

main28011-54480i5L..LN147,167,172200108-200407

main28011-76070i1RZE..RZN147,152199708-200308

12V 1.4KW

main28011-76070i1RZE..RZN147,152199908-200308

12V 1.2KW,1.4KW

28100STARTER ASSY

main28100-54270i5L..LN147,167,172199708-200407

sub28100-54450

main28100-54320i2LTE,5L..LN147,16#,17#199708-200108

main28100-54480i5L..LN147,167,172200108-200407

sub28100-54481

main28100-75070i1RZE..RZN147,152,167199708-200306

main28100-75090i1RZE,3RZFE..RZN147,152,16#,174199708-200108

sub28100-75091

main28100-75090i1RZE,3RZFE..RZN147,152,169,174200108-200308

sub28100-75091

main28100-75130i3RZFE..RZN169,174199908-200308

28110HOUSING ASSY, STARTER DRIVE

main28110-75070i1RZE..RZN147,152,167199708-200108

12V 1.0KW

main28110-75090i3RZFE..RZN169,174199908-200108

12V 1.2KW,1.4KW

main28110-75090i1RZE..RZN147,152,167199708-200108

12V 1.4KW

main28115-54011i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

main28115-54260i5L..LN147,167,172199708-200108

12V 2.2KW

28120YOKE ASSY, STARTER

main28120-16180i3RZFE..RZN169,174199908-200308

12V 1.2KW

main28120-26071i1RZE..RZN147,152199708-200306

12V 1.0KW

main28120-56081i5L..LN147,167,172199708-200407

12V 2.7KW

main28120-64040i5L..LN147,167,172199708-200407

12V 2.2KW

main28120-66040i1RZE,3RZFE..RZN147,152,16#,174199708-200308

12V 1.4KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15020i1RZE..RZN147,152,167199708-200108

12V 1.0KW

main28130-54430i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

main28130-64170i1RZE,3RZFE..RZN147,152,16#,174199708-200108

12V 1.4KW

main28130-75130i3RZFE..RZN169,174199908-200108

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i1RZE..RZN147,152,167199708-200306

12V 1.0KW

main28140-64040i5L..LN147,167,172199708-200407

12V 2.2KW

main28140-76060i3RZFE..RZN169,174199908-200308

12V 1.2KW

main28140-76070i1RZE,3RZFE..RZN147,152,169,174199708-200308

12V 1.4KW

main28140-77090i2LTE,5L..LN147,16#,17#199708-200407

12V 2.7KW

28143SPRING, STARTER BRUSH

main28143-76060i3RZFE..RZN169,174199908-200108

12V 1.2KW

main90099-17112i3RZFE..RZN169,174199908-200108

12V 1.4KW

main90099-17112i1RZE..RZN147,152,167199708-200108

main90099-17115i5L..LN147,167,172199708-200108

12V 2.2KW

28150SWITCH ASSY, MAGNET STARTER

main28150-54270i5L..LN147,167,172199708-200407

12V 2.2KW

main28150-54320i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

main28150-54480i5L..LN147,167,172200108-200407

12V 2.7KW

main28150-75070i1RZE..RZN147,152,167199708-200306

12V 1.0KW

main28150-75130i1RZE..RZN147,152199708-200308

12V 1.4KW

main28150-75130i3RZFE..RZN169,174199908-200308

12V 1.2KW,1.4KW

28159BCOVER, MAGNET SWITCH

main28159-10040i5L..LN147,167,172199708-200108

12V 2.2KW

main28159-10040i5L..LN147,167,172199708-200108

12V 1.0KW

main28159-55050i1RZE..RZN147,152,167199708-200108

12V 1.4KW

main28159-55050i3RZFE..RZN169,174199908-200108

12V 1.2KW,1.4KW

main28159-56310i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

28160ARMATURE ASSY, STARTER

main28160-26071i1RZE..RZN147,152,167199708-200306

12V 1.0KW

main28160-54140i5L..LN147,167,172199708-200407

12V 2.7KW

main28160-64041i5L..LN147,167,172199708-200407

12V 2.2KW

main28160-74070i1RZE,3RZFE..RZN147,152,169,174199708-200308

12V 1.4KW

main28160-76060i3RZFE..RZN169,174199908-200308

12V 1.2KW

28160ABEARING, STARTER ARMATURE

main28253-45020i1RZE..RZN147,152,167199708-200108

12V 1.0KW

main28253-45020i1RZE..RZN147,152200108-200306

main28253-54070i5L..LN147,167,172199708-200108

12V 2.2KW

main28253-54070i5L..LN147,167,172200108-200407

main90099-10107i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

main90099-10107i5L..LN147,167,172200108-200407

main90099-10196i1RZE..RZN147,152,167199708-200108

12V 1.4KW

main90099-10196i3RZFE..RZN169,174199908-200108

12V 1.2KW,1.4KW

28160BBEARING, STARTER ARMATURE, NO.2

main90099-10113i1RZE..RZN147,152,167199708-200108

12V 1.0KW

main90099-10119i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

main90099-10119i5L..LN147,167,172200108-200407

main90099-10143i5L..LN147,167,172199708-200108

12V 2.2KW

main90099-10143i5L..LN147,167,172200108-200407

main90099-10197i1RZE..RZN147,152,167199708-200108

12V 1.4KW

main90099-10197i3RZFE..RZN169,174199908-200108

12V 1.2KW,1.4KW

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i5L..LN147,167,172199708-200108

12V 2.2KW

main28165-26040i5L..LN147,167,172199708-200108

12V 1.0KW

main28165-76070i1RZE..RZN147,152,167199708-200108

12V 1.4KW

main28165-76070i3RZFE..RZN169,174199908-200108

12V 1.2KW,1.4KW

main28165-77090i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i1RZE..RZN147,152,167199708-200108

12V 1.0KW

main28169-54260i5L..LN147,167,172199708-200108

12V 2.2KW

main28169-55050i1RZE..RZN147,152,167199708-200108

12V 1.4KW

main28169-55050i3RZFE..RZN169,174199908-200108

12V 1.2KW,1.4KW

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i5L..LN147,167,172199708-200108

12V 2.2KW

main28175-10040i5L..LN147,167,172199708-200108

12V 1.0KW

main28175-55050i1RZE..RZN147,152,167199708-200108

12V 1.4KW

main28175-55050i3RZFE..RZN169,174199908-200108

12V 1.2KW,1.4KW

main28175-56310i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

28226STARTER KIT, BATTERY TERMINAL

main28226-22050i3RZFE..RZN169,174199908-200108

12V 1.2KW

main28226-54320i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

main28226-64200i1RZE,3RZFE..RZN147,152,16#,174199708-200108

12V 1.4KW

sub28226-22050

main28226-70040i1RZE..RZN147,152,167199708-200108

12V 1.0KW

main28226-70040i1RZE..RZN147,152200108-200306

main28226-76100i5L..LN147,167,172199708-200108

12V 2.2KW

28226ASTARTER KIT, MOTOR TERMINAL

main28226-54220i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

main28226-72010i1RZE..RZN147,152,167199708-200108

12V 2.2KW

main28226-72010i1RZE..RZN147,152,167199708-200108

12V 1.0KW

main28226-74070i3RZFE..RZN169,174199908-200108

12V 1.2KW,1.4KW

main28226-74070i1RZE..RZN147,152,167199708-200108

12V 1.4KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i3RZFE..RZN169,174199908-200108

12V 1.2KW

main28228-26040i5L..LN147,167,172199708-200108

12V 1.0KW

main28228-26040i1RZE..RZN147,152,167199708-200108

12V 2.2KW

main28228-56080i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i1RZE..RZN147,152,167199708-200108

12V 1.0KW

main28229-26040i5L..LN147,167,172199708-200108

12V 2.2KW

main28229-56080i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

main28229-74070i3RZFE..RZN169,174199908-200108

12V 1.2KW,1.4KW

main28229-74070i1RZE..RZN147,152,167199708-200108

12V 1.4KW

28235PLUNGER, MAGNET SWITCH

main28235-17030i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

main28235-35080i1RZE..RZN147,152,167199708-200108

12V 1.0KW

main28235-35080i5L..LN147,167,172199708-200108

12V 2.2KW

main28235-55050i1RZE..RZN147,152,167199708-200108

12V 1.4KW

main28235-55050i3RZFE..RZN169,174199908-200108

12V 1.2KW,1.4KW

28252GEAR, STARTER IDLE

main28254-45020i1RZE..RZN147,152,167199708-200108

12V 1.0KW

main28254-64040i5L..LN147,167,172199708-200108

12V 2.2KW

main28254-74070i1RZE..RZN147,152,167199708-200108

12V 1.4KW

main28254-74070i3RZFE..RZN169,174199908-200108

12V 1.2KW,1.4KW

main28254-77090i2LTE,5L..LN147,16#,17#199708-200108

12V 2.7KW

9009900902

main90099-00902

9009900907

main90099-00907

9009904473

main90099-04473

9009904562

main90099-04562

9009905129

main90099-05129

9009905251

main90099-05251

9009912009

main90099-12009

9017908204

main90179-08204

9161261055

main91612-61055

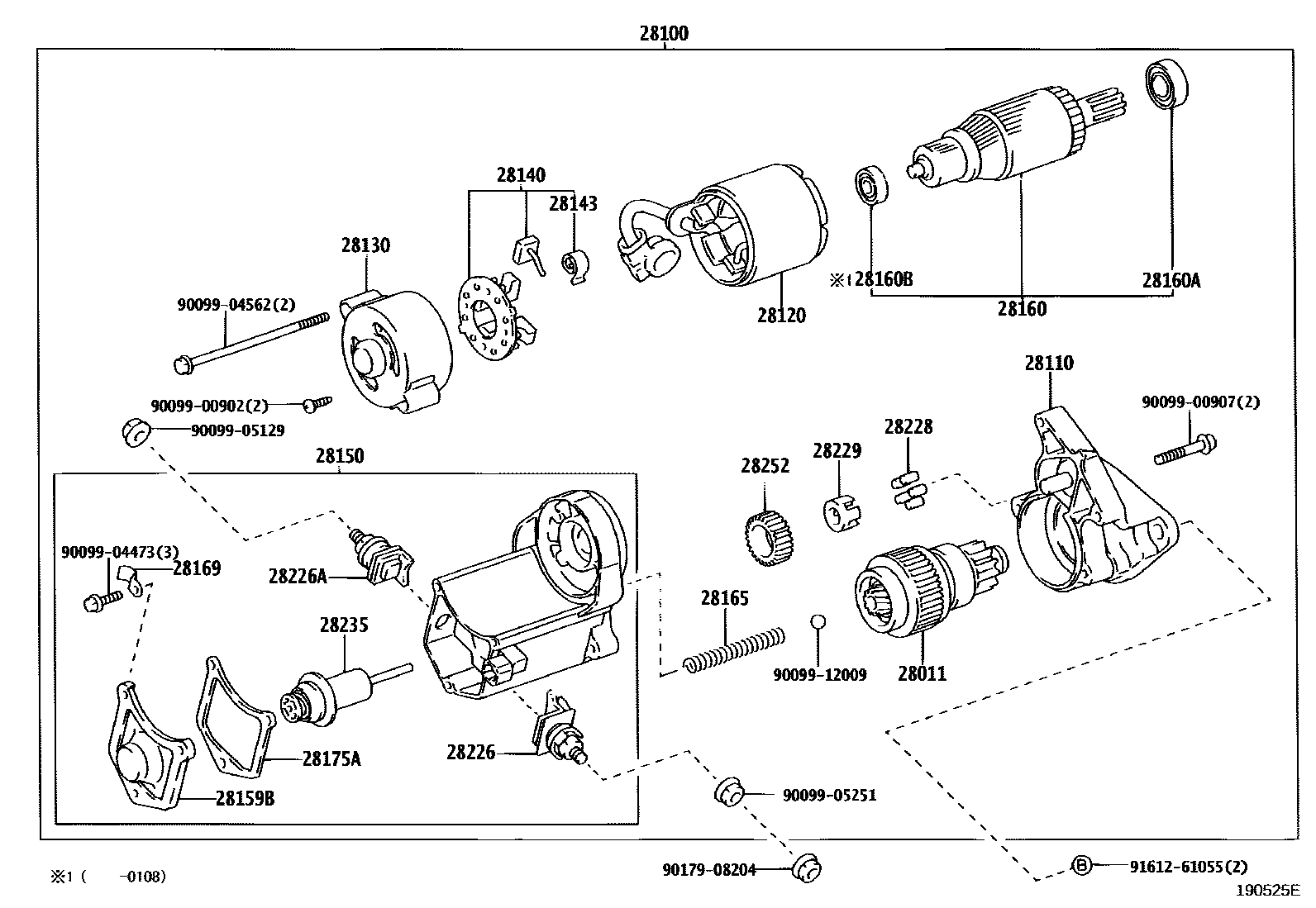

30 parts on this diagram · 7 diagrams in section
