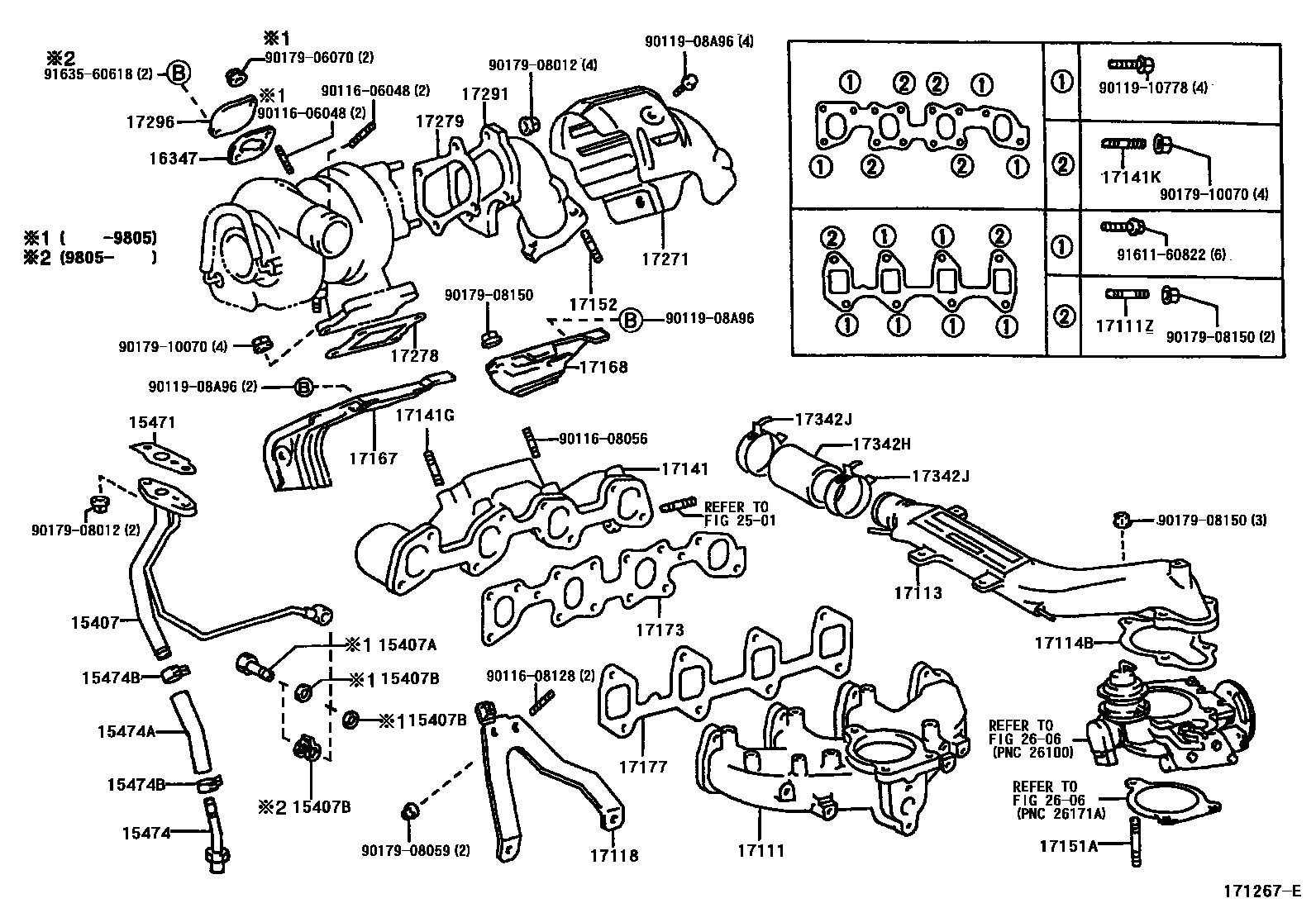

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-54040i2LTE..LN165,170199708-199805

main15407-54041i2LTE..LN165,170199805-199908

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-12097i2LTE..LN165,170199805-199908

main96341-11000i2LTE..LN165,170199708-199805

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90430-10035i2LTE..LN165,170199708-199805

main90904-30004i2LTE..LN165,170199805-199908

15471GASKET, TURBO OIL INLET

main15471-58010i2LTE..LN165,170199708-199908

15474PIPE, TURBO OIL OUTLET

main15476-54020i2LTE..LN165,170199708-199908

15474AHOSE, TURBO OIL OUTLET

main15491-54020i2LTE..LN165,170199708-199908

15474BCLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)

main90467-26003i2LTE..LN165,170199708-199908

sub90467-26007

16347GASKET, WATER BY-PASS

main16347-42020i2LTE..LN165,170199708-199908

17111MANIFOLD, INTAKE

main17101-54092i5L..LN147,167,172199708-200206

main17101-54093i5L..LN147,167,172200206-200212

sub17111-54140

main17101-75020i1RZE..RZN147,152,167199708-200010

main17101-75021i1RZE..RZN147,152200010-200308

main17111-54140i5L..LN147,167,172200212-200407

main17111-75031i3RZFE..RZN169,174199908-200308

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90116-08220i2LTE,5L..LN147,16#,17#199708-200407

17113PIPE, INTAKE

main17113-54120i2LTE..LN165,170199708-199908

17114BGASKET, INTAKE FLANGE

main17116-54011i2LTE..LN165,170199708-199908

main17116-54021i5L..LN147,167,172199708-200008

sub17116-54030

main17116-54030i5L..LN147,167,172200008-200407

17118STAY, MANIFOLD

main17118-54040i2LTE..LN165,170199708-199908

main17118-75020i1RZE..RZN147,152,167199708-200108

17141MANIFOLD, EXHAUST

main17141-54100i2LTE..LN165,170199708-199908

main17141-54121i5L..LN147,167,172199708-200407

main17141-75020i1RZE..RZN147,152,167199708-200308

main17141-75080i3RZFE..RZN169,174199908-200308

17141GBOLT, STUD(FOR TURBOCHARGER)

main90116-10094i2LTE..LN165,170199708-199908

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90116-10140i2LTE..LN165,170199708-199908

main90116-10141i5L..LN147,167,172199708-200407

17151ABOLT, STUD(FOR MANIFOLD TO VENTURI)

main90116-08292i5L..LN147,167,172199708-200407

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10088i5L..LN147,167,172199708-200407

main90116-10149i1RZE,3RZFE..RZN147,152,16#,174199708-200308

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54100i2LTE..LN165,170199708-199908

main17167-54110i5L..LN147,167,172199708-200407

main17167-75060i1RZE..RZN147,152,167199708-200308

main17167-75100i3RZFE..RZN169,174199908-200308

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-54040i2LTE..LN165,170199708-199908

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-54030i5L..LN147,167,172199708-200407

main17173-54050i2LTE..LN165,170199708-199908

main17173-75010i1RZE..RZN147,152,167199708-200308

main17173-75020i3RZFE..RZN169,174199908-200308

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-54021i2LTE,5L..LN147,16#,17#199708-200407

main17177-75011i1RZE..RZN147,152,167199708-200308

main17177-75020i3RZFE..RZN169,174199908-200308

17271INSULATOR, TURBO, NO.1

main17271-54100i2LTE..LN165,170199708-199908

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-54021i2LTE..LN165,170199708-199908

17279GASKET, TURBINE OUTLET ELBOW

main17279-54020i2LTE..LN165,170199708-199908

17291ELBOW, TURBINE OUTLET

main17291-54090i2LTE..LN165,170199708-199908

17296PLATE, BEARING HOUSING, SIDE

main17296-28010i2LTE..LN165,170199708-199908

17342HHOSE, AIR, NO.2(FOR TURBOCHARGER)

main17342-54030i2LTE..LN165,170199708-199908

17342JCLIP, HOSE(FOR INTAKE PIPE)

main90467-48002i2LTE..LN165,170199708-199908

2501

2606

9011606048

main90116-06048

9011608056

main90116-08056

9011608128

main90116-08128

9011908A96

main90119-08A96

9011910778

main90119-10778

9017906070

main90179-06070

9017908012

main90179-08012

9017908059

main90179-08059

9017908150

main90179-08150

9017910070

main90179-10070

9161160822

main91611-60822

9163560618

main91635-60618

43 parts on this diagram · 5 diagrams in section
