VENTILATION HOSE

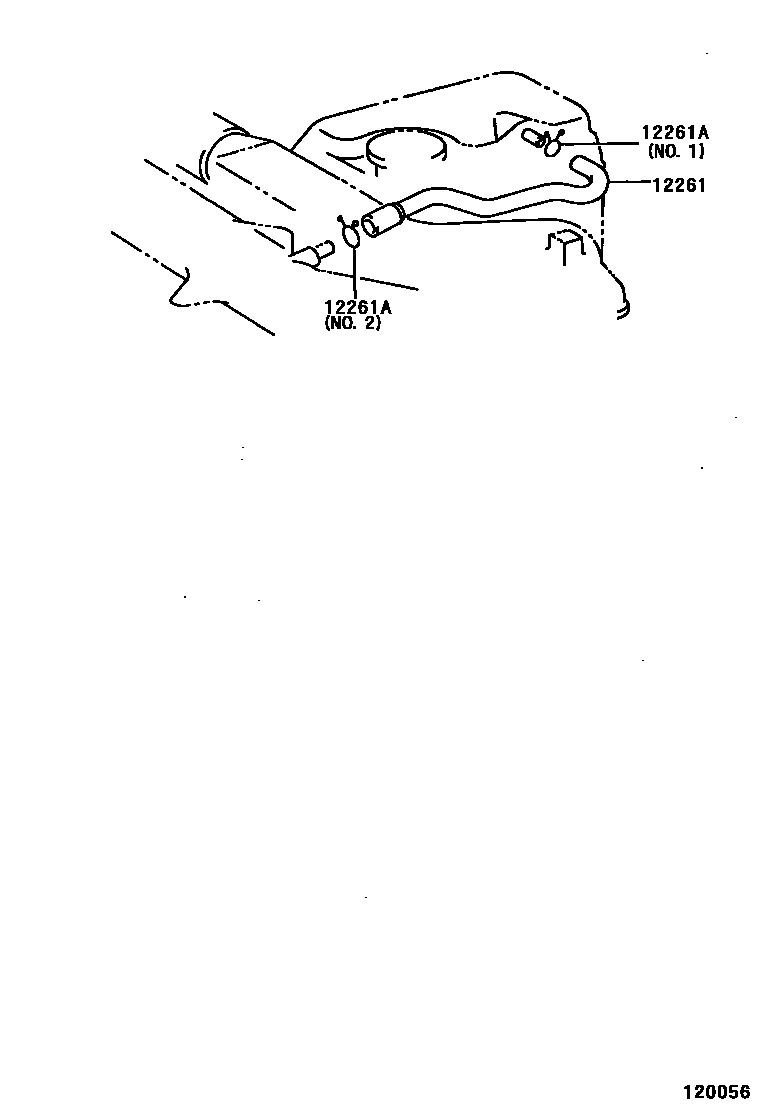

Parts diagram

12261HOSE, VENTILATION

main12261-05020i199903-200407

main12261-54080i199903-200407

main12261-54080i199708-199903

main12261-54120i199708-199908

main12261-75080i199908-200308

main12262-75060i199708-200308

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14001i199908-200308

main90467-14001i199708-200108

main90467-18003i199708-199908

main90467-18003i199708-200407

main90467-21152i199708-199908

main90467-22010i199908-200308

2 parts on this diagram · 4 diagrams in section
