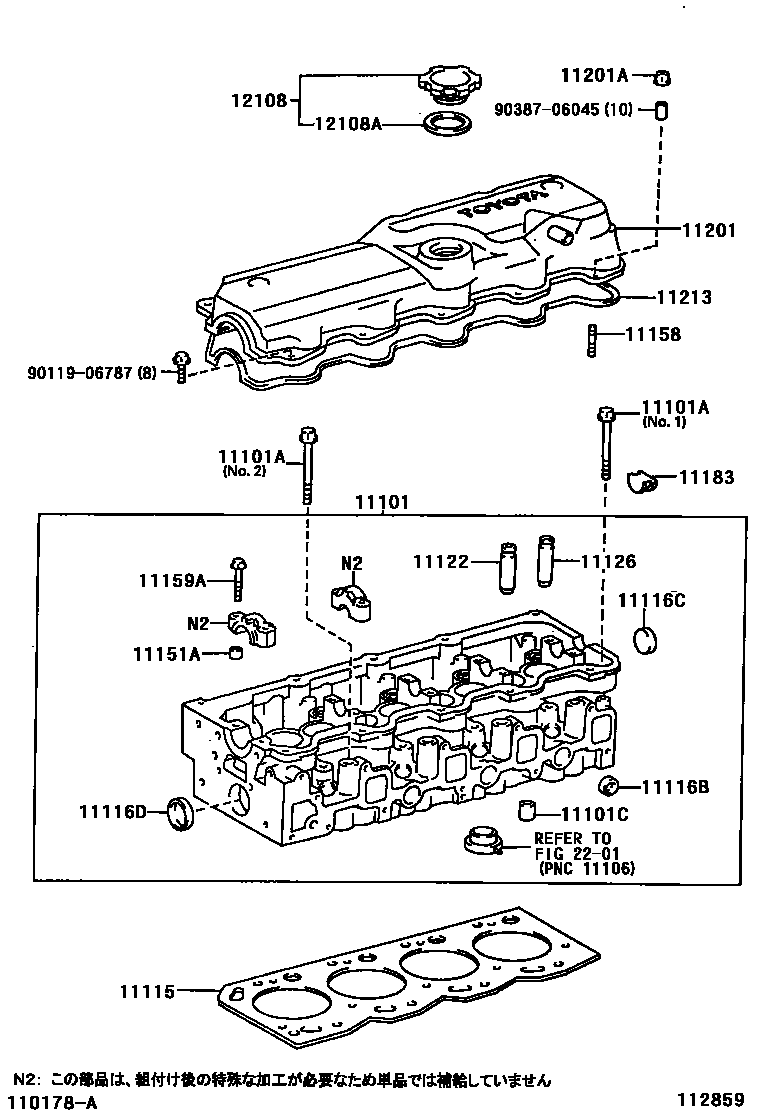

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-54121i2LTE..LN165,170199708-199908

main11101-54150i5L..LN147,167,172199708-200407

main11101-75011i1RZE..RZN147,152199708-200007

sub11101-75012

main11101-75012i1RZE..RZN147,152200007-200308

main11101-79275i3RZFE..RZN169,174199908-200005

sub11101-79276

sub13715-75050

main11101-79276i3RZFE..RZN169,174200005-200308

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02080i5L..LN147,167,172199708-200407

main90910-02081i5L..LN147,167,172199708-200407

main90910-02091i1RZE,3RZFE..RZN147,152,169,174199708-200308

sub90910-02187

11101CTUBE(FOR CYLINDER HEAD)

main90440-15003i5L..LN147,167,172199708-200407

11115GASKET, CYLINDER HEAD

main11115-05010-B0i2LTE..LN165,170199708-199902

sub11115-05011

main11115-05010-D0i2LTE..LN165,170199708-199902

sub11115-05011

main11115-05010-F0i2LTE..LN165,170199708-199902

sub11115-05011

main11115-05011-B0i2LTE..LN165,170199902-199908

main11115-05011-D0i2LTE..LN165,170199902-199908

main11115-05011-F0i2LTE..LN165,170199902-199908

main11115-54084-B0i2LTE..LN165,170199708-199908

main11115-54084-D0i2LTE..LN165,170199708-199908

main11115-54084-F0i2LTE..LN165,170199708-199908

main11115-54120-B0i5L..LN147,167,172199708-200001

sub11115-54121

main11115-54120-D0i5L..LN147,167,172199708-200001

sub11115-54121

main11115-54120-F0i5L..LN147,167,172199708-200001

sub11115-54121

main11115-54121-B0i5L..LN147,167,172200001-200112

sub11115-54130

main11115-54121-D0i5L..LN147,167,172200001-200112

sub11115-54130

main11115-54121-F0i5L..LN147,167,172200001-200112

sub11115-54130

main11115-54130-B0i5L..LN147,167,172200112-200407

main11115-54130-D0i5L..LN147,167,172200112-200407

main11115-54130-F0i5L..LN147,167,172200112-200407

main11115-75010i1RZE..RZN147,152199708-200308

main11115-75031i3RZFE..RZN169,174199908-200308

11116BPLUG, TIGHT, NO.2

main96411-42500i2LTE,5L..LN147,16#,17#199708-199805

main96411-62500i2LTE,5L..LN147,16#,17#199805-200407

11116CPLUG, TIGHT, NO.3

main96411-42800i1RZE..RZN147,152200108

main96411-43000i2LTE,5L..LN147,16#,17#199708-199805

main96411-63000i2LTE,5L..LN147,16#,17#199805-200407

11116DPLUG, TIGHT, NO.4

main96411-44500i2LTE,5L..LN147,16#,17#199708-199805

main96411-64500i2LTE,5L..LN147,16#,17#199805-200407

11122BUSH, INTAKE VALVE GUIDE

main11122-16010i3RZFE..RZN169,174199908-200308

sub11122-16020

main11122-54020i5L..LN147,167,172199708-200407

sub11122-17020

main11122-75010i1RZE..RZN147,152199708-200308

main11123-16010i3RZFE..RZN169,174199908-200308

main11123-54020i5L..LN147,167,172199708-200407

main11123-75010i1RZE..RZN147,152199708-200308

11126BUSH, EXHAUST VALVE GUIDE

main11122-54020i5L..LN147,167,172199708-200407

sub11122-17020

main11122-75010i1RZE..RZN147,152199708-200308

main11123-54020i5L..LN147,167,172199708-200407

main11123-75010i1RZE..RZN167199708-200308

main11126-50050i3RZFE..RZN169,174199908-200308

main11127-50050i3RZFE..RZN169,174199908-200308

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-10006i3RZFE..RZN169,174200108-200308

main90253-11021i2LTE,5L..LN147,16#,17#199708-200407

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main92122-80616i2LTE..LN165,170199708-200407

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-08166i5L..LN147,167,172199708-200407

main90119-07009i3RZFE..RZN169,174200108-200308

main90119-08772i1RZE..RZN147,152200108-200308

11183PLUG, SEMICIRCULAR

main11183-50010i3RZFE..RZN169,174199908-200308

main11183-54020i2LTE,5L..LN147,16#,17#199708-200407

main11183-62010i1RZE..RZN147,152,167199708-200308

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-75010i1RZE..RZN147,152,167199708-200308

main11201-75020i3RZFE..RZN169,174199908-200308

main11210-54032i5L..LN147,167,172199708-200407

main11210-54042i2LTE..LN165,170199708-199908

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90179-06319i2LTE..LN165,170199708-200407

11213GASKET, CYLINDER HEAD COVER

main11213-54050i2LTE,5L..LN147,16#,17#199708-200407

main11213-75020i1RZE..RZN147,152199708-200308

main11213-75030i3RZFE..RZN169,174199908-200308

12108CAP SUB-ASSY, OIL FILLER

main12180-65011i3RZFE..RZN169,174199908-200308

main12180-70020i5L..LN147,167,172199708-200312

main12180-73011i1RZE..RZN147,152,167199708-200407

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i5L..LN147,167,172199708-200312

main12195-73010i1RZE..RZN147,152,167199708-200407

main90430-37140i3RZFE..RZN169,174199908-200308

2201

9011906787

main90119-06787

9038706045

main90387-06045

21 parts on this diagram · 4 diagrams in section
