SHORT BLOCK ASSEMBLY

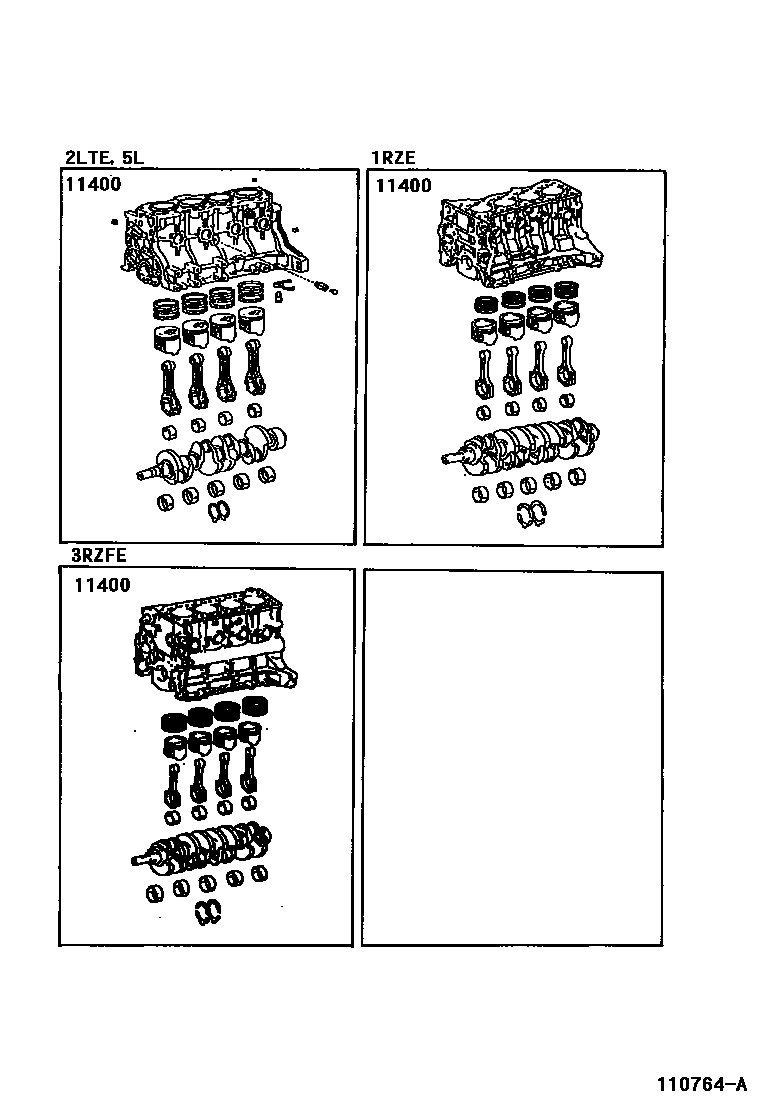

Parts diagram

11400BLOCK ASSY, SHORT

main11400-54151i199708-199908

main11400-54160i199708-200407

main11400-75021i199708-200308

main11400-75061i200108-200308

1 parts on this diagram · 1 diagram in section
