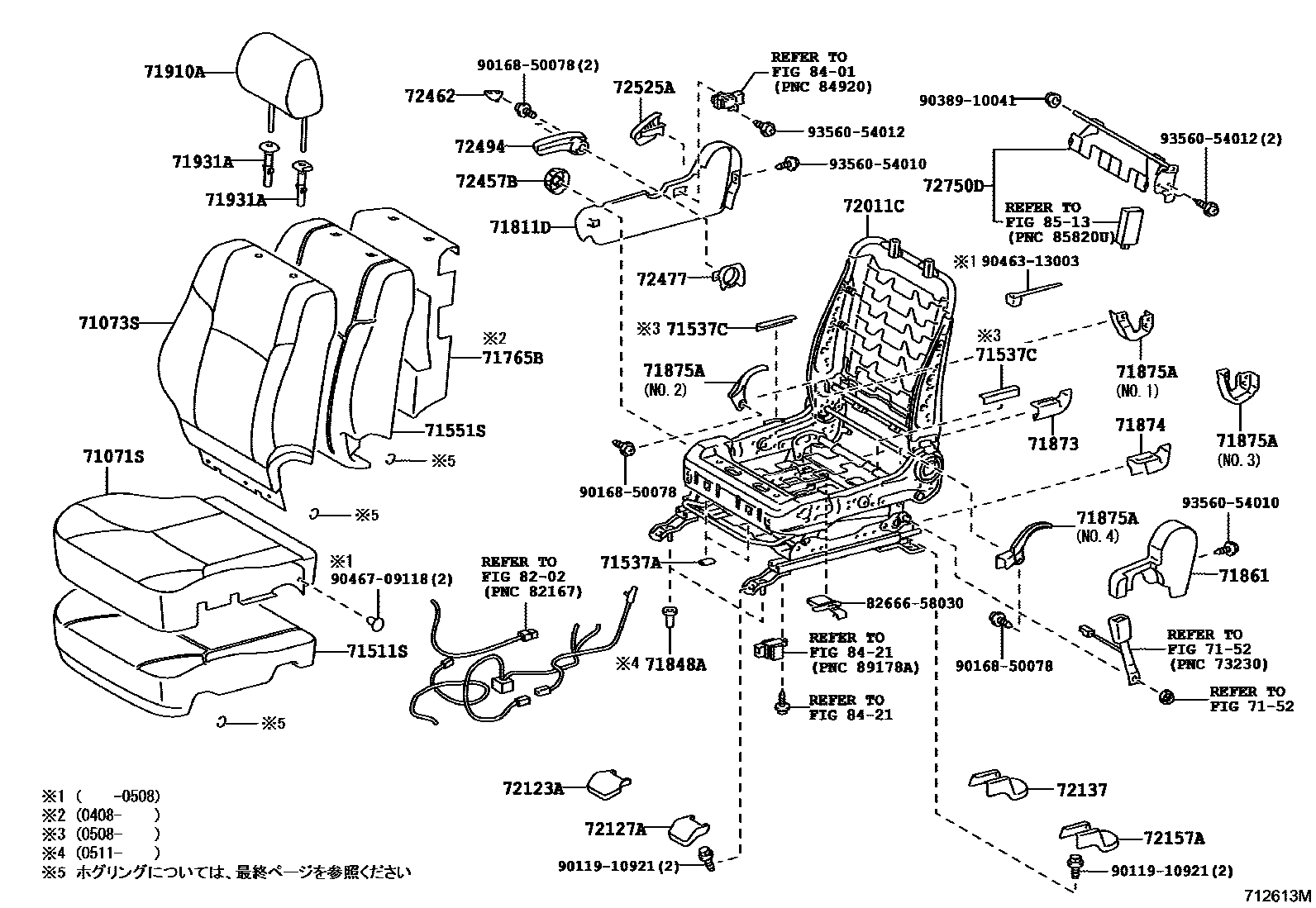

SEAT & SEAT TRACK

0001 1������ 0002 1������-��(SRS�����������) 0003 1������ ��(���� ���) 0004 1������-��(���-�-�&SRS��������0005 1������� 0006 1�������-��(SRS�����������) 0007 1�������-��(���-�-�) 0008 1�������-��(���-�-�&SRS�������0009 1�� 0010 1�������

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-3G280-B1iVZN215..SSRX200211-200408

STONE,TRIM1#

main71071-3G280-B4iTRN215,VZN215..SSRX200408-200508

DARK GRAY,TRIM13

main71071-3G280-E1iTRN21#200408-200508

FAWN,TRIM4#

main71071-3G281-B7iGRN215,TRN21#200508-200908

STONE,TRIM1#

sub71071-3G282

main71071-3G281-E3iGRN215,TRN21#200508-200908

FAWN,TRIM4#

sub71071-3G282

main71071-35A00-B2iTRN21#..SSRX200508-200705

main71071-35A01-B4iTRN21#..SSRX200706-200908

sub71071-35A02

main71071-3G370-B1iTRN215..SSRG200408-200508

main71071-3G370-E1iTRN215..SSRG200408-200508

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-3G220-B2iVZN215..SSRG;KDN215,RZN21#,VZN210200211-200508

STONE,TRIM12

sub71073-3G222

main71073-3G220-B3iTRN215..SSRX200408-200508

DARK GRAY,TRIM13

sub71073-3G222

main71073-35A10-B2iTRN21#..SSRX200508-200604

main71073-35A10-B3iTRN21#..SSRX200604-200705

main71073-35A11-B5iTRN21#..SSRX200706-200908

sub71073-35A12

main71073-3G270-B0iTRN215..SSRG200408-200508

main71073-3G270-E0iKDN215,RZN215,VZN215..SSRG200211-200508

main71073-3G271-B1iGRN215,TRN215..SSRG200508-200908

main71073-3G271-E1iGRN215,TRN215..SSRG200508-200908

main71073-3G440-B0iKDN215,RZN21#,VZN21#200211-200408

main71073-3G440-B2supersedes 71073-3G220-B2iTRN210;TRN215..SSRG200408-200508

main71073-3G440-B3iTRN215,VZN215..SSRX200408-200508

main71073-3G440-E0supersedes 71073-3G220-E1iKDN215,VZN21#200408-200508

main71073-3G440-E1×3supersedes 71073-3G220-E1iTRN21#200408-200508

main71073-3G441-B6supersedes 71073-3G221-B8iGRN215,TRN21#200508-200604

sub71073-3G442

main71073-3G441-B8supersedes 71073-3G221-B8iGRN215,TRN21#200604-200908

sub71073-3G442

main71073-3G441-E3supersedes 71073-3G221-E5iGRN215,TRN21#200508-200604

sub71073-3G442

main71073-3G441-E4supersedes 71073-3G221-E5iGRN215,TRN21#200604-200908

sub71073-3G442

main71073-3G450-B0iTRN215..SSRG200408-200508

main71073-3G450-E0iKDN215,RZN215,VZN215..SSRG200211-200508

main71073-3G451-B1iGRN215,TRN215..SSRG200508-200604

main71073-3G451-B2iGRN215,TRN215..SSRG200604-200908

main71073-3G451-E1iGRN215,TRN215..SSRG200508-200604

main71073-3G451-E2iGRN215,TRN215..SSRG200604-200908

main71074-35670-B2iGRN215,TRN215..SSRX200608-200704

main71074-35671-B4iTRN21#..SSRX200706-200908

sub71074-35672

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-35100iKDN215,RZN21#,VZN21#200211-200508

main71501-35080iKDN215,RZN215,VZN215..SSRG200211-200508

7152

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010×4iKDN215,RZN21#,TRN21#,VZN21#200211-200508

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-60050×2iGRN215,TRN21#200508

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-35110supersedes 71551-35100iKDN215,RZN21#,VZN21#200211-200408

main71551-35111supersedes 71551-35101iGRN215,TRN21#200508-200908

71765BPROTECTOR, FRONT SEATBACK, RH

main71765-60060iGRN215,TRN21#200508

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-35160-B0iTRN215,VZN215..SSRX200408-200508

STONE,TRIM12

main71811-35160-B1iGRN215,TRN21#..SSRX200508-200908

DK.GRAY,TRIM13

main71811-35160-E0iGRN215,TRN21#200508-200908

FAWN,TRIM4#

main71811-35140-B0supersedes 71811-35160-B0iKDN215,RZN215,VZN215..SSRG200211-200508

main71811-35140-E0iKDN215,RZN215,VZN215..SSRG200211-200304

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-33010×2iGRN215,TRN21#200511

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-60100-B2iTRN215,VZN215..SSRX200408-200508

STONE,TRIM12

main71861-60100-B3iTRN215,VZN215..SSRX200408-200508

DK. GRAY,TRIM13

main71861-60100-E0iGRN215,TRN21#200508-200908

FAWN,TRIM4#

main71861-60110-B2supersedes 71861-60100-B2iGRN215,TRN215..SSRG200508-200908

main71861-60110-E0iGRN215,TRN215..SSRG200508-200908

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-58020iGRN215,TRN21#200508

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-58010iTRN21#200408-200508

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-58060iKDN215,TRN21#,VZN21#200408-200508

main71875-58060-C0iKDN215,RZN21#,VZN21#200211-200408

main71875-60160-B2iTRN215,VZN215..SSRX200408-200508

main71875-60160-B3iGRN215,TRN21#..SSRX200508-200908

main71875-60160-E0iGRN215,TRN21#200508-200908

main71876-58060iGRN215,TRN21#200508-200908

main71876-58060-C0iKDN215,RZN21#,VZN21#200211-200408

main71876-60160-B2iTRN215,VZN215..SSRX200408-200508

main71876-60160-B3iTRN215,VZN215..SSRX200408-200508

main71876-60160-E0iGRN215,TRN21#200508-200908

main71875-58030-B0iKDN215,RZN215,VZN215..SSRG200211-200508

main71875-58030-E0iGRN215,TRN215..SSRG200508-200908

main71875-60150-B2supersedes 71876-60160-B2iGRN215,TRN215..SSRG200508-200908

main71875-60150-E0iGRN215,TRN215..SSRG200508-200908

71910AHEADREST ASSY, FRONT SEAT

main71910-35700-B0×2supersedes 71910-35700-B0iGRN215,TRN21#200508-200908

STONE,TRIM1#

main71910-35700-E0×2iKDN215,RZN21#,VZN21#200211-200508

FAWN,TRIM4#

main71910-35710-B1×2iTRN215..SSRG200408-200508

main71910-35710-E1×2iTRN215..SSRG200408-200508

main71910-35720-B0×2iGRN215,TRN215..SSRX200608-200704

main71910-35721-B1×2iTRN21#..SSRX200706-200908

71931SUPPORT, FRONT SEAT HEADREST

main71930-42020-B3×2iTRN215,VZN215..SSRX200408-200508

sub71930-44020

main71930-42020-B4×2iGRN215,TRN21#..SSRX200508-200704

sub71930-44020

main71930-42020-E0×2iKDN215,TRN215,VZN215..SSRG200408-200508

sub71930-44020

main71930-52030-B0×2iTRN21#..SSRX200705-200908

main71930-52030-B6×2iTRN21#..SSRX200705-200908

main71930-52030-E3×2iGRN215,TRN21#200705-200908

main71931-42020-B3×2supersedes 71931-42020-B3iVZN215..SSRG;KDN215,RZN21#,VZN210200211-200508

main71931-42020-B4×2supersedes 71931-42020-B4iGRN215,TRN21#..SSRX200508-200908

main71931-42020-E0×2iKDN215,RZN21#,VZN21#200211-200508

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-B3×3iTRN210;TRN215..SSRG200408-200508

sub71930-44020

main71930-42020-B4×3iTRN215..SSRX200408-200508

sub71930-44020

main71930-42020-E0×3iGRN215,TRN21#200508-200706

sub71930-44020

main71930-52030-B0×3iTRN21#..SSRX200706-200908

main71930-52030-B6×3supersedes 71930-42020-B3iTRN21#..SSRX200706-200908

main71930-52030-E3×3iGRN215,TRN21#200706-200908

main71931-42020-B3×3iTRN210;TRN215..SSRG200408-200508

main71931-42020-B4×3iVZN215..SSRX200211-200508

main71931-42020-E0×3iGRN215,TRN21#200508-200908

72011CADJUSTER SUB-ASSY, FRONT SEAT, RH

main71110-35020iKDN215,RZN215,VZN215..SSRG200211-200309

sub71110-35021

main71110-35070supersedes 71110-35010iKDN215,RZN21#,VZN21#200211-200309

main71110-35071supersedes 71110-35200iTRN21#..SSRX200508-200908

main71110-35080iKDN215,RZN215,VZN215..SSRG200211-200309

main71110-35081iKDN215,RZN215,VZN215..SSRG200310-200408

main71110-35260iGRN215,TRN215..SSRG200508-200908

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-35010-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

main72123-35010-E0iGRN215,TRN21#200508-200908

FAWN,TRIM4#

main72123-35020-B0iGRN215,TRN215..SSRG200508-200908

main72123-35020-E0iGRN215,TRN215..SSRG200508-200908

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-35010-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

main72127-35010-E0iGRN215,TRN21#200508-200908

FAWN,TRIM4#

main72127-35020-B0iGRN215,TRN215..SSRG200508-200908

main72127-35020-E0iKDN215,TRN215,VZN215..SSRG200211-200508

72137COVER, SEAT TRACK, OUTER RH

main72137-35070-B0iGRN215,TRN21#200508-200908

STONE,TRIM1#

main72137-35070-E0iKDN215,TRN21#,VZN21#200211-200508

FAWN,TRIM4#

main72137-35080-B0iGRN215,TRN215..SSRG200508-200908

main72137-35080-E0iGRN215,TRN215..SSRG200508-200908

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72137-35070-B0iTRN215,VZN215..SSRX200211-200508

STONE,TRIM12,13

main72137-35070-E0iGRN215,TRN21#200508-200908

FAWN,TRIM4#

main72157-35010-B0iKDN215,TRN215,VZN215..SSRG200211-200508

main72157-35010-E0iGRN215,TRN215..SSRG200508-200908

72457BKNOB, VERTICAL SEAT ADJUSTER, RH

main72457-58010-B0iTRN215,VZN215..SSRX200408-200508

DK.GRAY,TRIM13

main72457-58010-B1iTRN215,VZN215..SSRX200408-200508

STONE,TRIM12

main72457-58010-E0iTRN21#200408-200508

FAWN,TRIM4#

72462COVER, VERTICAL ADJUSTER RH

main72462-58010-B1iKDN215,RZN21#,VZN21#200211-200309

STONE,TRIM1#

main72462-58010-E0iKDN215,RZN21#,VZN21#200211-200309

FAWN,TRIM4#

main72462-60010-B1iTRN215,VZN215..SSRX200408-200508

STONE,TRIM12

main72462-60010-B3iGRN215,TRN21#..SSRX200508-200908

DK.GRAY,TRIM13

main72462-60010-E0iKDN215,RZN21#,VZN21#200310-200508

FAWN,TRIM4#

72477SPACER, VERTICAL ADJUSTER

main72477-58010iTRN21#200408-200508

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-60010-B1iKDN215,RZN21#,VZN21#200211-200309

STONE,TRIM1#

main72494-60010-E0iKDN215,RZN21#,VZN21#200211-200309

FAWN,TRIM4#

main72494-60020-B1×2iTRN215,VZN215..SSRX200408-200508

STONE,TRIM12

main72494-60020-B3iGRN215,TRN21#..SSRX200508-200908

DK.GRAY,TRIM13

main72494-60020-E0iKDN215,RZN21#,VZN21#200310-200508

FAWN,TRIM4#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-60100-B2iGRN215,TRN21#..SSRX200508-200908

STONE,TRIM12

main72525-60100-B3iTRN215,VZN215..SSRX200408-200508

DK.GRAY,TRIM13

main72525-60100-E0iKDN215,RZN21#,VZN21#200211-200508

FAWN,TRIM4#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-48020iKDN215,RZN21#,VZN21#200310-200508

main72750-60050iKDN215,RZN21#,VZN21#200211-200310

8202

8401

8421

8513

8266658030HOLDER, CONNECTOR

main82666-58030

9011910921

main90119-10921

9016850078

main90168-50078

9038910041

main90389-10041

9046313003

main90463-13003

9046709118

main90467-09118

9356054010

main93560-54010

9356054012

main93560-54012

40 parts on this diagram · 10 diagrams in section
