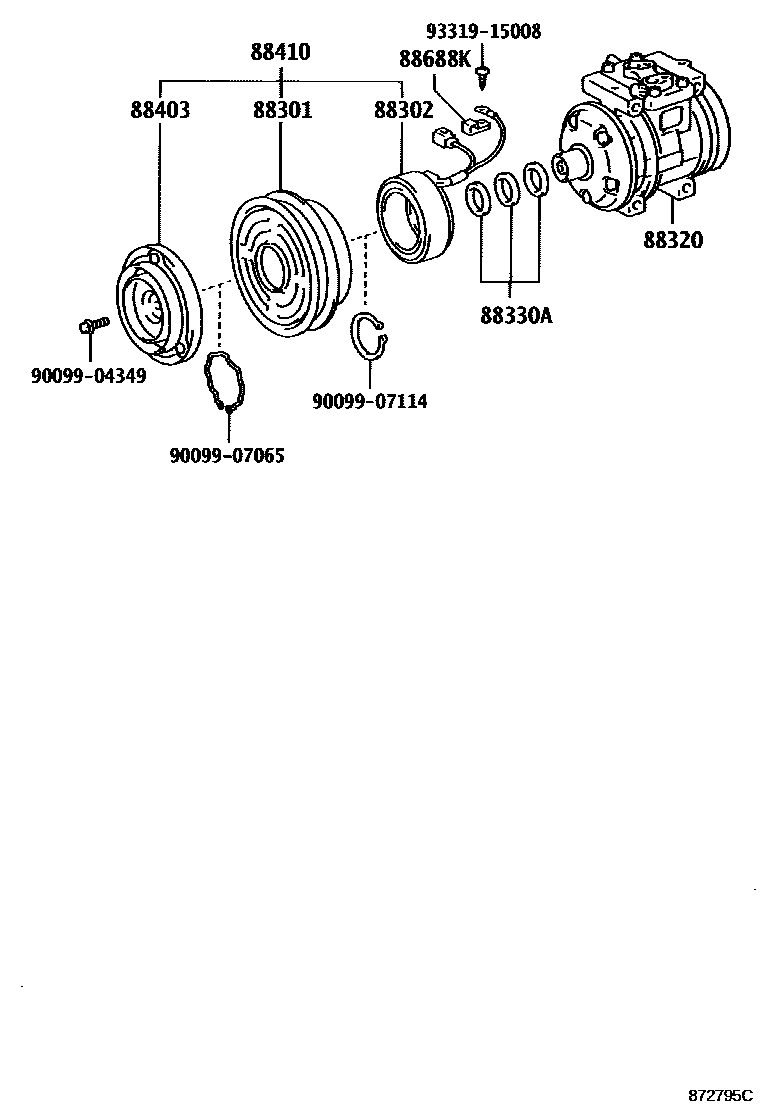

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iRZN18#199608

main88412-26030iKZN185199511-200008

main88412-28090iKDN185200008

main88412-35090iVZN18#199511

main88412-95J00iRZN185199511-199608

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iKZN185,RZN185,VZN185199511-199608

main88411-2A030iKZN185,RZN18#,VZN18#199608

main88411-44010iKDN185200008

88320COMPRESSOR ASSY, COOLER

main88320-35450iRZN18#199511

sub88320-26H91

main88320-35470iKZN185199511-199604

sub88320-26H91

main88320-35600iVZN18#199511

main88320-35610iKZN185199604-199807

sub88320-26H91

main88320-35670iKDN185200008

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iKDN185,KZN185,RZN18#,VZN18#199511

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iKZN185,RZN18#,VZN18#199511

main88403-32010iKDN185200008

88410CLUTCH ASSY, MAGNET

main88410-28200iKDN185200008

main88410-34040iRZN18#199511

main88410-35250iKZN185199511-200008

main88410-35340iVZN18#199511

88688KBRACKET, COOLER COMPRESSOR

main88569-35170iKDN185200008

main88688-2D770iKZN185199604-200008

main88688-35390iRZN18#199511

main88688-37320iVZN18#199604

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9331915008

main93319-15008

11 parts on this diagram · 3 diagrams in section
