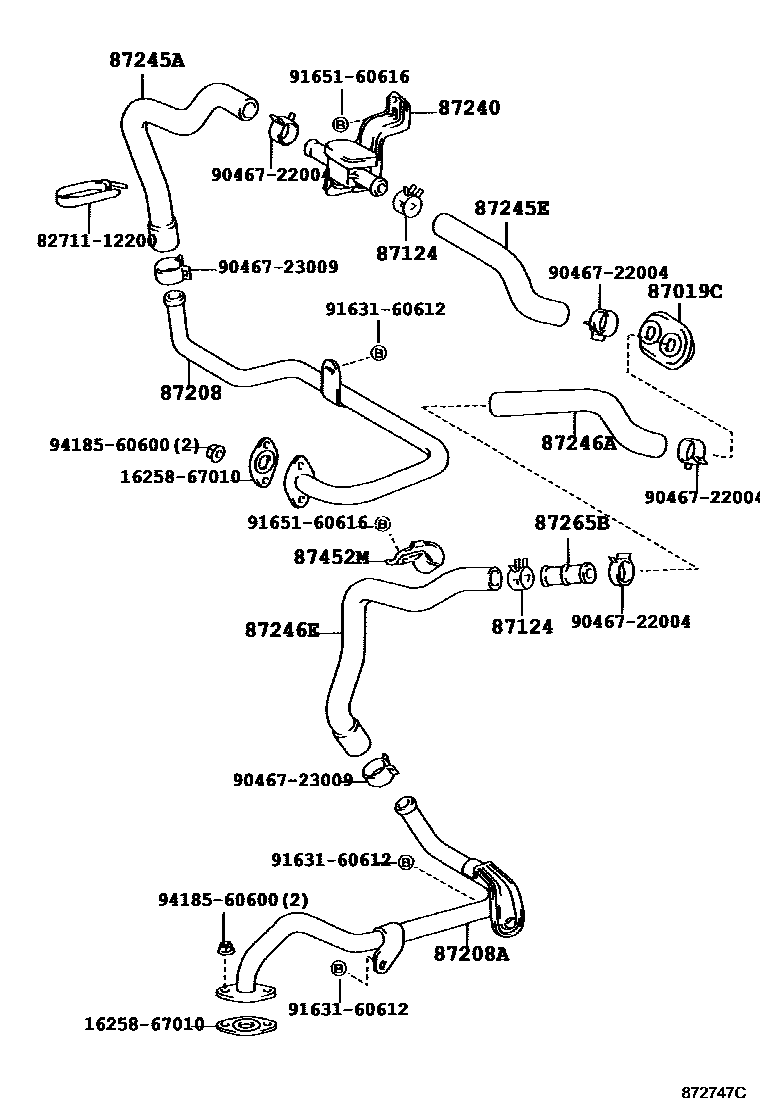

HEATING & AIR CONDITIONING - WATER PIPING

0001 1��(���-�) 0002 1��(���-�) 0003 1��(���-�) 0004 1��(���-�) 0005 1��(���-�) 0006 1��(���-�) 0007 1��(���-�) 0008 1��(���-�) 0009 1��(�� �-�) 0010 1��(�� �-�) 0011 1��(�� �-�) 0012 1��(�� �-�)

87019CGROMMET, HEATER HOSE

main90480-01405iKZN185,RZN18#,VZN18#..EFI,TDE199511

main90480-01682iKDN185,KZN185..DCR,TDI199607

87124CLAMP, HEATER

main87124-28030×2iKZN185,RZN185199511-199609

main96134-42100×2iKZN185,RZN185199610-200008

87208PIPE SUB-ASSY, HEATER WATER

main87208-35250iKZN185199511-200008

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-35260iKZN185199511-200008

87240VALVE ASSY, HEATER WATER

main87240-35030iKZN185,RZN18#..EFI,TDE199511

main87240-35040iVZN18#199511

main87240-35060iKDN185,KZN185..DCR,TDI199607

87245AHOSE, HEATER WATER, INLET A

main87245-35360iKZN185..(SSR,SSRV,SSRX)..TDE199511-199807

main87245-35440iRZN18#..SPR,SSR,SSRV,SSRX199511

main87245-35490iRZN180..SSRV;RZN185..SSRG199807

main87245-35540iKZN185..(SSR,SSRV,SSRX)..TDE199511-199807

main87245-35580iVZN18#199511

main87245-35790iKZN185..TDI199607-199807

main87245-35870iKDN185200008-200009

main87245-35871iKDN185200009

main87245-3D140iKZN185199807-200008

main87245-3D160iVZN18#..SPR,SSRX199807

main87245-60670iVZN185..SSRX199708-199807

87245EHOSE, HEATER WATER, INLET E

main87245-35520iKZN185,RZN18#..EFI,TDE199511

main87245-35610iVZN18#199511

main87245-35780iKZN185..5F;KZN185..NOB199807-200008

87246AHOSE, HEATER WATER, OUTLET A

main87245-35370iKZN185..TDE199511-199807

main87245-35380iRZN18#199511-200008

main87245-35400iVZN18#199511

main87245-35830iKZN185..TDI199607-200008

main87245-35880iKDN185200008-200009

main87245-35881iKDN185200009

main87245-3D210iRZN18#200008

main87245-60740iKZN185..SSRX..TDI199708-200008

87246EHOSE, HEATER WATER, OUTLET E

main87245-35510iRZN18#..SPR,SSR,SSRV,SSRX199511-200008

main87245-35550iKZN185..(SSR,SSRV,SSRX)..TDE199511-199807

main87245-35570iKZN185..(SSR,SSRV,SSRX)..TDE199511-199807

main87245-35600iVZN18#199511

main87245-35760iRZN185..SSRG199807-200008

main87245-3D220iRZN18#200008

87265CONNECTOR, HEATER WATER HOSE

main87265-35220iRZN180;RZN185..SSRG199807-200211

main87265-35250×2iKZN185..SSRG..TDE199511-199708

main87265-35280iVZN18#..SPR,SSRX199708-200211

main87265-35350iKZN185..TDI199607-199807

main87265-35360iKZN185..TDI199607-199807

main87265-35380iKZN185199807-200008

main87265-35390iKZN185..SSRX199807-200008

main87265-35400iKZN185199807-200008

main87265-35420iKDN185200008-200009

main87265-35421iKDN185200009-200211

main87265-35430iKDN185200008-200009

main87265-35431iKDN185200009-200211

main87265-60050iKZN185..SSRX..TDI199708-199807

main87265-60150iVZN18#..SPR,SSRX199708-200211

87265BCONNECTOR, HEATER WATER HOSE, NO.2

main87265-35190iKZN185..TDE199511-199807

main87265-35230iRZN185..SSRG199807-200008

main87265-35240iRZN18#..SPR,SSR,SSRV,SSRX199511-200008

main87265-35290iVZN18#199511

main87265-35370iKZN185..TDI199607-200008

main87265-35400iKDN185200008

main87265-35440iRZN18#200008

main87265-35450iRZN18#..SPR,SSRV,SSRX200008

main87265-60080iKZN185..SSRX..TDI199708-200008

87452MBRACKET, REAR HEATER PIPE, NO.4

main87452-35020iKZN185..TDE199511-199807

1625867010GASKET(FOR HEATER RETURN)

main16258-67010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9046722004

main90467-22004

9046723009

main90467-23009

9163160612

main91631-60612

9165160616

main91651-60616

9418560600

main94185-60600

19 parts on this diagram · 12 diagrams in section
