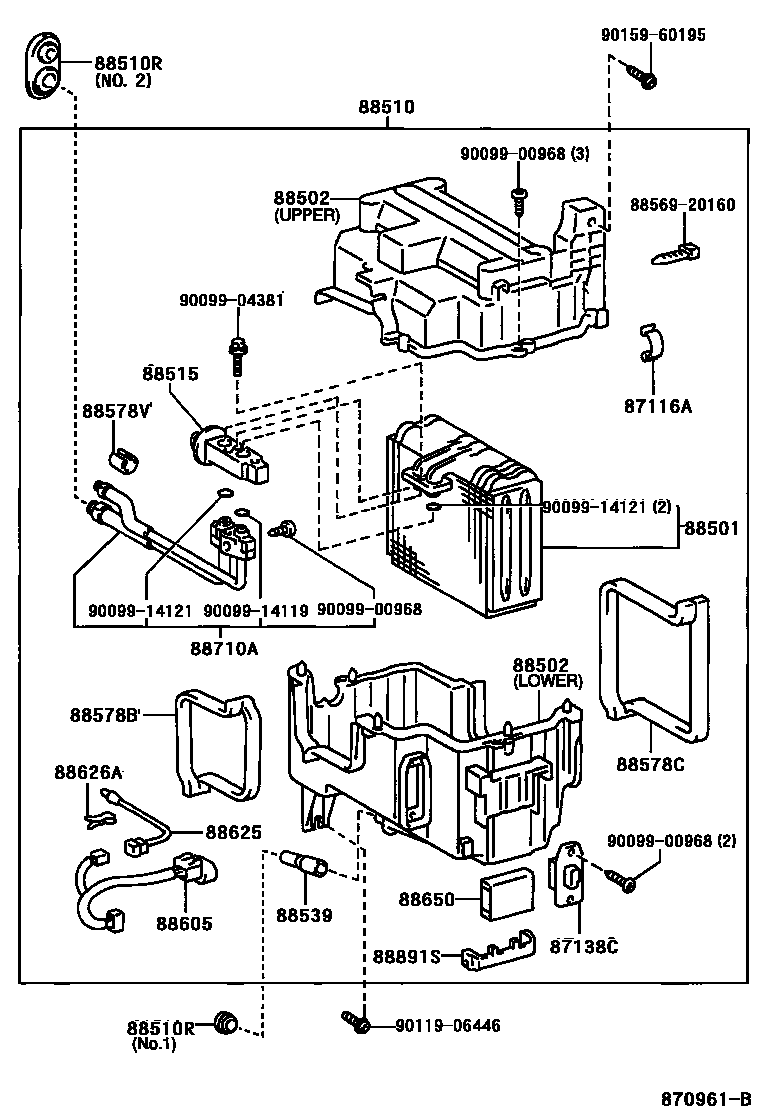

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1��������� 0002 1�-����� 0003 1�-�����

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×3iKZN185,RZN185,VZN185199511-199708

87138CRESISTOR, BLOWER

main87138-35050iKZN185,RZN185..SSR,SSRV,SSRX199511-199708

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-35040iKDN185,KZN185,RZN18#,VZN18#199807

88502CASE SUB-ASSY, COOLING UNIT

main88502-35010iKZN185,RZN185,VZN185199511-199708

main88502-35020iKZN185,RZN185,VZN185199708-199807

main88502-35110iKDN185,KZN185,RZN18#,VZN18#199807

88510UNIT ASSY, COOLER

main88510-35530iRZN185..SSR,SSRV199708-199807

sub88510-35531

main88510-35540iKZN185..SSR,SSRV,SSRX199511-199708

sub88510-35541

main88510-35550iKZN185,RZN185,VZN185..SSRG,SSRV,SSRX199511-199807

sub88510-35551

main88510-35710iKDN185,KZN185,RZN18#,VZN18#199807

88510RGROMMET (FOR COOLER UNIT)

main90480-01677iKZN185,RZN185,VZN185199511-199708

main90480-26022iKDN185,KZN185,RZN18#,VZN18#199807

88515VALVE, COOLER EXPANSION

main88515-20100iKZN185,RZN185,VZN185199511-199708

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-35010iKZN185,RZN185,VZN185199511-199708

88578BPACKING, COOLING UNIT, NO.1

main88578-35040iKZN185,RZN185,VZN185199708-199807

88578CPACKING, COOLING UNIT, NO.2

main88578-35050iKZN185,RZN185,VZN185199511-199708

88578VPACKING, COOLING UNIT, NO.3

main88578-35070iKZN185,RZN185,VZN185199511-199708

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-35220iRZN185..SSR,SSRV199708-199807

main88605-35230iKZN185..SSR,SSRV,SSRX199511-199708

main88605-35290iKZN185,RZN185,VZN185..SSRG,SSRV,SSRX199511-199807

88625THERMISTOR, COOLER, NO.1

main88625-3A090iKZN185,RZN185,VZN185199511-199708

88626AHOLDER, THERMISTOR

main88626-28010iKZN185,RZN185,VZN185199708-199807

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-35040iKZN185..SSR,SSRV199708-199807

main88650-35060iRZN185..SSR,SSRV199708-199807

88710ATUBE ASSY, AIR CONDITIONER

main88710-35280iKZN185,RZN185,VZN185199511-199708

main88710-35370iKDN185,KZN185,RZN18#,VZN18#199807

88891SCOVER, COOLER, NO.1

main88891-35010iKZN185,RZN185,VZN185199511-199708

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

9009900968

main90099-00968

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9011906446

main90119-06446

9015960195

main90159-60195

24 parts on this diagram · 3 diagrams in section
