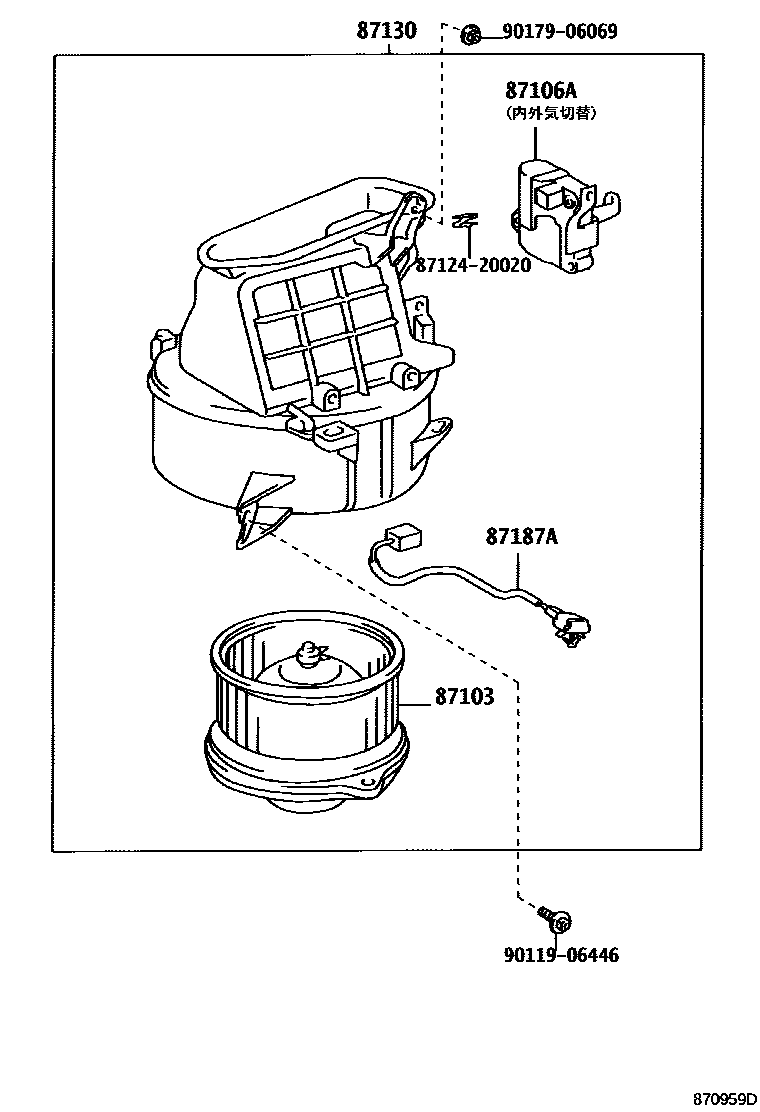

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1�����-� ���� 0002 1�����-� ����-� 0003 1���-� 0004 1����� �-�

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-35010iKZN185,RZN18#,VZN18#199511-199812

main87103-35030iKDN185,KZN185,RZN18#,VZN18#199812

87106ASERVO SUB-ASSY, DAMPER

main87106-35030iKDN185,KZN185,RZN18#,VZN18#199807

main87106-35040iKZN185,RZN185,VZN185..SSRG,SSRV,SSRX199511-199807

main87106-35050iKZN185,RZN185,VZN185..SSRG,SSRV,SSRX199511-199807

main87106-35110iKDN185,RZN18#,VZN185200008

87130BLOWER ASSY, HEATER, FRONT

main87130-35050iKZN185,RZN185..SSR,SSRV,SSRX199511-199708

main87130-35060iKZN185,RZN185,VZN185..SSRG,SSRV,SSRX199511-199807

main87130-35130iKDN185,KZN185,RZN18#,VZN18#199807

87187AWIRE, BLOWER MOTOR LEAD

main87187-35030iKZN185,RZN185,VZN185..SSRG,SSRV,SSRX199511-199807

8712420020CLAMP, HEATER

main87124-20020

9011906446

main90119-06446

9017906069

main90179-06069

7 parts on this diagram · 4 diagrams in section
