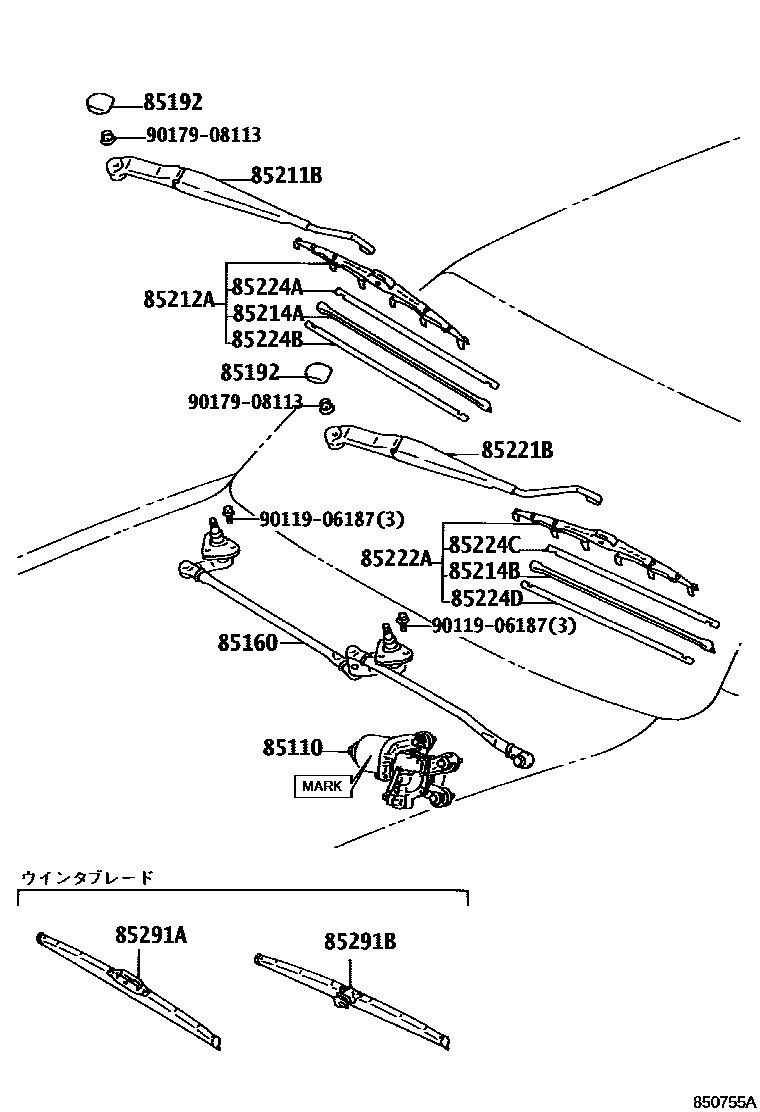

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-35220iKZN185,RZN185,VZN185199511-199705

main85110-35340iKDN185,KZN185,RZN18#,VZN18#199705

85160LINK ASSY, WINDSHIELD WIPER

main85150-35140iKZN185,RZN18#,VZN18#199511-199909

sub85150-35190

main85150-35190iKDN185,KZN185,RZN18#,VZN18#199909

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iKDN185,KZN185,RZN18#,VZN18#199511

85211BARM, FRONT WIPER, RH

main85211-35070iKDN185,KZN185,RZN18#,VZN18#199511

85212ABLADE, FR WIPER, RH

main85212-35060iKDN185,KZN185,RZN18#,VZN18#199511

sub85212-35061

85214ARUBBER, WIPER, RH

main85214-35030iKDN185,KZN185,RZN18#,VZN18#199511

sub85214-22420

85214BRUBBER, WIPER, LH

main85214-35040iKDN185,KZN185,RZN18#,VZN18#199511

sub85214-48020

85221BARM, FRONT WIPER, LH

main85221-35070iKDN185,KZN185,RZN18#,VZN18#199511

85222ABLADE, FR WIPER, LH

main85222-35080iKDN185,KZN185,RZN18#,VZN18#199511

sub85222-48030

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-35010iKDN185,KZN185,RZN18#,VZN18#199511

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-35010iKDN185,KZN185,RZN18#,VZN18#199511

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-35040iKDN185,KZN185,RZN18#,VZN18#199511

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-35040iKDN185,KZN185,RZN18#,VZN18#199511

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-60020iKDN185,KZN185,RZN18#,VZN18#199511

sub85291-33050

main85291-60080iKDN185,KZN185,RZN18#,VZN18#199710

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-30030iKDN185,KZN185,RZN18#,VZN18#199511

sub85291-22080

9011906187

main90119-06187

9017908113

main90179-08113

17 parts on this diagram · 1 diagram in section
