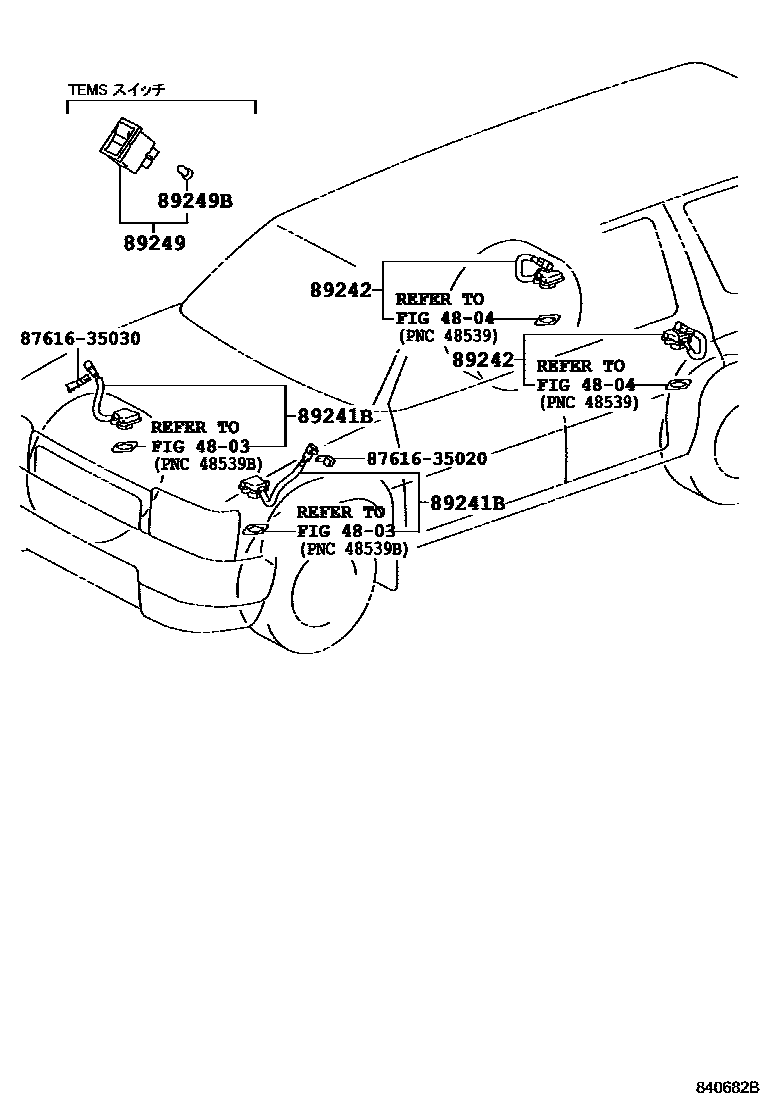

ELECTRONIC MODULATED SUSPENSION

4803

4804

89241BACTUATOR, ABSORBER CONTROL

main89241-35020×2iKZN185,VZN185..SSRG;KZN185,RZN185..SSRX..(EFI,TDE)199511-199807

89242ACTUATOR, ABSORBER CONTROL, RR

main89242-35020×2iKZN185,VZN185..SSRG;KZN185,RZN185..SSRX..(EFI,TDE)199511-199807

89249SWITCH, ABSORBER CONTROL

main89249-35020iKZN185,VZN185..SSRG;KZN185,RZN185..SSRX..(EFI,TDE)199511-199807

main89249-35030iKZN185,RZN185,VZN185..SSRG199807

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10340iKZN185,RZN185,VZN185..SSRG199807

8761635020CLAMP, COOLING UNIT CASE

main87616-35020

8761635030CLAMP, COOLING UNIT CASE

main87616-35030

8 parts on this diagram · 1 diagram in section
