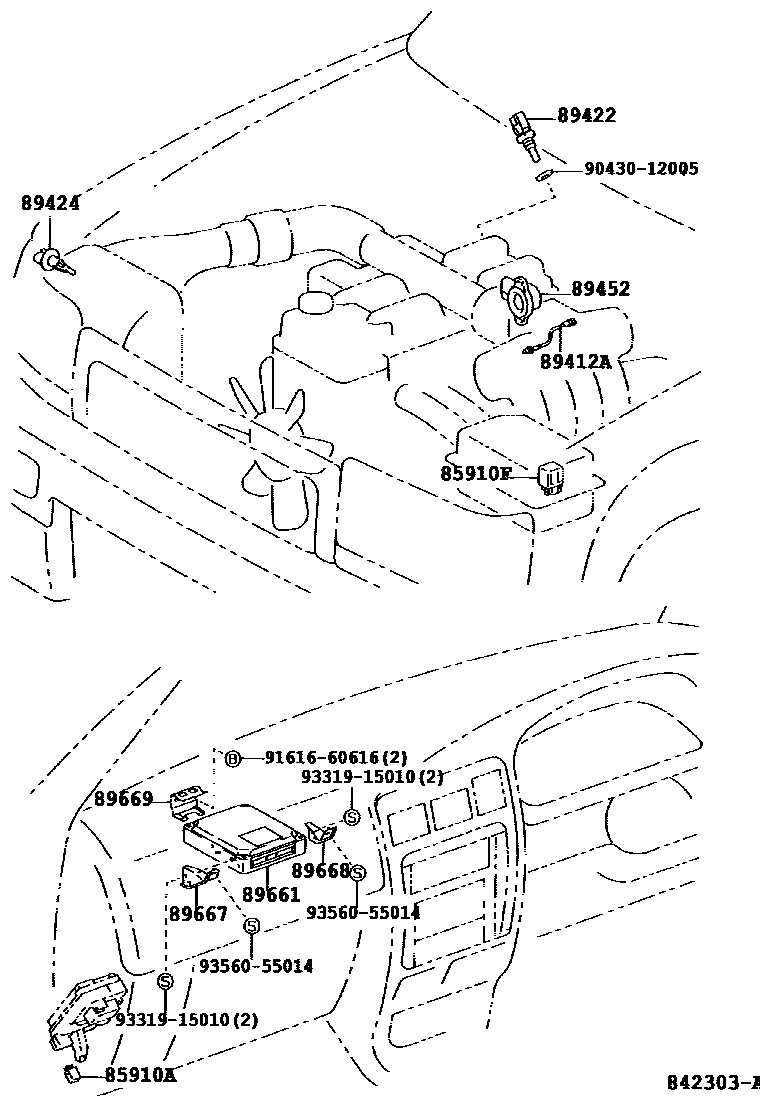

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iRZN18#,VZN18#199511

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iRZN18#,VZN18#199511

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-34010iRZN18#199511

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iRZN18#,VZN18#199511

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iRZN18#199511-200008

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iRZN18#199511-200008

main89452-35020iVZN18#199511-200008

89661COMPUTER, ENGINE CONTROL

main89661-3D130iVZN18#199511-200008

main89661-3D170iRZN185..5F199511-199708

main89661-3D180iRZN185..4FC199511-199708

main89661-3D400iRZN185..5F199708-200008

main89661-3D410iRZN18#..4FC199708-200008

main89661-3D680iRZN180200112

main89661-3D690iRZN185200112

main89666-35400iVZN185200008

main89666-35460iRZN180200008-200112

main89666-35470iRZN185200008-200112

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-35070iRZN18#,VZN18#199511-200008

main89667-35120iRZN18#,VZN185200008

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-35100iRZN18#,VZN18#199511-200008

main89668-35110iRZN185199511-199708

main89668-35150iRZN18#,VZN185200008

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-35050iRZN18#,VZN18#199511-200008

main89669-35060iRZN18#,VZN185200008

9043012005

main90430-12005

9161660616

main91616-60616

9331915010

main93319-15010

9356055014

main93560-55014

14 parts on this diagram · 2 diagrams in section
