METER

0001 1�����-����-�, ����� 0002 1�����-����-�,����� 0003 1�����-����-�, �������� 0004 1�����-����-�,�������� (TYPE A0006 1�����-����-�,�������� (TYPE B0008 1����� & ����(����� ���) 0009 1����� & ����(����� ���) 0010 1����� & ����(�������� ���) 0011 1����� & ����(�������� ���)-(T0013 1����� & ����(�������� ���)-(T0015 1�������-�(��-������) 0016 1���� & ���-���-����

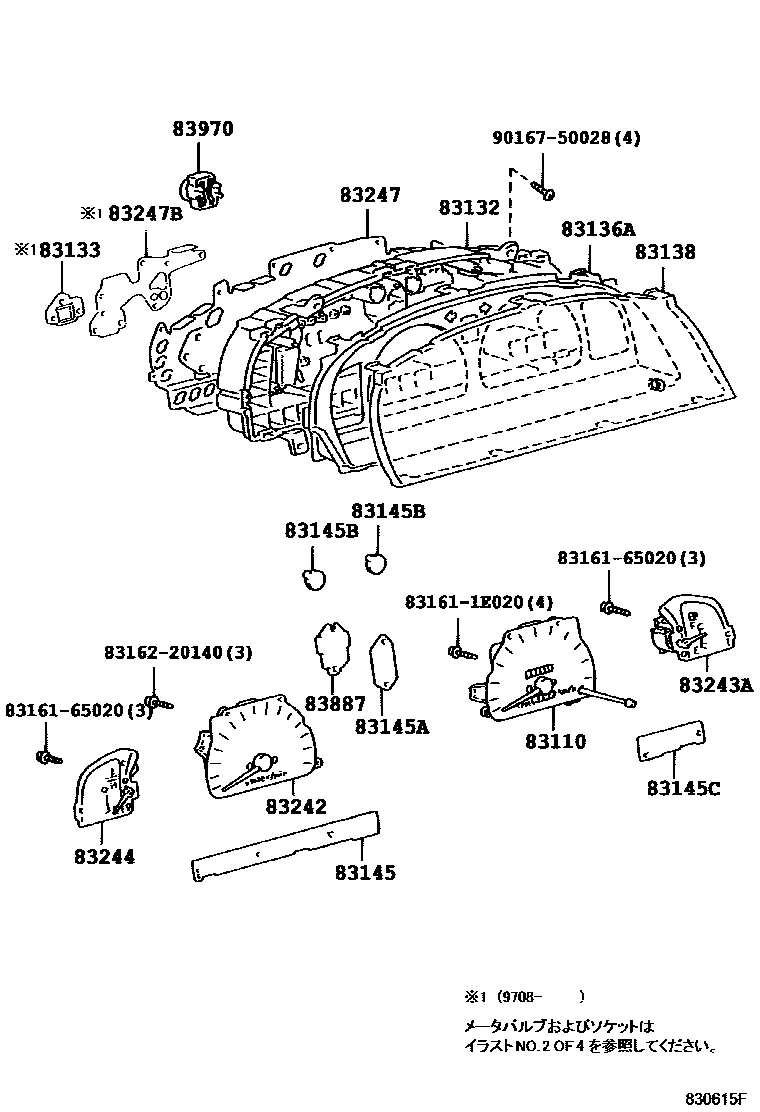

83110SPEEDOMETER ASSY

main83220-35010iRZN185,VZN185..SSR,SSRV,SSRX199511-199807

main83220-35020iKZN185199511-199807

main83220-35410iKDN185,KZN185,RZN18#,VZN185..SSR,SSRV,SSRX199807

main83220-35420iRZN180,VZN180..SPR199807

83132CASE, COMBINATION METER

main83841-35020iKZN185,RZN185,VZN185199511-199708

main83841-35021iRZN185..WIB;RZN185..SSR;KZN185,VZN185..SSR,SSRV,SSRX199708-199807

main83841-35880iRZN185..WIB..SSRX;KZN185,VZN185..SSRG199708-199807

main83841-35880iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main83841-3D200iKDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX199807

main83841-3D370iKDN185,KZN185,RZN185,VZN185..WIB..4FC..(SSRG,SSRX)199807

main83841-3D420iKDN185..WIB..SSRX;RZN185,VZN185..WIB..(SSRG,SSRX)199906-200008

83133PLATE, COMBINATION METER, NO.1

main83811-35031iKZN185,RZN185,VZN185..4FC..(SSRV,SSRX)199708-199807

main83811-35880iRZN185..WIB..SSRX;KZN185,VZN185..SSRG199708-199807

main83811-35880iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main83811-3D370iKZN185,RZN18#,VZN18#..WIB..4FC199807-200008

83136ACOVER, COMBINATION METER

main83851-35020iKZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)199511-199807

main83851-35040iKZN185,VZN185..SSRG199511-199807

main83851-35880iRZN185..WIB..SSRX;KZN185,VZN185..SSRG199708-199807

main83851-35880iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main83851-3D200iKDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX199807

83138GLASS, SPEEDOMETER

main83852-35020iKZN185,RZN185,VZN185199511-199807

main83852-35880iRZN185..WIB..SSRX;KZN185,VZN185..SSRG199708-199807

main83852-35880iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main83852-35880iRZN185..SSRG;KDN185..WIB..(SSRG,SSRX);KZN185,VZN185..WIB..4FC..SSRX199807

main83852-3D200iKDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX199807

main83852-3D420iKDN185..SSRG199906-200008

83145LENS, METER, NO.1

main83831-35020iRZN185,VZN185199511-199708

main83831-35021iRZN185,VZN185..SSR,SSRV,SSRX199708-199807

main83831-35060iKZN185199511-199708

main83831-35061iKZN185..SSR,SSRV,SSRX199708-199807

main83831-35880iKZN185,RZN185,VZN185..WIB..4FC199708-200008

main83831-35880iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main83831-3D200iKDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX199807

83145ALENS, METER, NO.2

main83831-35040iKZN185,VZN185..WIB199511-199708

main83831-35860iKDN185,KZN185,RZN185,VZN185..SSR,SSRV,SSRX199708-199807

main83831-35890iKZN185..SSRX..TDI199710-199807

main83831-35890iKZN185..SSRG199708-199807

main83831-3D370iRZN180,VZN180199906-200008

main83831-3D370iKDN185,KZN185,RZN185,VZN185..WIB..4FC..(SSRG,SSRX)199807

main83832-35880iRZN185..WIB..4FC..SSRX199710-199807

main83832-35880iVZN185..SSRG;RZN185..WIB..SSRX199708-199807

83145BLENS, METER, NO.3

main83832-3D370iKDN185,RZN185,VZN185..WIB..(SSRG,SSRX)199807-200008

main83833-26010iKDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX199511-199708

main83833-35880iKZN185..SSRG;RZN185..WIB..SSRX199708-199807

main83833-35880iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

83145CLENS, METER, NO.4

main83832-35020iKZN185,RZN185,VZN185199511-199807

main83832-3D200iKDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX199807

main83833-35880iVZN185..SSRG199708-199807

main83833-3D370iKZN185,RZN185,VZN185..WIB..4FC199807-200008

main83834-35880iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main83834-35880iRZN185..WIB..SSRX;KZN185,VZN185..SSRG199708-199807

83242TACHOMETER ASSY, ENGINE

main83881-35020iRZN185..WIB..5F199511-199807

main83881-35031iRZN185..4FC199708-199807

main83881-35040iVZN185199511-199708

main83881-35060iKZN185199511-199807

main83881-35081iKZN185..4FC..(SSRV,SSRX)199708-199807

main83881-3D070iVZN185..SSRX199708-199807

main83881-3D200iRZN18#,VZN185..SSR,SSRV,SSRX199807

main83881-3D220iKDN185,KZN185..SSRV,SSRX199807

main83881-3D400iRZN180,VZN180..SPR199807

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-35020iRZN185,VZN185199511-199807

main83882-35060iKZN185..SSR,SSRV,SSRX199511-199807

main83882-35880iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main83882-35880iRZN185..WIB..SSRX;KZN185,VZN185..SSRG199708-199807

main83882-3D200iRZN18#,VZN185..SSR,SSRV,SSRX199807

main83882-3D220iKDN185,KZN185..SSRV,SSRX199807

main83882-3D400iRZN180,VZN180..SPR199807

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-35020iKZN185,RZN185,VZN185199511-199807

main83883-35880iRZN185..WIB..SSRX;KZN185,VZN185..SSRG199708-199807

main83883-35880iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main83883-3D200iKDN185,KZN185,RZN18#,VZN185..SSR,SSRV,SSRX199807

main83883-3D400iRZN180,VZN180..SPR199807

83247PLATE, METER CIRCUIT

main83861-35020iRZN185199511-199708

main83861-35021iRZN185..5F199708-199807

main83861-35031iRZN185..4FC199708-199807

main83861-35040iVZN185199511-199708

main83861-35060iKZN185..SSR,SSRV,SSRX199511-199708

main83861-35061iKZN185..5F199708-199807

main83861-35081iKZN185..4FC..TDE199708-199807

main83861-35090iKZN185..WIB..(SSRV,SSRX)199511-199708

main83861-35091iKZN185..WIB..5F199708-199807

main83861-35271iKZN185..WIB..4FC..(SSRV,SSRX)199708-199807

main83861-35860iRZN185..WIB..5F199708-199807

main83861-35870iRZN185,VZN185..WIB..4FC..(SSRV,SSRX)199708-199807

main83861-35880iRZN185..WIB..4FC..SSRX199710-199807

main83861-35880iVZN185..SSRG;RZN185..WIB..4FC..SSRX199708-199807

main83861-35890iKZN185..SSRG199708-199807

main83861-35890iKZN185..SSRX..TDI199710-199807

main83861-3D030iRZN185..WIB..4FC..SSRX199708-199807

main83861-3D050iRZN185..5F..SSRX199708-199807

main83861-3D060iRZN185..5F..SSRX199708-199807

main83861-3D210iRZN185,VZN185..4FC..(SSRV,SSRX)199807

main83861-3D230iKDN185,KZN185..4FC..(SSRV,SSRX)199807

main83861-3D390iRZN185..WIB..4FC199807-199904

sub83861-3D391

main83861-3D391iRZN185..WIB..4FC199904-200008

main83861-3D400iRZN180,VZN180..SPR199807

main83861-3D440iRZN185..WIB..4FC199906-200008

main83861-3D490iVZN180199906-200008

main83861-3D500iRZN180199906-200008

main83861-3D540iRZN185..WIB..SSRX200008

main83861-3D620iRZN185..WIB..(SSRG,SSRX)200008

main83861-3D730iRZN180..SSRV200008

main83862-3D220iKZN185..5F199807-200008

main83862-3D370iVZN185199807-199904

sub83862-3D371

main83862-3D371iVZN185199904

main83862-3D380iKZN185..WIB..4FC199807-199904

sub83862-3D381

main83862-3D381iKDN185,KZN185..WIB..4FC..(SSRG,SSRX)199904

main83862-3D420iVZN185199906

main83862-3D430iKZN185..WIB..4FC;KDN185..WIB..SSRX199906

main83862-3D430iKDN185..SSRG200008

main83864-3D200iRZN185..5F199807-200008

83247BPLATE, METER CIRCUIT, NO.2

main83861-3D040iRZN185..WIB..4FC..SSRX199710-199807

main83861-3D040iRZN185..WIB..SSRX199708-199807

main83861-3D200iKDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX199807

main83861-3D370iRZN185,VZN185..WIB..4FC..(SSRG,SSRX)199807

main83861-3D380iKDN185,KZN185..WIB..4FC..(SSRG,SSRX)199807

main83861-3D420iRZN185,VZN185..WIB..(SSRG,SSRX)199906-200008

main83861-3D430iKDN185..SSRG200008

main83861-3D430iKZN185..WIB..4FC;KDN185..WIB..SSRX199906

main83862-35031iKZN185,RZN185,VZN185..4FC..(SSRV,SSRX)199708-199807

main83862-35890iKZN185..SSRG199708-199807

main83862-35890iKZN185..SSRX..TDI199710-199807

main83862-3D030iRZN185..WIB..SSRX199708-199807

main83863-35880iVZN185..SSRG199708-199807

83887PLATE, COMBINATION METER PRISM, NO.1

main83887-35040iKZN185,VZN185..WIB199511-199708

main83887-35860iKZN185..WIB..4FC..(SSRV,SSRX);RZN185,VZN185..WIB..(SSRV,SSRX)199708-200008

main83887-35860iKDN185,KZN185,RZN185,VZN185..4FC..(SSRV,SSRX)199807

main83887-3D210iRZN180,VZN180199807

83970BUZZER ASSY, REVERSE WARNING

main83970-12020iKZN185,RZN185,VZN185..4FC199511-199807

main83970-12020iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

831611E020CASE, COMBINATION METER MIRROR, NO.1

main83161-1E020

8316165020CASE, COMBINATION METER MIRROR, NO.1

main83161-65020

8316220140CASE, COMBINATION METER MIRROR, NO.2

main83162-20140

9016750028

main90167-50028

20 parts on this diagram · 12 diagrams in section
