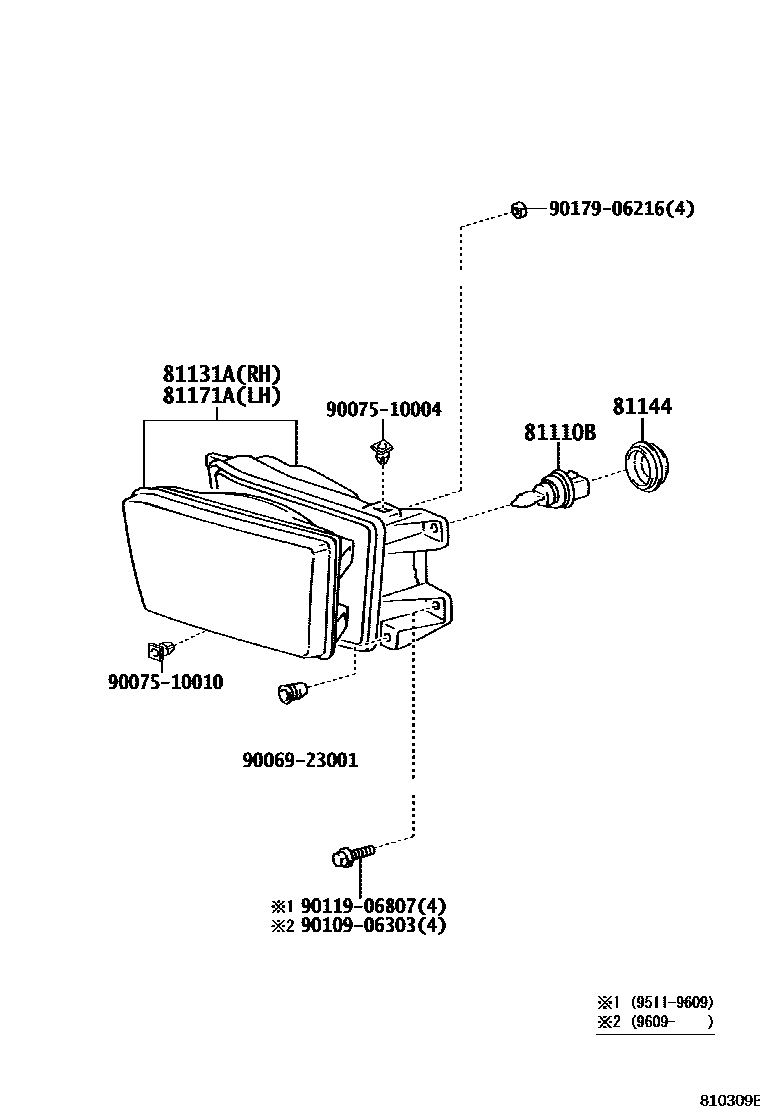

HEADLAMP

0001 1 0002 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004×2iKDN185,KZN185,RZN18#,VZN18#199511

sub90981-13055

81131AUNIT, HEADLAMP, RH

main81130-35240iKZN185,RZN185,VZN185199511-199609

main81130-35241iKZN185,RZN185,VZN185199609-199807

main81130-35330iKDN185,KZN185,RZN18#,VZN18#199807

81144COVER, HEADLAMP, NO.1

main90075-65002×2iKDN185,KZN185,RZN18#,VZN18#199511

81171AUNIT, HEADLAMP, LH

main81170-35220iKZN185,RZN185,VZN185199511-199609

main81170-35221iKZN185,RZN185,VZN185199609-199807

main81170-35310iKDN185,KZN185,RZN18#,VZN18#199807

9006923001

main90069-23001

9007510004

main90075-10004

9007510010

main90075-10010

9010906303

main90109-06303

9011906807

main90119-06807

9017906216

main90179-06216

10 parts on this diagram · 2 diagrams in section
