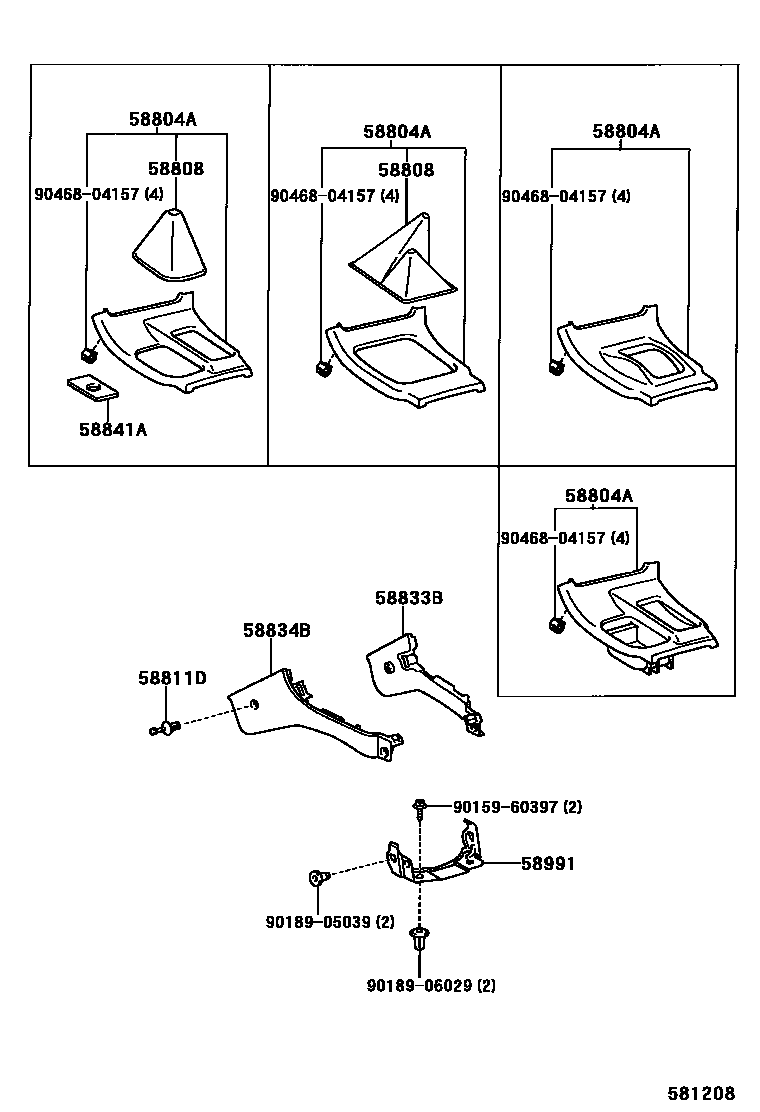

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-35100iKZN185,RZN185..5F..(SSR,SSRV,SSRX)199511-200008

main58804-35110iKZN185,VZN185..4FC..SSRG199511-199708

main58804-35120iKZN185,RZN185..5F..SSRX199708-200008

main58804-35130iKZN185,VZN185..4FC..SSRG199511-199708

main58804-35160iRZN180,VZN180199807-200008

main58804-35170iKZN185,RZN185..WIB..4FC..SSRX..(EFI,TDI)199710-199807

main58804-35180iRZN180,VZN180199807-200008

main58804-35190iKZN185,RZN185..4FC..SSRV199801-199807

main58804-35240iRZN180..SSRV200008

main58804-35250iKDN185,RZN185..WIB..SSRX200112

main58804-35260iRZN180..SPR200008

main58804-35310iRZN180..SSRV200104-200111

main58804-35320iRZN185..SSRV200112-200210

main58804-35330iRZN180..SSRV200112

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-35120iKZN185,RZN185..5F199511-200008

main58808-35150iKDN185,KZN185,RZN185,VZN185..4FC199511

58811DCLIP(FOR CONSOLE BOX)

main90467-07041-B5×2iKZN185,RZN18#,VZN18#199511-200008

MD.MOON MIST,TRIM1#

main90467-07041-B7×2iKDN185,RZN18#,VZN185200008

DK.CHARCOAL,TRIM1#

main90467-07041-E0×2iKZN185,RZN185,VZN185..SSRG,SSRV,SSRX199708-199807

OAK,TRIM4#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-35020-B0iKZN185,RZN18#,VZN18#199511-200008

MD.MOON MIST,TRIM1#

main58833-35020-B1iKDN185,RZN18#,VZN185200008

DK.CHARCOAL,TRIM1#

main58833-35020-E0iKZN185,RZN185,VZN185..SSRG,SSRV,SSRX199708-199807

OAK,TRIM4#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-35020-B0iKZN185,RZN18#,VZN18#199511-200008

MD.MOON MIST,TRIM1#

main58834-35020-B1iKDN185,RZN18#,VZN185200008

DK.CHARCOAL,TRIM1#

main58834-35020-E0iKZN185,RZN185,VZN185..SSRG,SSRV,SSRX199708-199807

OAK,TRIM4#

58841ACOVER, SHIFTING HOLE

main58841-35010iKDN185,KZN185,RZN185,VZN185..4FC199511

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-35030iRZN180,VZN180;KZN185,RZN185..5F199511-200008

9015960397

main90159-60397

9018905039

main90189-05039

9018906029

main90189-06029

9046804157

main90468-04157

11 parts on this diagram · 3 diagrams in section
