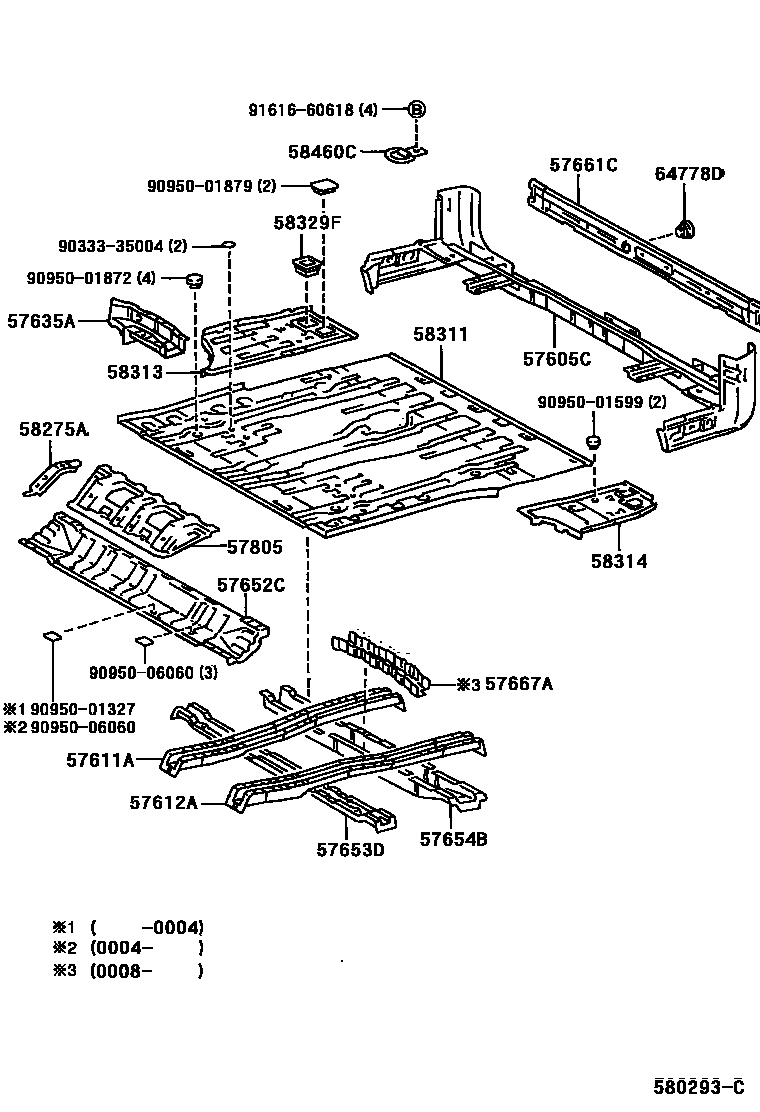

REAR FLOOR PANEL & REAR FLOOR MEMBER

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-35030iKZN185..5F;KZN185..NOB;RZN18#,VZN180..SPR,SSRG199807-199906

main57605-35040iKZN185,RZN185..(SSR,SSRV,SSRX)..(EFI,TDE)199511-199807

main57605-35090iKZN185..WIB..5F..TDE;KZN185,VZN185..WIB..4FC;RZN185..WIB..(SSRV,SSRX)199511-200211

main57605-35100iKZN185,RZN185,VZN185..WIB199511-199708

main57605-35220iKDN185,KZN185,RZN18#,VZN18#199906-200211

main57605-35230iKDN185,KZN185,RZN18#,VZN18#..WIB199906-200211

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-35010iKDN185,KZN185,RZN18#,VZN18#199511

57612AMEMBER, REAR FLOOR SIDE, LH

main57612-35010iKZN185,RZN18#,VZN18#199511-200004

main57612-35011iKDN185,KZN185,RZN18#,VZN18#200004

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57635-35010iKDN185,KZN185,RZN18#,VZN18#199511

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-35010iKZN185,RZN18#,VZN18#199511-200004

sub90950-06060

main57652-35011iKDN185,KZN185,RZN18#,VZN18#200004

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-35030iKZN185,RZN18#,VZN18#199511-200004

main57653-35031iKZN185,RZN18#,VZN18#200004-200008

main57653-35100iKDN185,RZN18#,VZN185200008

57654BMEMBER, REAR FLOOR CROSS, NO.3

main57654-35010iKZN185,RZN18#,VZN18#199511-200008

main57654-35030iKDN185,RZN18#,VZN185200008

57661CMEMBER, REAR FLOOR REAR CROSS, OUTER

main57661-35010iKZN185..5F..TDE;RZN185..SSR,SSRV,SSRX;KZN185..NOB..SSRX..TDE;KZN185,VZN185..WIB..4FC199511

main57661-35020iKZN185..5F;RZN185..SSRG;KDN185,RZN180..WIB..(SSRG,SSRV,SSRX)199807

57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4

main57667-35010iKDN185,RZN18#,VZN185200008

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-35010iKZN185,RZN185,VZN185199511-199803

main57805-35011iKDN185,KZN185,RZN18#,VZN18#199803

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-35010×2iKDN185,KZN185,RZN18#,VZN18#199511

58311PAN, REAR FLOOR

main58311-35040iKDN185,KZN185,RZN18#,VZN18#199511

58313PANEL, REAR FLOOR SIDE, RH

main58313-35010iKDN185,KZN185,RZN18#,VZN18#199511

58314PANEL, REAR FLOOR SIDE, LH

main58314-35010iKDN185,KZN185,RZN18#,VZN18#199511

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-35010×2iKDN185,KZN185,RZN18#,VZN18#199511

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-35010×4iKZN185,RZN185,VZN185199511-199512

main58460-35011×4iKZN185,RZN18#,VZN18#199512-199902

main58460-35012×4iKDN185,KZN185,RZN18#,VZN18#199902

64778DPROTECTOR, SPARE WHEEL

main64778-35010iKDN185,KZN185,RZN18#,VZN18#199511

9033335004

main90333-35004

9095001327

main90950-01327

9095001599

main90950-01599

9095001872

main90950-01872

9095001879

main90950-01879

9095006060

main90950-06060

9161660618

main91616-60618

24 parts on this diagram · 1 diagram in section
