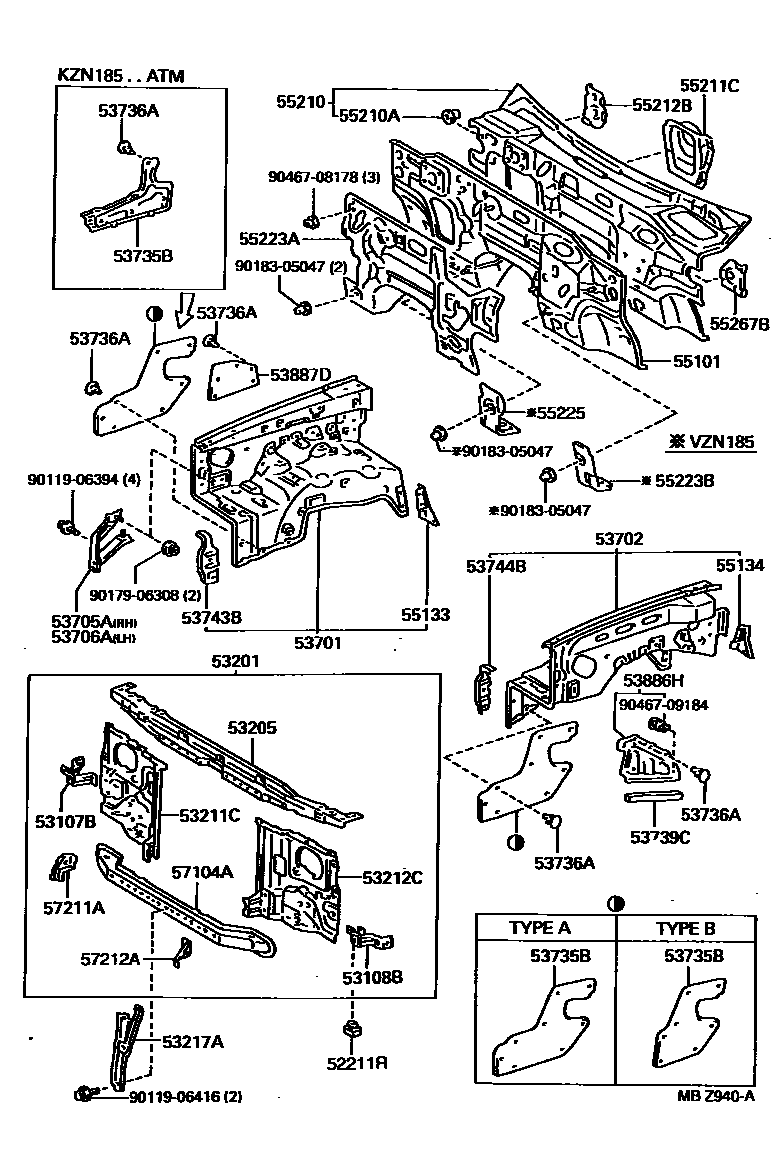

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

52211RCUSHION, BODY MOUNTING, NO.1

main52211-35010iKDN185,KZN185,RZN18#,VZN18#199511

53107BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH

main53107-35020iKDN185,KZN185,RZN18#,VZN18#199511

53108BBRACKET SUB-ASSY, RADIATOR GRILLE, LOWER LH

main53108-35020iKDN185,KZN185,RZN18#,VZN18#199511

53201SUPPORT SUB-ASSY, RADIATOR

main53201-35100iKDN185,KZN185,RZN18#,VZN18#199511

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-35010iKZN185,RZN185,VZN185199511-199708

main53205-35011iKDN185,KZN185,RZN18#,VZN18#199708

53211CSUPPORT, RADIATOR, RH

main53202-35090iKDN185,KZN185,RZN18#,VZN18#199511

53212CSUPPORT, RADIATOR, LH

main53203-35100iKDN185,KZN185,RZN18#,VZN18#199511

53217ABRACE, HOOD LOCK SUPPORT

main53217-35020iKDN185,KZN185,RZN18#,VZN18#199511

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-35430iKZN185..SSR,SSRV,SSRX199511-199708

sub53701-35450

main53701-35450iKZN185199511-199801

sub53701-35451

main53701-35451iKZN185199801-199805

sub53701-35452

main53701-35452iKZN185199805-199807

main53701-35500iVZN185199511-199801

sub53701-35501

main53701-35501iRZN185,VZN185199801-199805

sub53701-35502

main53701-35502iRZN185,VZN185199805-199807

main53701-35510iVZN185199511-199708

main53701-35540iRZN185199511-199708

sub53701-35541

sub88716-6A721

main53701-35580iKZN185..SSR,SSRV,SSRX199511-199708

sub53701-35590

main53701-35590iKZN185..SSR,SSRV,SSRX199511-199801

sub53701-35591

main53701-35591iKZN185..SSR,SSRV,SSRX199801-199805

sub53701-35592

main53701-35592iKDN185;KZN185..5F;KZN185..NOB;KZN185..SSRG199807

main53701-35592iKZN185..TDE;KZN185..WIB..4FC..SSRX..TDI199805-200008

main53701-3D070iRZN18#,VZN18#199807

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-35520iKZN185199511-199807

sub53702-35841

main53702-35540iRZN185,VZN185199511-199807

sub53702-35851

main53702-35580iKZN185..SSR,SSRV,SSRX199511-199807

sub53702-35841

main53702-35840iKZN185199807-200005

sub53702-35841

main53702-35841iKZN185200005-200008

main53702-35850iRZN18#,VZN18#199807-200005

sub53702-35851

main53702-35851iRZN18#,VZN18#200005-200008

main53702-3D390iKDN185200008

main53702-3D410iRZN18#,VZN185200008

53705ABRACE SUB-ASSY, FENDER APRON, RH

main53705-35030iKZN185,RZN185,VZN185199511-199807

main53705-35060iKDN185,KZN185,RZN18#,VZN18#199807

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-35030iKZN185,RZN185,VZN185199511-199807

main53706-35060iKDN185,KZN185,RZN18#,VZN18#199807

53735BSEAL, FRONT FENDER APRON, UPPER

main53735-35020iKZN185..5F..(SSR,SSRV,SSRX);RZN185,VZN185..SSR,SSRV,SSRX199511-199807

main53735-35030iVZN185;KZN185..5F..SSRG199511-199807

main53783-35010iKZN185,RZN18#,VZN180..SPR,SSR,SSRX199807-200004

sub53783-35011

main53783-35010iKZN185..4FC..(SSRV,SSRX)199511-199807

sub53783-35011

main53783-35011iKDN185,KZN185,RZN18#,VZN18#..SPR,SSR,SSRV,SSRX200004

main53783-35020iKZN185..NOB..SSRX..TDE;KZN185..WIB..4FC..(SSRV,SSRX)199511-200004

sub53783-35021

main53783-35020iKZN185,RZN185,VZN185..SSRG199511-200004

sub53783-35021

main53783-35021iKDN185,KZN185,RZN18#,VZN18#200004

main53784-35010iKZN185,RZN18#,VZN18#199511-200004

sub53784-35011

main53784-35011iKDN185,KZN185,RZN18#,VZN18#200004

53736ACLIP(FOR FRONT FENDER APRON SEAL)

main90467-10186iKZN185..5F;RZN185,VZN185199511-199807

main90467-10186iKDN185,KZN185,RZN18#,VZN18#199807

53739CSEAL, FRONT FENDER APRON TO FRAME, REAR

main53739-35010iKZN185,RZN185,VZN185199511-199807

sub53739-35011

main53739-35011iKDN185,KZN185,RZN18#,VZN18#199807

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-35010iKDN185,KZN185,RZN18#,VZN18#199511

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-35010iKDN185,KZN185,RZN18#,VZN18#199511

53886HSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-35010iKZN185,RZN185,VZN185199511-199604

sub53886-60010

main53886-60010iKZN185,RZN185,VZN185199604-199804

sub53886-60011

main53886-60011iKZN185,RZN18#,VZN18#199804-199906

sub53886-60012

main53886-60012iKZN185,RZN18#,VZN18#199906-200004

sub53886-60013

main53886-60013iKDN185,KZN185,RZN18#,VZN18#200004

53887DSEAL, FRONT FENDER SPLASH SHIELD, NO.1

main53887-35010iKZN185,RZN185,VZN185199511-199807

55101PANEL SUB-ASSY, DASH

main55101-35929iRZN185..5F199511-200008

main55101-35931iKZN185,RZN185..4FC..(EFI,TDE)199511

main55101-35932iRZN180,VZN18#199511

sub55101-35929

sub90333-20001

sub90333-40001

main55101-35933iKZN185..TDI199607-199807

main55101-35951iKZN185..5F199807-200008

main55101-35952iKDN185,KZN185..4FC199807

main55101-3D901iKZN185..5F199511-199807

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-35010iKDN185,KZN185,RZN18#,VZN18#199511

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-35010iKDN185,KZN185,RZN18#,VZN18#199511

55210INSULATOR ASSY, DASH PANEL

main55210-35150iKZN185,RZN185,VZN185199511-199807

sub55210-35151

main55210-35151iKZN185,RZN18#,VZN18#199807-199901

sub55210-35152

main55210-35152iKZN185,RZN18#,VZN18#199901-200008

main55210-35153iKDN185,RZN18#,VZN185200008

55210ACLIP

main90467-13035iKDN185,KZN185,RZN18#,VZN18#199511

55211CCOVER, DASH PANEL INSULATOR

main55211-35020iKZN185,RZN18#,VZN18#199511-199902

sub55211-35021

main55211-35021iKDN185,KZN185,RZN18#,VZN18#199902

55212BCOVER, DASH PANEL INSULATOR, NO.2

main55212-35010iKZN185,RZN185,VZN185199511-199807

sub55212-35020

main55212-35020iKDN185,KZN185,RZN18#,VZN18#199807

55223AINSULATOR, DASH PANEL, OUTER

main55223-35010iKZN185199511-199807

sub55223-35011

main55223-35011iKZN185,RZN18#,VZN18#199807-200004

sub55223-35012

main55223-35012iKDN185,KZN185,RZN18#,VZN18#200004

55223BINSULATOR, DASH PANEL HEAT, NO.1

main55224-35010iVZN185199511-199807

main55224-35020iVZN18#199807

main55225-35120iVZN18#199807

55225INSULATOR, DASH PANEL HEAT

main55225-35060iRZN185,VZN185199511-199807

55267BCOVER, DASH PANEL INSULATOR, NO.3

main55267-35010iKDN185,KZN185,RZN18#,VZN18#199511

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-35030iKDN185,KZN185,RZN18#,VZN18#199511

57211ABRACKET, BODY MOUNTING, NO.1 RH

main57211-35010iKDN185,KZN185,RZN18#,VZN18#199511

57212ABRACKET, BODY MOUNTING, NO.1 LH

main57212-35030iKDN185,KZN185,RZN18#,VZN18#199511

9011906394

main90119-06394

9011906416

main90119-06416

9017906308

main90179-06308

9018305047

main90183-05047

9046708178

main90467-08178

9046709184

main90467-09184

39 parts on this diagram · 2 diagrams in section
